9.3 Buttons and display of the iControl

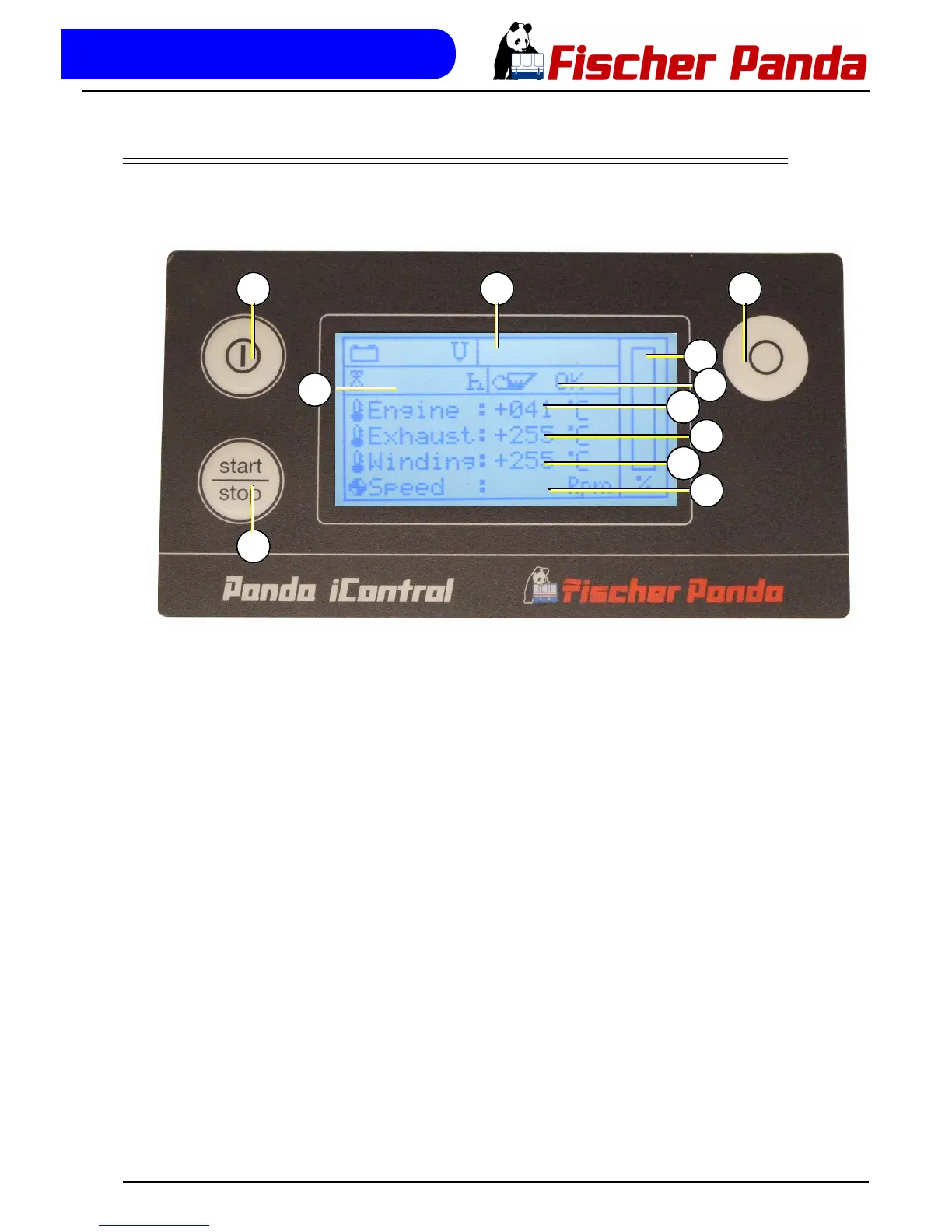

Fig. 9.3-1: Buttons and diplay of the iControl
2
4
1 3
2a
2b
2d
2c
2e
2f
2g
1. Button „on/off“
2. Display
2a. Load indication in %
2b. Oil pressure indication „OK“ oder „Fault“
2c. Engine temp. indication
2d. Exhaust elbow temp. indication
2e. Stator Winding temp. indication
2f. Engine rpm indication
2g. Operation hours
3. Button „enter“
4. Button „start/stop“
