4.2.5 View from Above

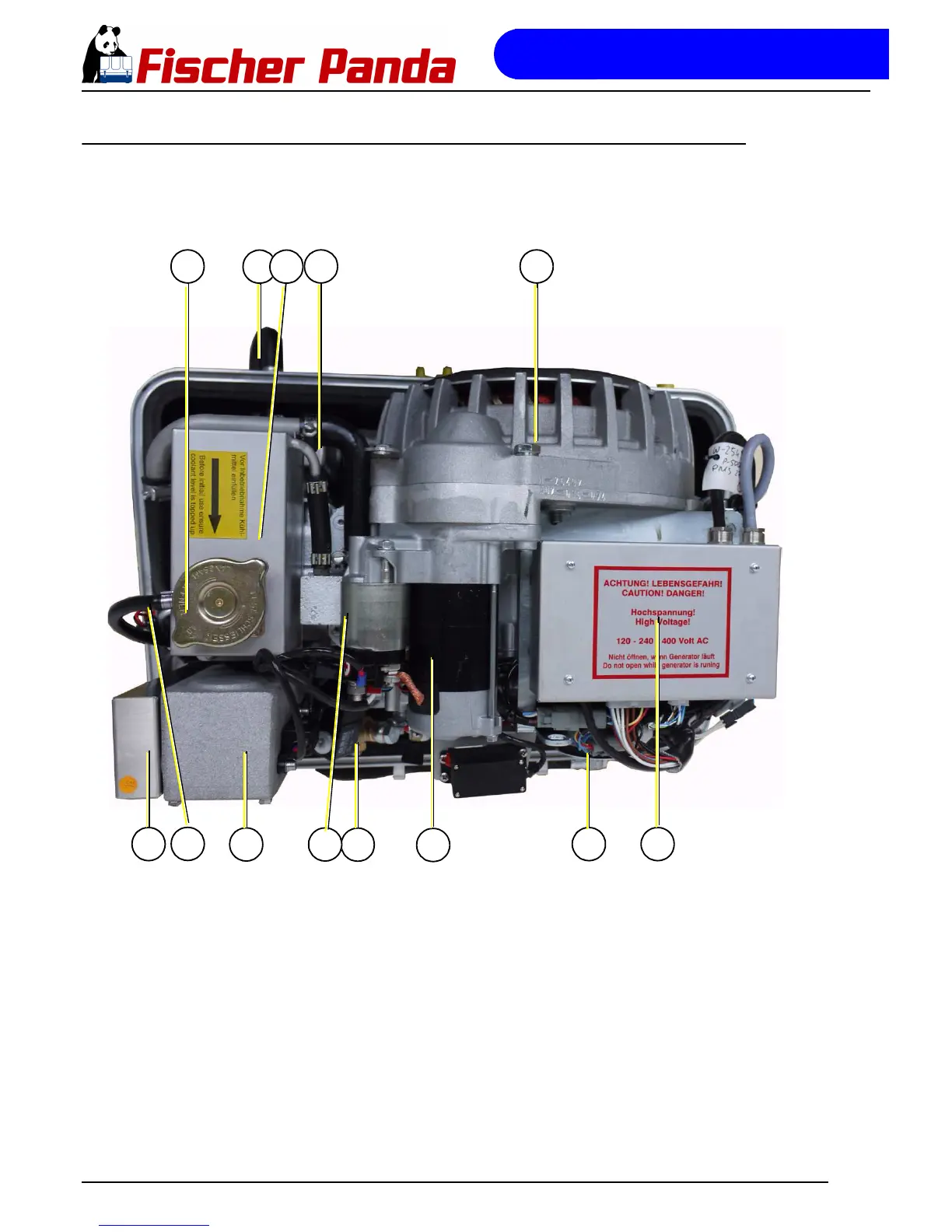

Fig. 4.2.5-1: Top side view
01
13 07 06
04 05
02
11
09
08
10
03
12
01) Cooling water filler neck
02) Connection external ventilation valve
03) Cooling water tank
04) Exhaust out (through capsul bottem)
05) Generator housing with coil
06) iControl electronic board under cover „DO NOT OPEN“
07) Pulley
08) Starter motor
09) Fuel solenoid valve
10) Solenoid switch for starter motor
11) Air suction housing with air filter inlet
12) Coolant overflow hose
13) Suction port
