Fischer Panda 5000i PMS - Panda Transport Box Procedures

Basics
Seite/Page 30 Panda_5000i_PMS_eng.R01 - Kapitel/Chapter 3: Basics 9.12.10
3.2 Panda Transport Box
3.2.1 Bolted Fischer Panda Transport Box
1. Remove the bolts for cover / sidewalls
2. Remove the cover
3. Remove the loose accessories
4. Remove the bolts for sidewalls / floor pallet
5. Remove the sidewalls
6. Open the generator attachment
3.2.2 Fischer Panda Transport Box with metal tab closure
1. Bend up the metal tab closures on the transport box lid.
2. Remove the cover
3. Remove the loose accessories
4. Bend open the metal tab closures on the transport box bottom.
5. Remove the sidewalls
6. Open the generator attachment
3.2.3 Opening the MPL sound insulation capsule .

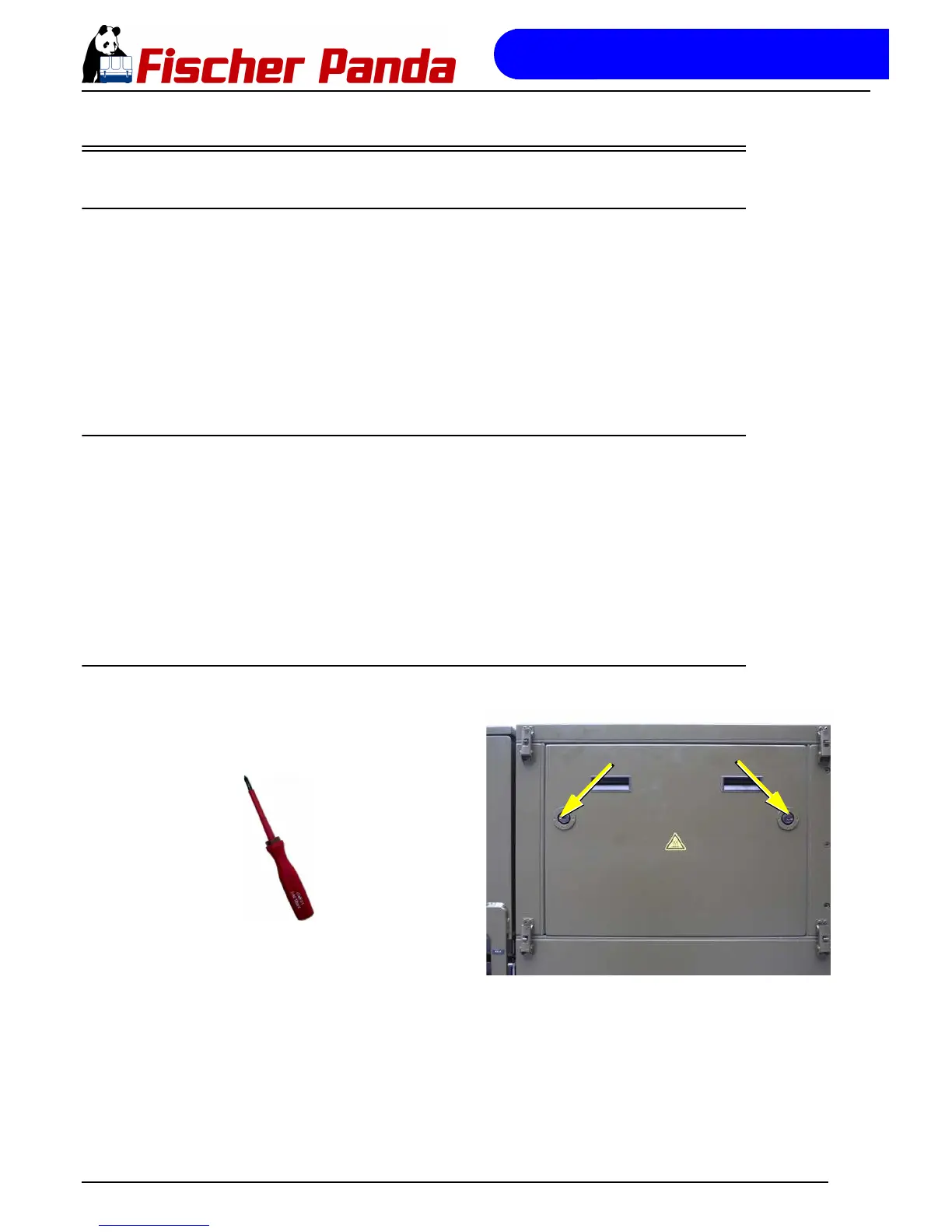

Fig. 3.2-1: Sound insulation capsule, side part To open the sound insulation capsule, the closures must
be rotated roughly 180° counter-clockwise. Use a fl at
head screwdriver. Pull the sidewalls out by gripping into
the slots.
