Installation Instructions

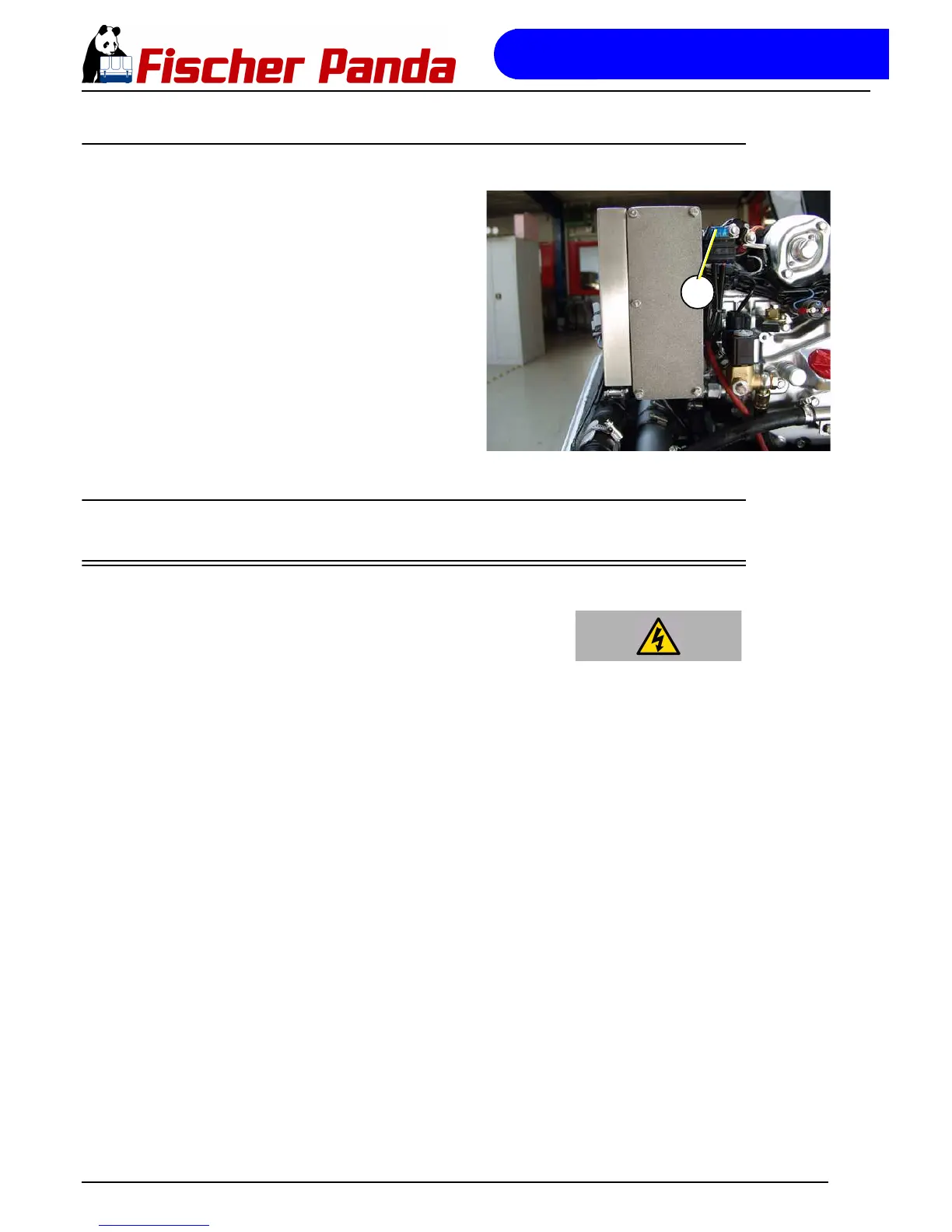

Seite/Page 76 Panda_5000i_PMS_eng.R01 - Kapitel/Chapter 5: Installation Instructions 9.12.10
5.8.3 Fuse
Fig. 5.8.3-1: Terminal block AGT 5000 12V
F1: Fuse 30 A for DC system
5.8.4 Installation of the iControl panel - See iControl Manual
5.9 Generator AC System Installation
ATTENTION! Before the electrical system is installed, READ the
SAFETY INSTRUCTIONS of this manual FIRST! Be sure
that all electrical installations (including all safety
systems) comply with all required regulations of the
regional authorities. This includes lightening conductor,
personal protection switch etc.
All electrical safety installations have to be made on board.
Required cable cross-sections
The following recommended electrical cable dimensions
(cross sections) are the minimum required sizes for a
safe installation (see “Cable cross section” on
Page 105).
