Fischer Panda 5000i PMS - Generator Description and Views; Generator Right Side View

Panda 5000i PMS generator
Seite/Page 40 Panda_5000i_PMS_eng.R01 - Kapitel/Chapter 4: Panda 5000i PMS generator 9.12.10
4.2 Description of the Generator
4.2.1 Right Side View

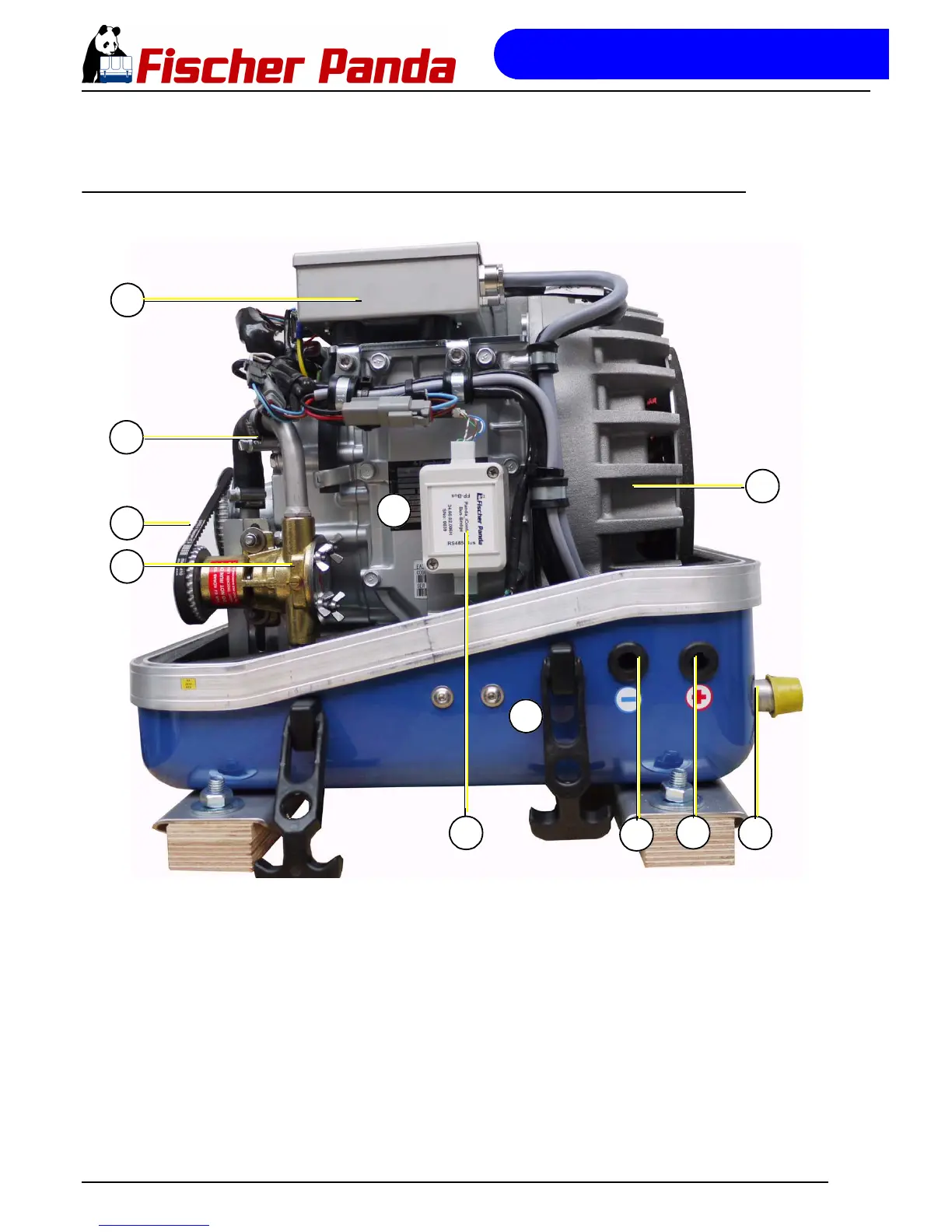

Fig. 4.2.1-1: Right side view
01
03
04
06
10
05 09
11
08
07
02
01) Housing with iControl electronic board (DO NOT OPEN)
02) Coolant pipe, raw water pump - heat exchanger
03) Toothed belt
04) Raw water pump
05) Bus adapter RS485 to FP bus - optional
06) Sound cover base part
07) Passage for battery cable (+)
08) Passage for batterie cable (-)
09) Raw water inlet
10) Engine Kubota EA300
11) Generator housing with coil
