Remote control panel Panda iControl

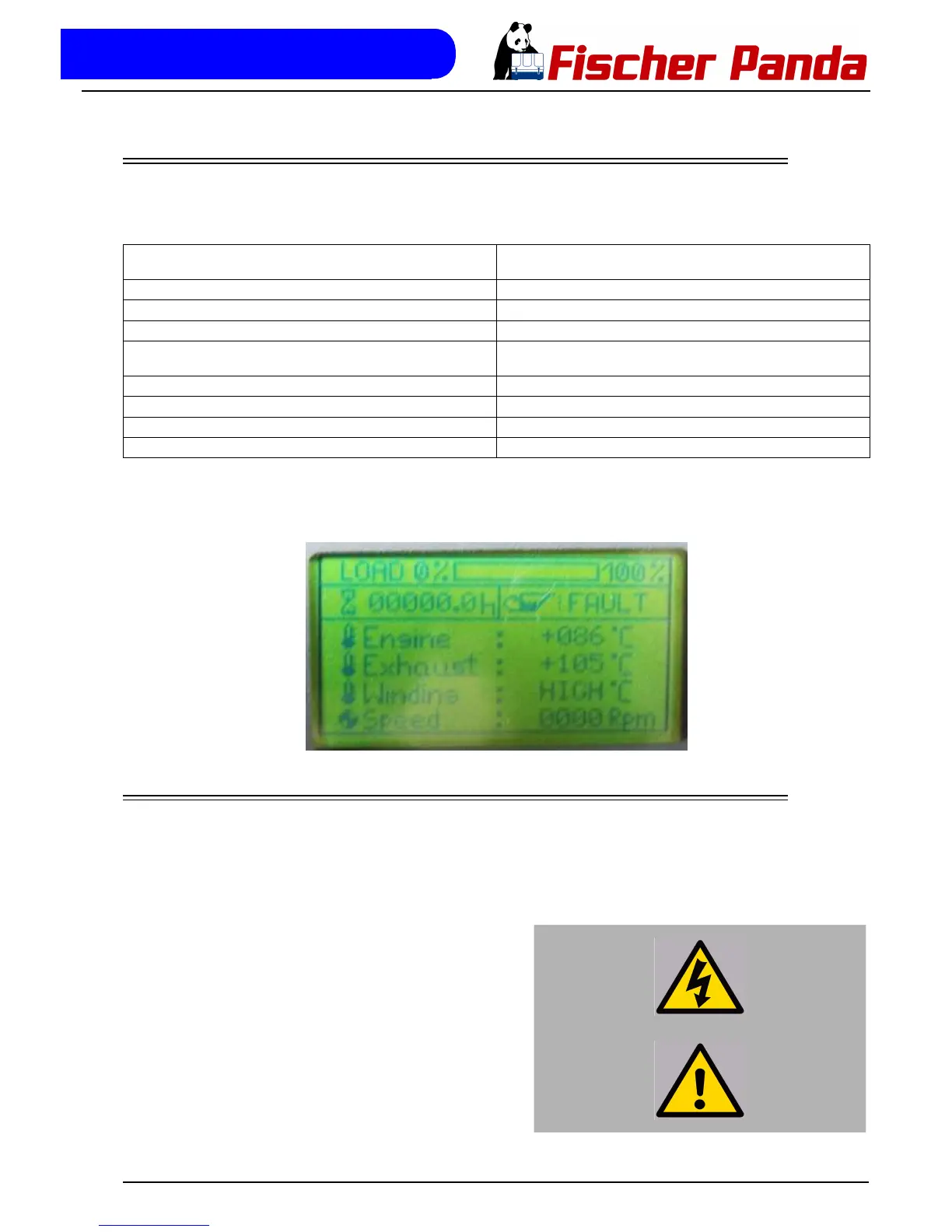

Panel_iControl_eng_modi.fm Kapitel 9: Remote control panel Panda iControl - Seite 119
Fischer Panda Datenblatt / Datasheet
9.7 Errors
The least 5 errors are stored in the electronic memory and can be read out by the service technican..
Push the „enter“ button to quitt errors which has stopped the generator
Example for an error display after the generator was stopped.
(Oil Pressure failed)
Fig. 9.7-1: Display warning (oil pressure failed) - example
9.8 Electronic board
The iControl panel has an electronic board which is mounted at the Generator. This board controls all generator
functions.
The bord is in a box and contains self healing fuses and relais.
Attention:!: DANGER TO LIFE
For safety reasons it is not allowed to open the box of the elec-
tronic board. Inside there are up to450VAC. !!!DANGER TO
LIFE.
Only special trained persons are allowed to change the board
in case of an error.
Unexpected stop Generator stops during operation or RPM droped under 1100 RPM (Fuel
low, overload ect.)
Fault: Oilpress Oilpressure to low
Fault: Winding Winding temp. over 135°C
Fault: Exhaust Exhaust tem over> 75°C (PMS version) or>100°C(vehicl es versions)
Fault: Cyl. Head Cylinder head temp. over >90°C (PMS version) or >95 °C (vehicles ver-
sions)
Starting Fail Generator do not start after 10 sec.
Inverter failure Overtemp Inverter to hot
Inverter failure Overload To much load
Inverter failure Undervoltage Inverter output voltage to low
