Attention!: Consider correct connection
sequence
It must be guaranteed that first the cables are attached at the
generator and then at the battery.
Attention!: Right connection of the battery.
Battery connection
Wrong connection of the battery bank can cause a short-cir-
cuit and fire.
Install an appropriate fuse and a battery circuit breaker in the plus pole cable of the batterie, but with a distance to
the battery of up to 300 mm (12 inch) at maximum.
The cable from the battery to the safety device must be secured with protective pipe/sleeve against chafing through.
For the connection use self-extinguishing and fire-protected cables, which are appropriate for temperatures up to 90
°C, 195 °F.
The batteries must be layed in such a way that they do not chafe through or other mechanical load can be stripped.
The battery poles must be secured against unintentional short-circuit.
The positive battery cable within the generator must be shifted in such a way that it is protected against heat and
vibrations by appropriate sleeve/protective pipe. It must be shifted in such a way that it does not affect rotary parts or
parts, that become hot in operation, e.g. wheel, exhaust elbow union, tail pipe and the engine. Do not lay the cable
too tautly, since otherwise it could be damaged.
Make a test run after the installation and check the laying of the batteries during the test run and afterwards. If
necessary, correct the laying.
Examine regularly the cable layings and the electrical connections.
5.8.2 Connection of the DC starter battery

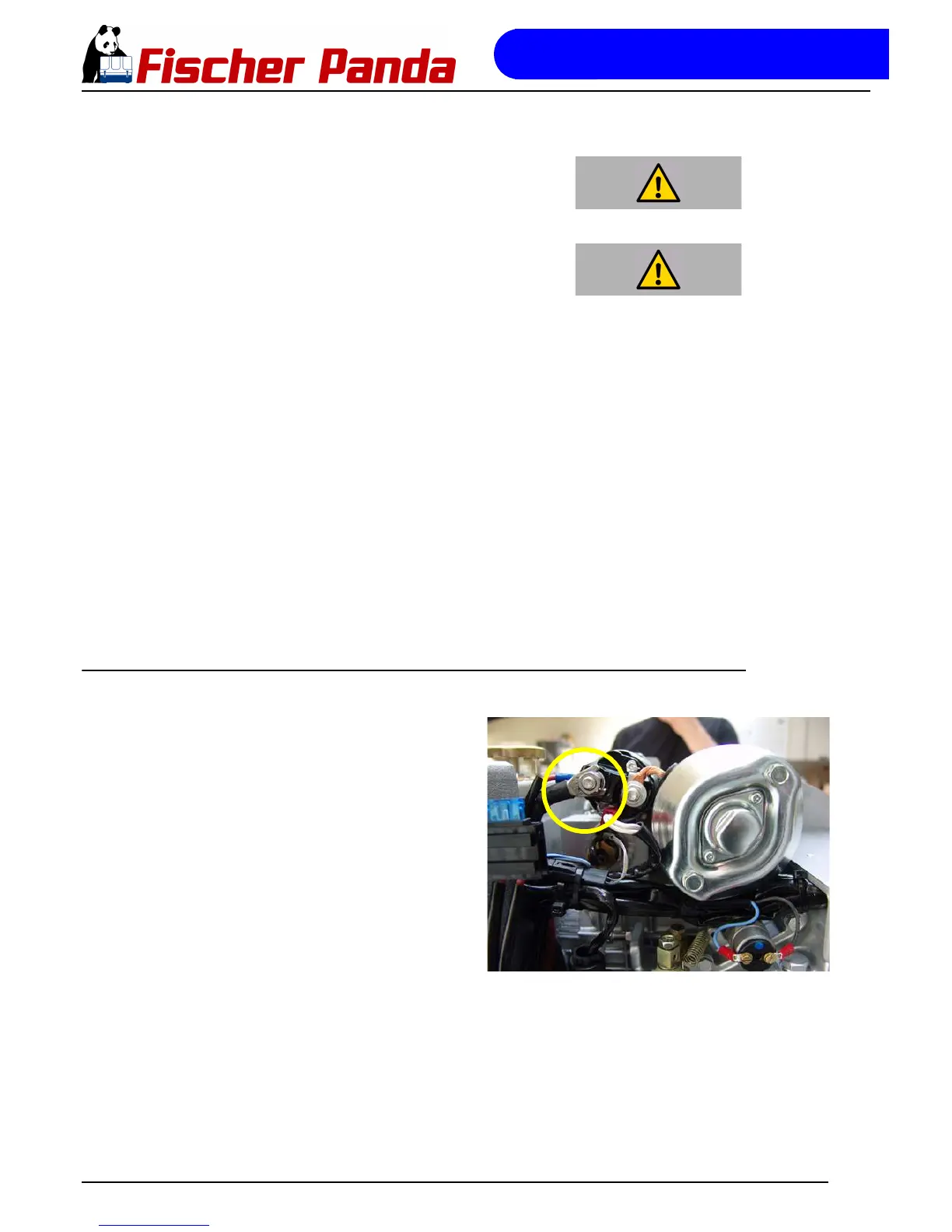

Fig. 5.8.2-1: Connection starter battery
The positive (+) battery cable is connected direcly to the
solenoid switch of the starter motor.
