Basics
Seite/Page 32 Panda_5000i_PMS_eng.R01 - Kapitel/Chapter 3: Basics 9.12.10

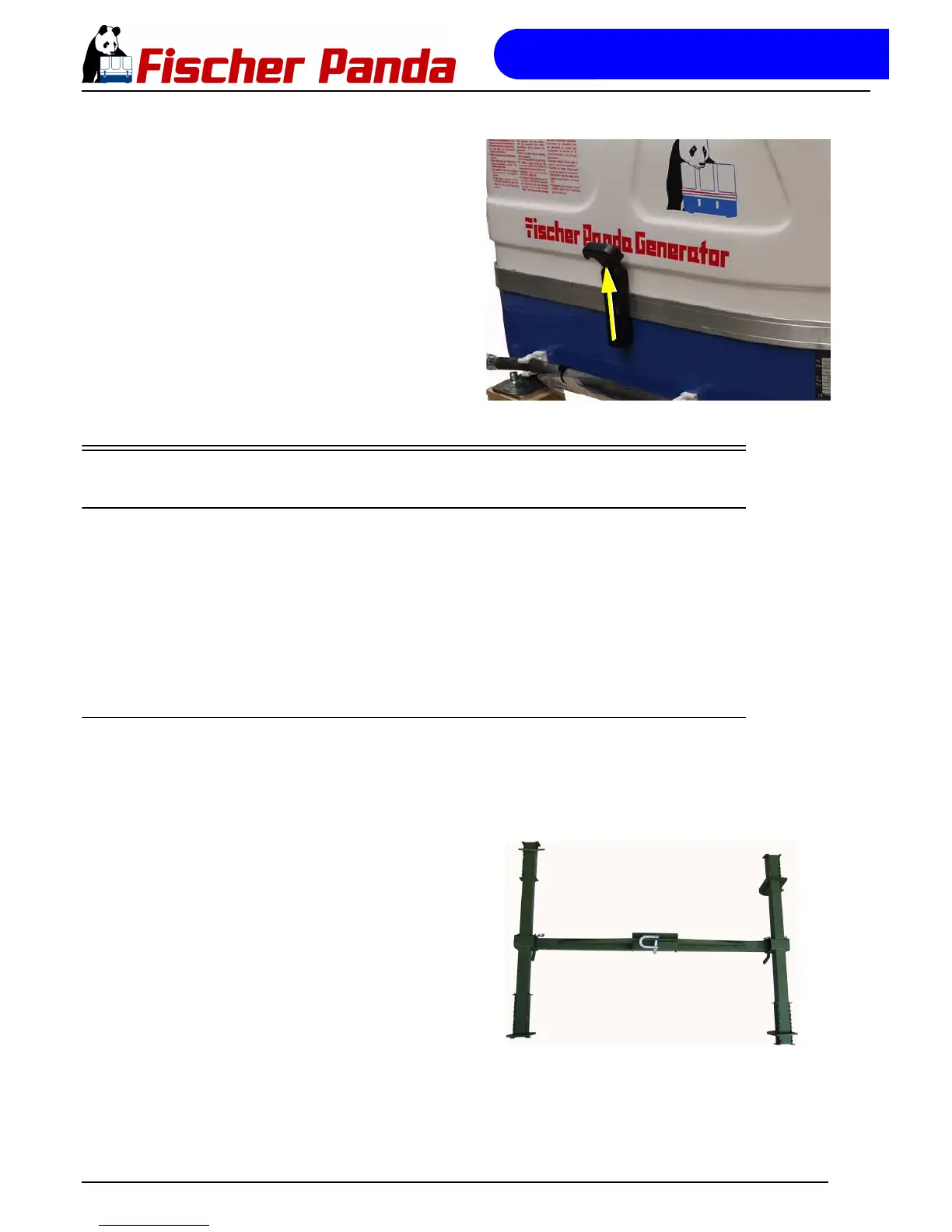

Fig. 3.2-2: Lash closures
To open the lash closures pull the handle in arrow direc-
tion and lift the lash of the closure pin. After lifting of the
lashes, the sound isolation cover upper pars can be
removed.
3.3 Transport and Loading/Unloading
3.3.1 Transporting the generator
- The generator must always be upright for transport.
- For transport, the Fischer Panda Transport Box shall be used for the generator. The generator shall be securely
attached to the bottom of the box.
- For loading/unloading, an adequate industrial truck shall be used.
- Depending on the transport distance (e.g. air cargo), the generator fluids (coolant, engine oil, fuel) may have to be
drained. The corresponding instructions and warnings must be fitted to the transport packaging.
3.3.2 Loading/unloading of the generator
For loading/unloading the generator, appropriate ring eye bolts shall be installed in the holes in the support rails. The
load bearing capacity of each ring eye bolt must at least equal the generator weight.
Fig. 3.3-1: Lifting yoke (example)
An adequate lifting yoke shall be used for transport/
loading
