9.9 Technical data
9.9.1 Intended use
The Panda iControl is a part of the Panda i-series generator. It is not allowed to use the iControl at other generators
or applications.
The iControl must be connected with the electronic board at the generator.
Attention!
See also the safety instructions in the generator and the PMGi
manual. The rules of the respective regional authority must be
adhered to. Only an electrician may carry out installation of the
electrical connections for safety reasons.
9.10 Bus adapter RS485 to FP bus - optional
To use the iControl panel at the Generators with Fischer Panda bus system, an adapter is needed.
The adapter will be connectet between the icontrol panel and the generator.
The panel must be connected to the RS485 connector at the Bus adapter, the generator must be connected to the
FB bus side of the Bus adapter.

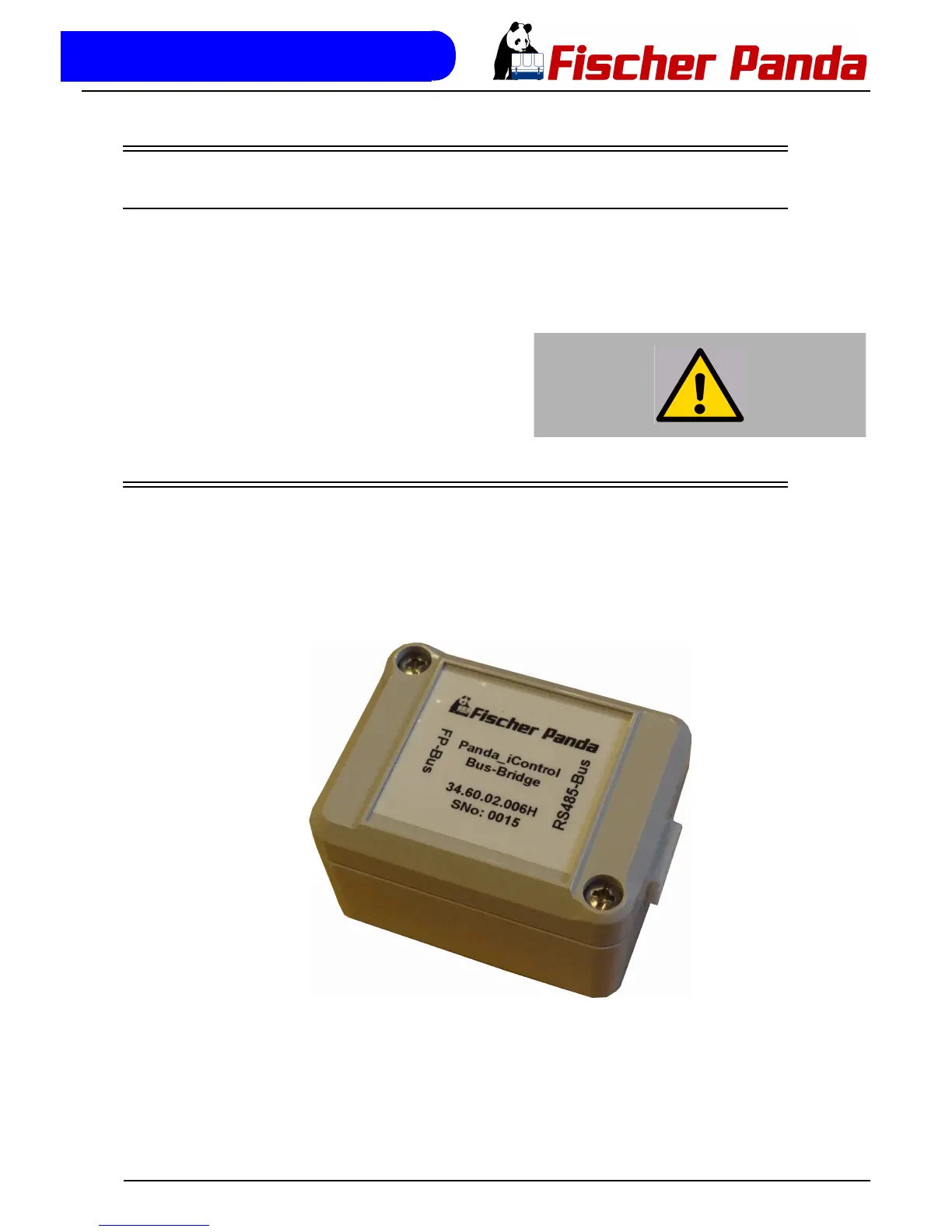

Fig. 9.10.0-1:
.
Bus adaptert
