Installation Instructions
9.12.10 Panda_5000i_PMS_eng.R01 - Kapitel/Chapter 5: Installation Instructions Seite/Page 69

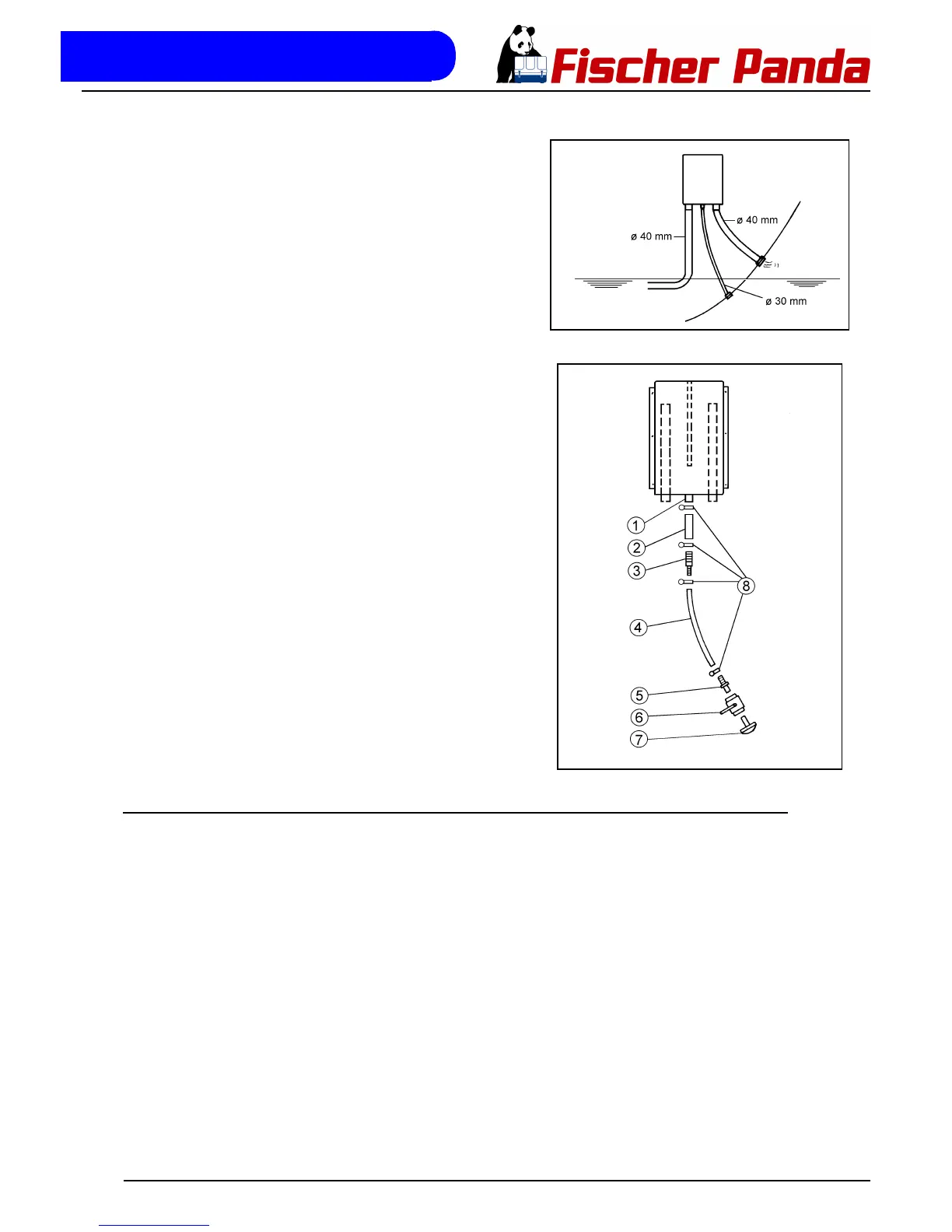

Fig. 5.6.6-1: Exhaust/water separator
The water flow on the exhaust/water separator unit has an
inner diameter (ID) of 30 mm. If the path from the water sepa-
rator to the sea water outlet is very short, the hose can be fur-
ther reduced to 1" (25 mm) ID.
Fig. 5.6.6-2: Exhaust/water separator
1. Raw water outlet ø 30 mm
2. Hose connection ø 30 mm
3. Reducer 30/20 mm (if required)
4. Hose for hull inlet
5. Hose connector
6. Sea cock
7. Hull outlet
Hose clamps
5.6.7 Installation exhaust/water separator
If the exhaust/water separator was sufficiently highly installed, a goose neck is no longer necessary. The exhaust/
water separator fulfills the same function. If the "Supersilent" exhaust system were installed correctly, the generator
will not disturb your boat neighbour. The exhaust noise should be nearly inaudible. The best result is reached, if the
hose line, which derive the cooling water, is relocate on a short way "falling" directly to the outlet and this outlet is
under the waterline.
