Fischer Panda 5000i PMS - Generator Left Side View

Panda 5000i PMS generator
9.12.10 Panda_5000i_PMS_eng.R01 - Kapitel/Chapter 4: Panda 5000i PMS generator Seite/Page 41
4.2.2 Left Side View

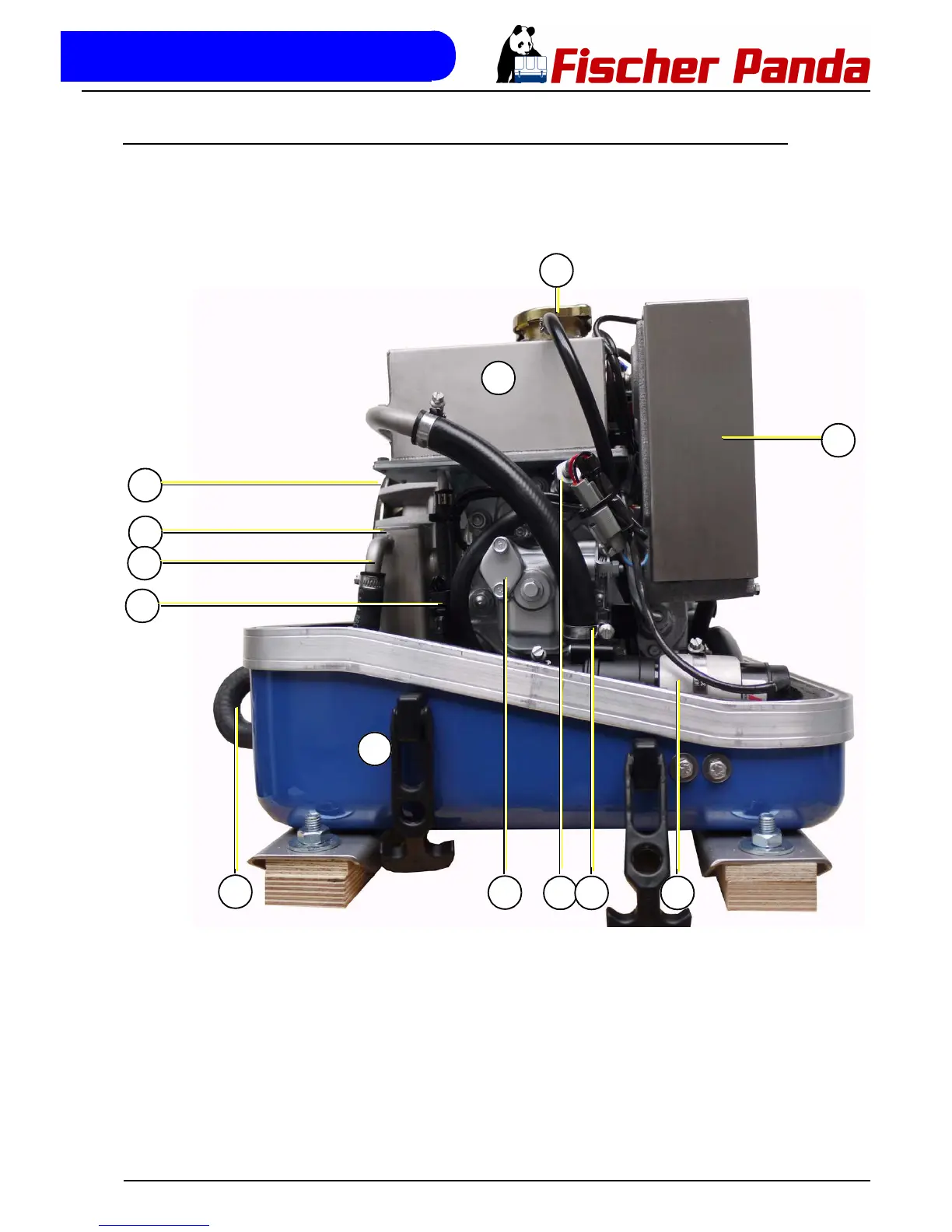

Fig. 4.2.2-1: Left side view
01
12
06
05
11
13
02
04
03
07
08 1009
01) Generator housing with coil
02) Water-cooled exhaust elbow
03) Raw water injection pipe
04) Coolant pipe, water tank - heat exchanger
05) Connection external ventilation valve
06) Sound cover base part
07) Engine Kubota EA300
08) Injection nozzle
09) Coolant pipe, water pump - engine
10) Coolant water pump
11) Suction port at air suction housing
12) Cooling water tank
13) Cooling water filler neck
