Fischer Panda 5000i PMS - Freshwater Cooling Circuit Setup

Installation Instructions
Seite/Page 58 Panda_5000i_PMS_eng.R01 - Kapitel/Chapter 5: Installation Instructions 9.12.10

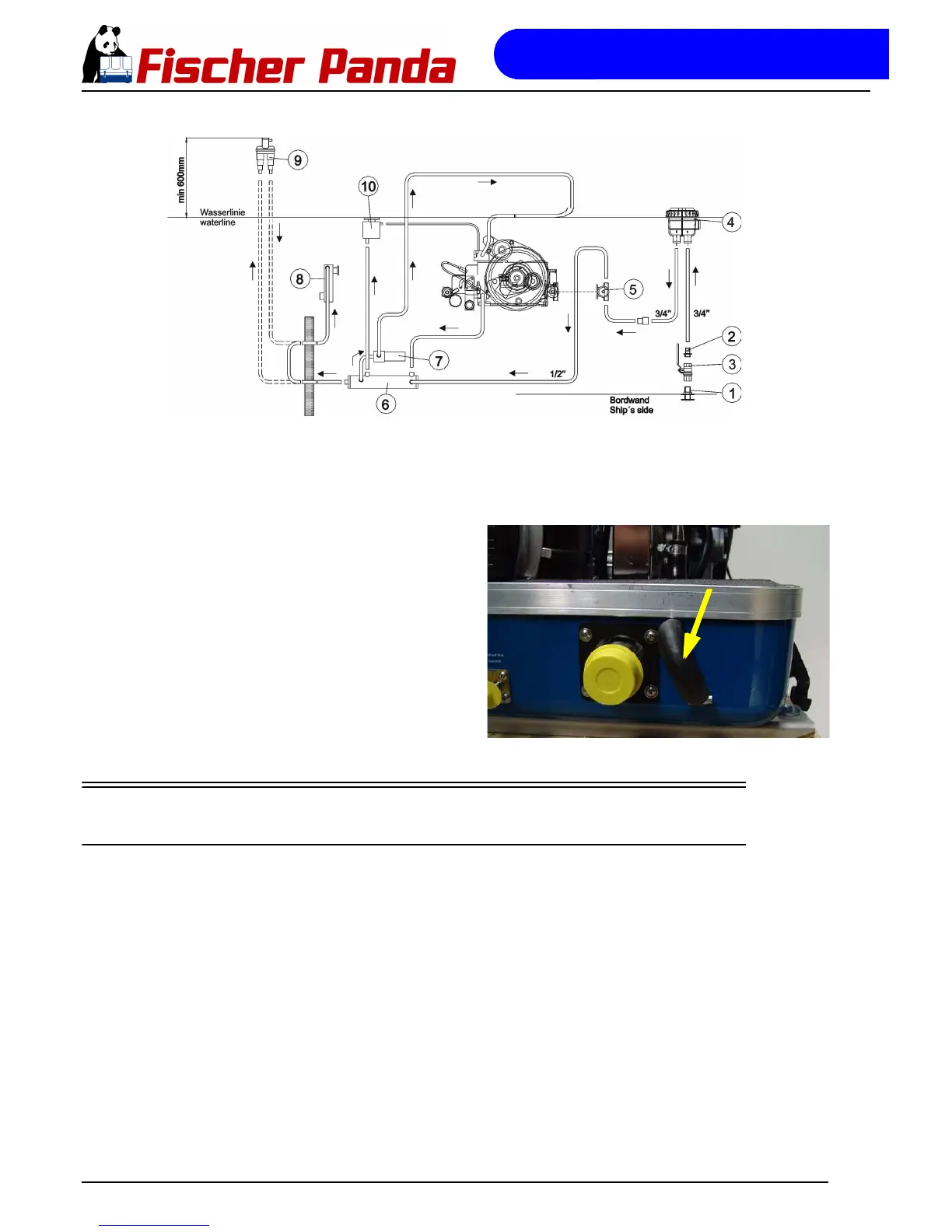

Fig. 5.4.5-2: Installation example
Fig. 5.4.5-3: Tube bend for ventilation valve The tube bend must be removed. Now the two ends are
extended in each case with a hose and attached at a value of
approx. 600 mm over the waterline with a ventilation valve.
5.5 The Freshwater - Coolant Circuit
5.5.1 De-aerating at the first filling of the internal cooling water circuit
1. For the preparation of filling the following steps are to
be undertaken:
a. Open the cooling water cap on the cooling water tank.
1) Hull inlet
2) Reducer
3) Water cock
4) Raw water filter
5) Raw water pump
6) Heat exchanger
7) Electric water pump
8) Raw water injection into exhaust
9) External ventilation valve
10) Water tank
