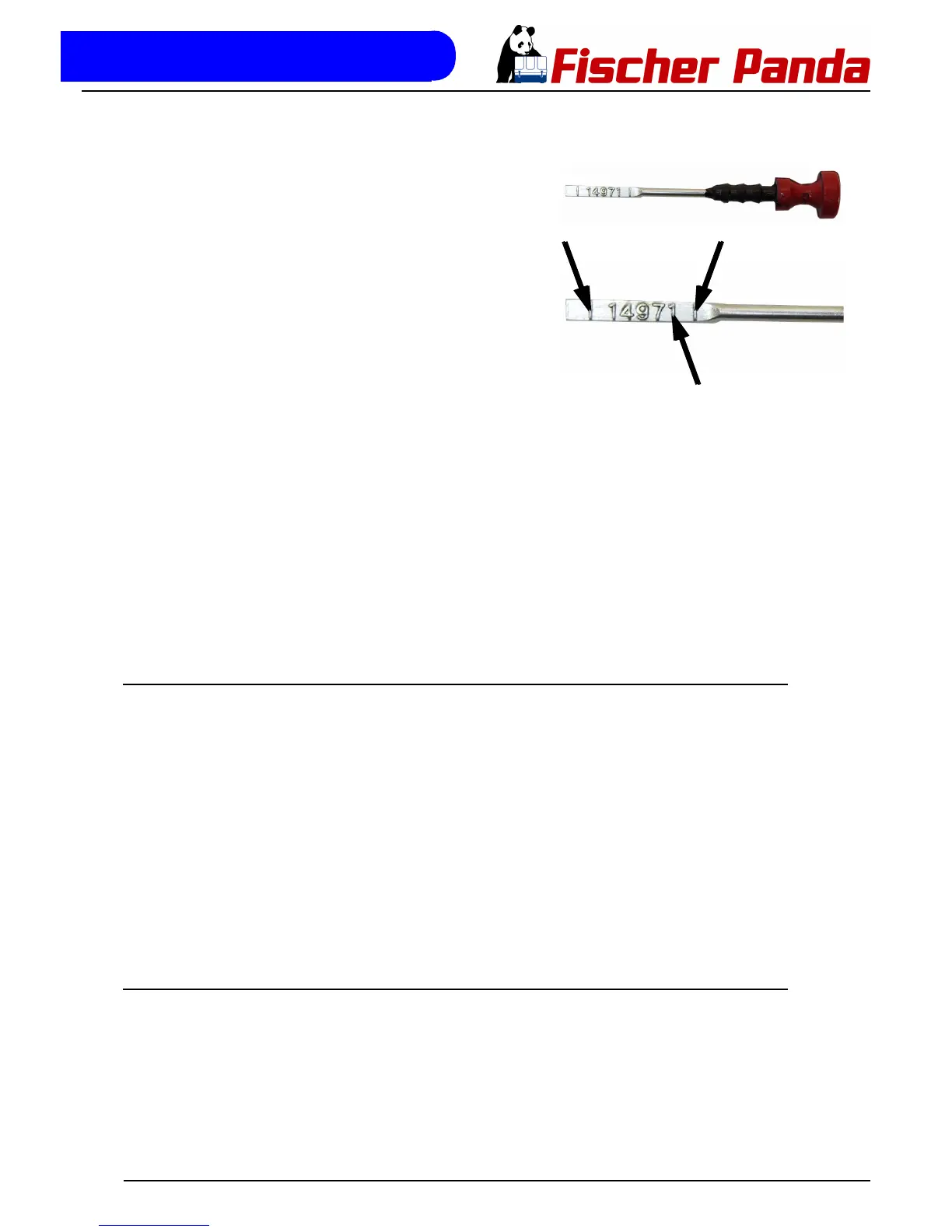

Fig. 6.5-2: Samplepicture Oildipstick
Oildipstick EA 300 Engine
The oil-level is to be checked by means of the oildipstick. The
prescribed filling level must not cross the „Max“-mark.
We recommend an oil-level of 2/3.
Sample picture
Oil should be refilled, if the oil-level is under 1/3 between the minimum and the maximum mark.
Fischer Panda recommends an oil-level of 2/3 between the minimum and the maximum mark.
If the oil-level is under the MIN-mark, check how many operating hours went by since the last oil change, by means
of your service manual or an existing oil change tag. - with operating hours between 50 and 150 hours it is only
necessary to refill oil. See „Refilling oil“ on page 2.
- with 150 operating hours or more the oil should be changed (See your generators’ service table)
- if the oil-level is under the minimum mark by less than 50h, there might be a technical problem!
In that case, we recommend going to a shop or a Fischer Panda servicepoint.
- if the oil is cloudy or even „creamy“, coolant might have mixed with the oil. See a garage or a Fischer Panda ser-
vicepint immediately.
6.5.2 Refilling Oil
You require:
Engine oil
1. Check oil-level as described under „Checking oil-level“ on page 1.
2. Oildipstick is pulled out of the check rail.
3. Open the oil filler cap.
4. Fill in oil (approx. 1/2 liter) and wait for about 2 min. so this it can flow into the oil pan.
5. Wipe off the oildipstick and put it into the check rail.
6. Pull the oildipstick out of the checkrail and check the oil-level. See „Checking oil-level“ on page 1.
If oil-level is still too low (under 2/3): repeat steps 4-6.
6.5.3 After the oil level check and refilling the oil
- Put the oildipstick back into the check rail.
- Close the oil filling cap.
- Remove potential oil stains and splashs from the generator and surroundings.
- Close the generator casing.
- Remove lock against accidental generator start.
