Fischer Panda 5000i PMS - PMGi 5000 Inverter Socket Pinouts

Inverter Panda PMGi 5000
PGMi 5000_eng.fm Kapitel 10: Inverter Panda PMGi 5000 - Seite 127
Fischer Panda Datenblatt / Datasheet

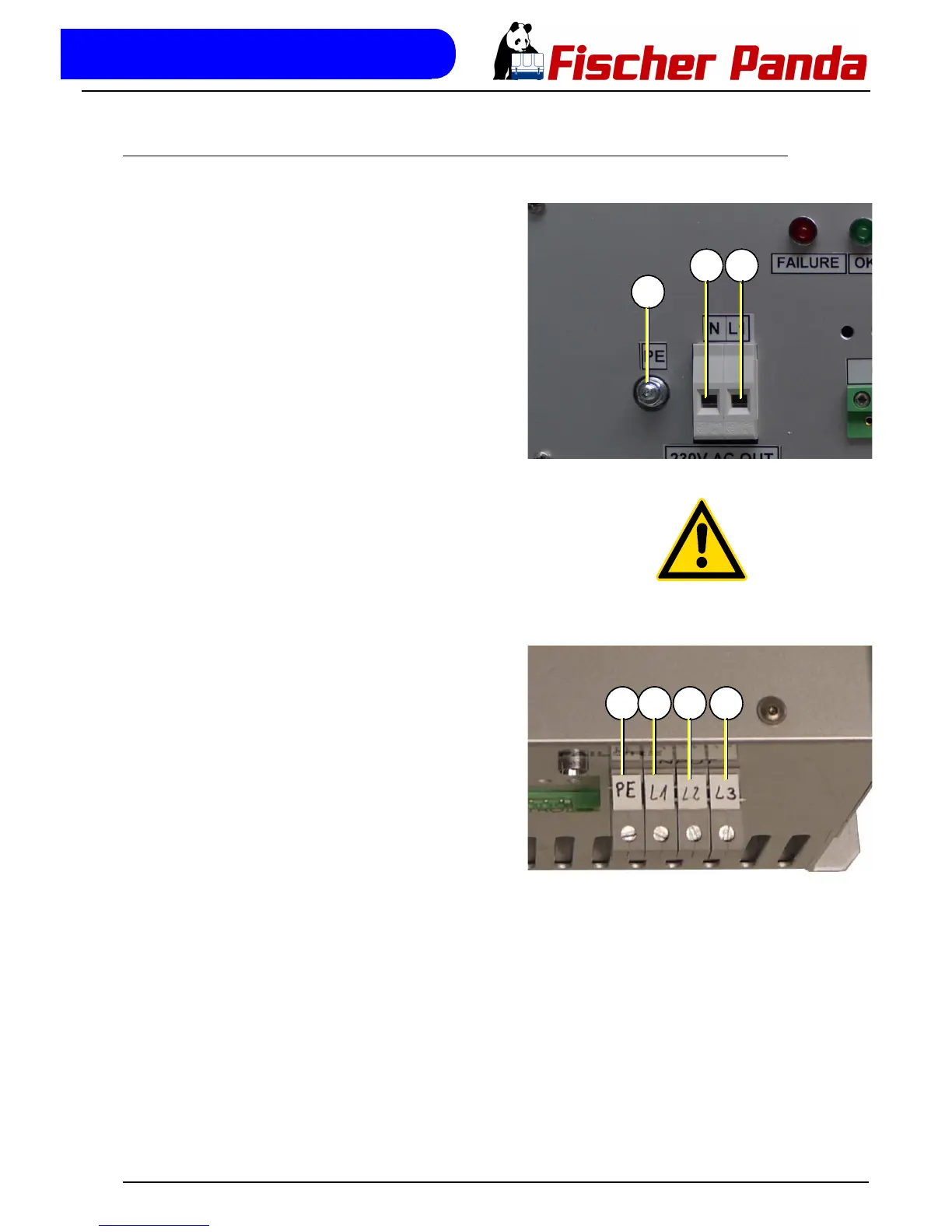

10.3.1 Socket pins of the PMGi 5000
Fig. 10.3-1: Socket 1 Socket 1 - 230V / 50Hz AC - PMGi out
1. Ground (cabel green/yellow)
2. Live (cabel brown)
3. Neutral (cabel blue)
Attention!
Connecting one of the three Phase with the earth pin will destroy the PGMi
Fig. 10.3-2: Socket 3 Socket 3 - PMGi in
1. Ground
2-4. Phase 1-3
1
3 2
1 2 3 4
