Fischer Panda 5000i PMS - Engine Monitoring Sensors

Panda 5000i PMS generator
9.12.10 Panda_5000i_PMS_eng.R01 - Kapitel/Chapter 4: Panda 5000i PMS generator Seite/Page 51

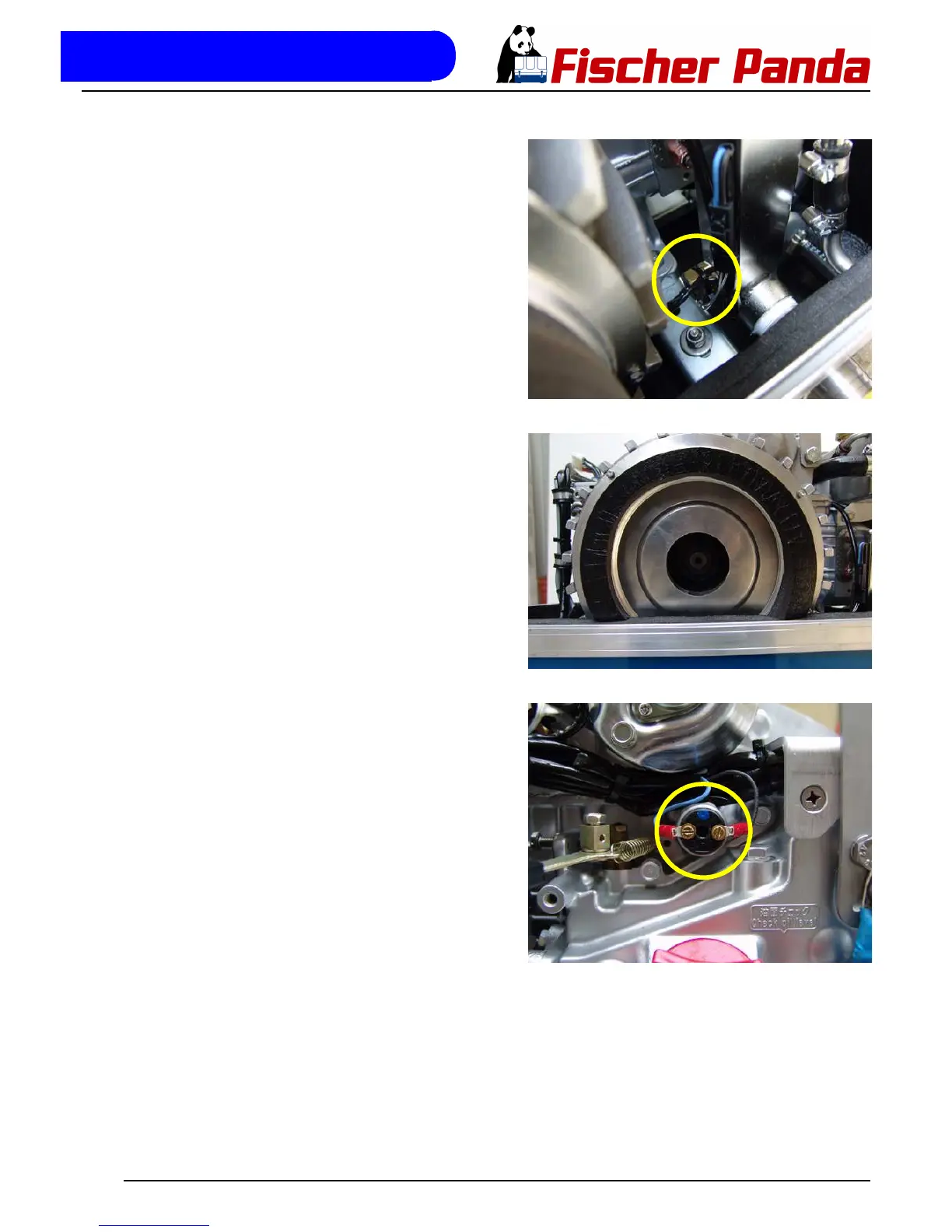

Fig. 4.3.8-2: TThermo-switch at exhaust connection Thermo-switch at exhaust connection
If the impeller pump drops out and deliveres no more seawa-
ter, the exhaust connection becomes extremely hot.
Fig. 4.3.8-3: Thermo-switch coil Thermo-switch coil
One thermo sensor is located in the stator winding
Fig. 4.3.8-4: Oil pressure switch Oil pressure switch
In order to be able to monitore the lubricating oil system, an
oil pressure switch is built into the system.
