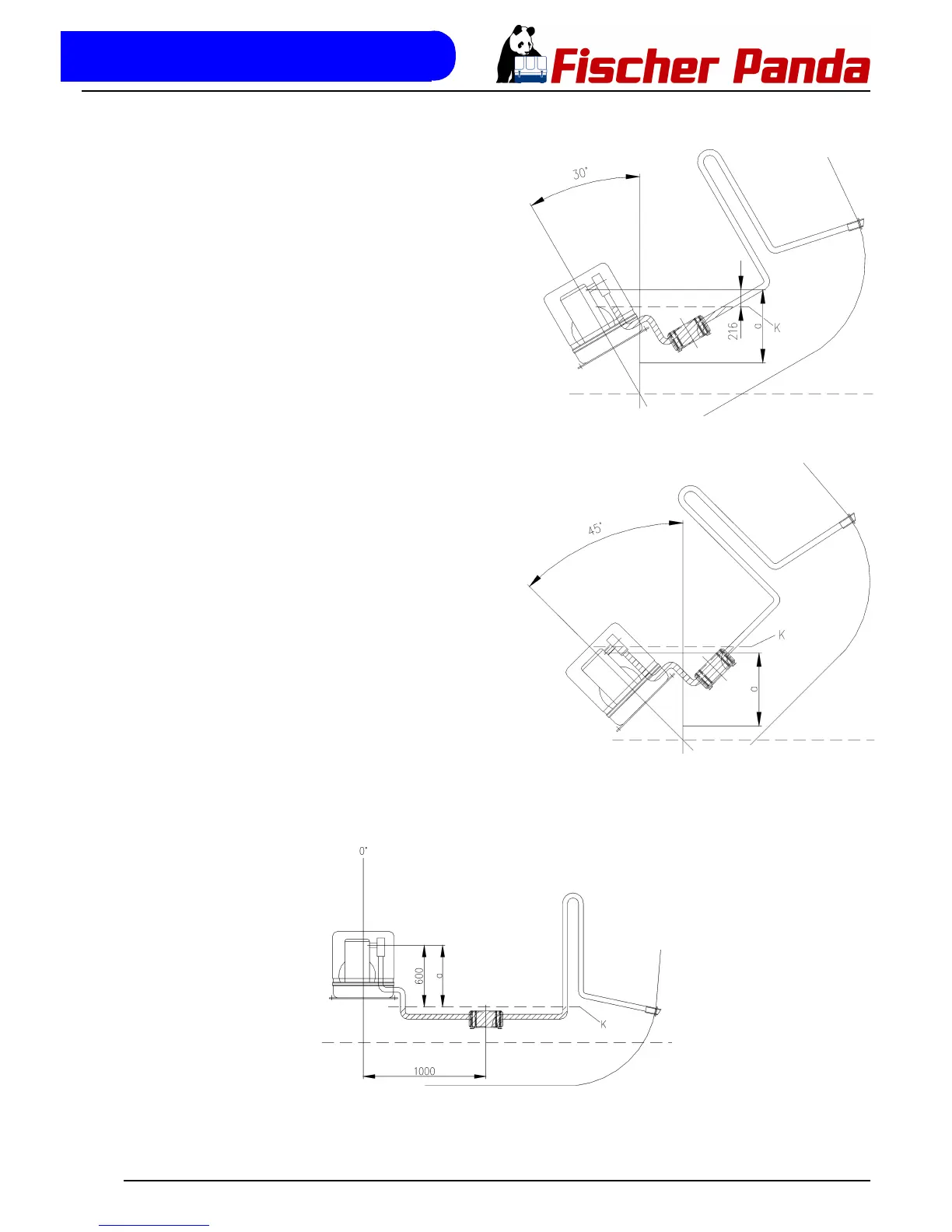

Fig. 5.6.5.3-3: Tilted position 30 degreed
Tilted position 30 degreed
The distance between the hydrostatic head and the critical
point at the exhaust elbow is only 216 mm. This means that
in a tilted position of 30 degrees you already face the highest
risk of sea water sloshing into the combustion chamber.
Fig. 5.6.5.3-4: Tilted position 45 degrees
Tilted position 45 degrees
The water level is now at the same height as the critical point
at the exhaust elbow. If the ship is sailed in a tilted position of
45 degrees with an installation like this, the infiltration of coo-
lant into the combustion chamber is inevitable. Irreparable
damages are preprogrammed.
B) Installation distance between exhaust water collector and generators’ center line 1000 mm
Fig. 5.6-5: Exhaust water collector, 1000 mm next to center line
