Maintenance Instructions
9.12.10 Panda_5000i_PMS_eng.R01 - Kapitel/Chapter 6: Maintenance Instructions Seite/Page 97

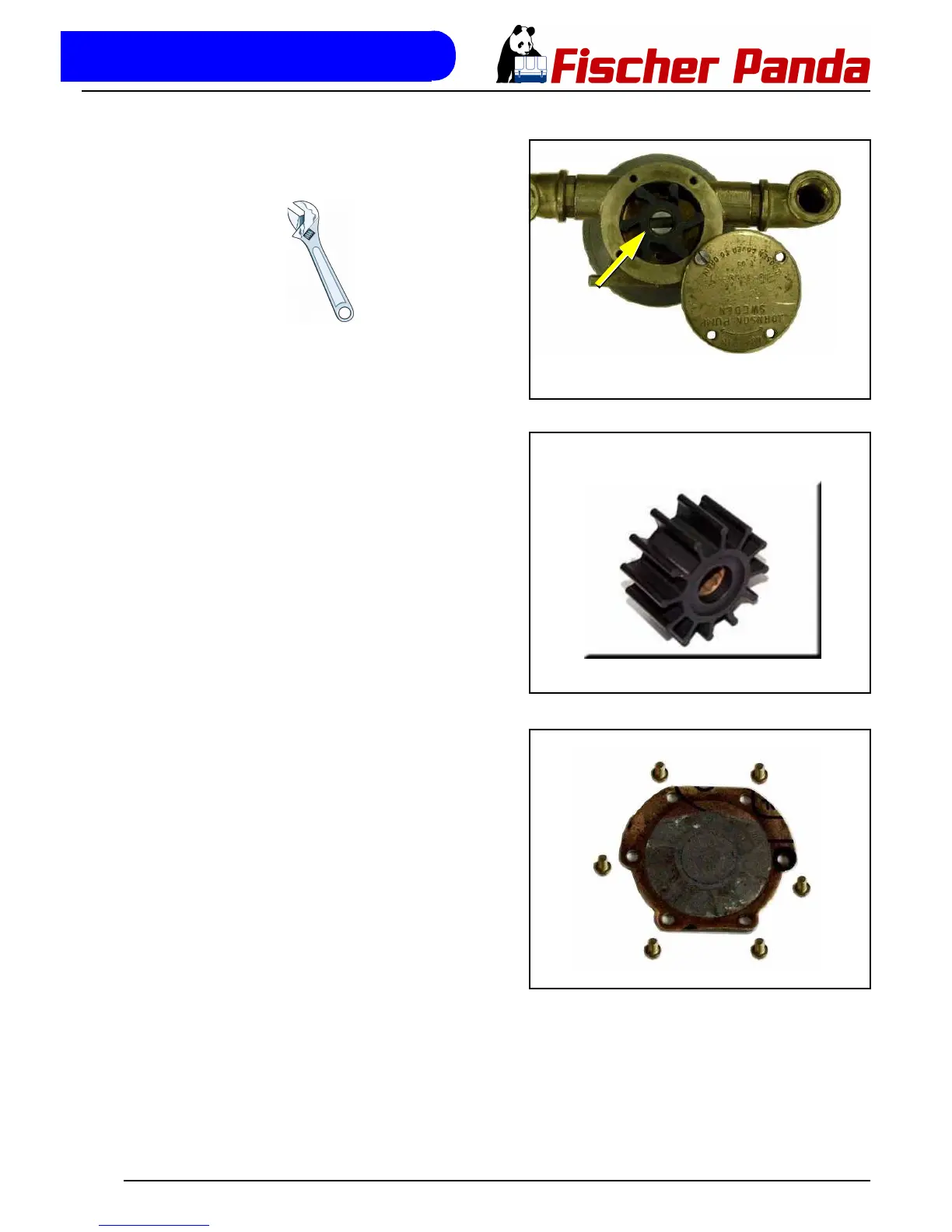

Fig. 6.10.3-4: Impeller
Pull to the impeller with a multigrip pliers of the wave.
Mark the impeller, to make sure that these is used in the
correct position at re-installation.
Fig. 6.10.3-5: Impeller
Check to the impeller for damage and replace it if neces-
sary.
Before the reinsertion into the housing the impeller should
have been lubricated with glycerin or with a non-mineral oil
based lubricant e.g. silicone spray.
Fig. 6.10.3-6: TImpeller seal
he impeller is attached to the pump wave (if the old
impeller is used, pay attention to the before attached
marking).
Fastening the cover and use a new seal.
