FlexDSL ORION 2 - G703 Connector (Е1 Interface for Stand Alone and Minirack Devices)

User Manual NTU Orion 2
112
7.3.3 “G703” connector (Е1 interface for Stand Alone and MiniRack devices)
Type – RJ-45 (female), 8 pins.

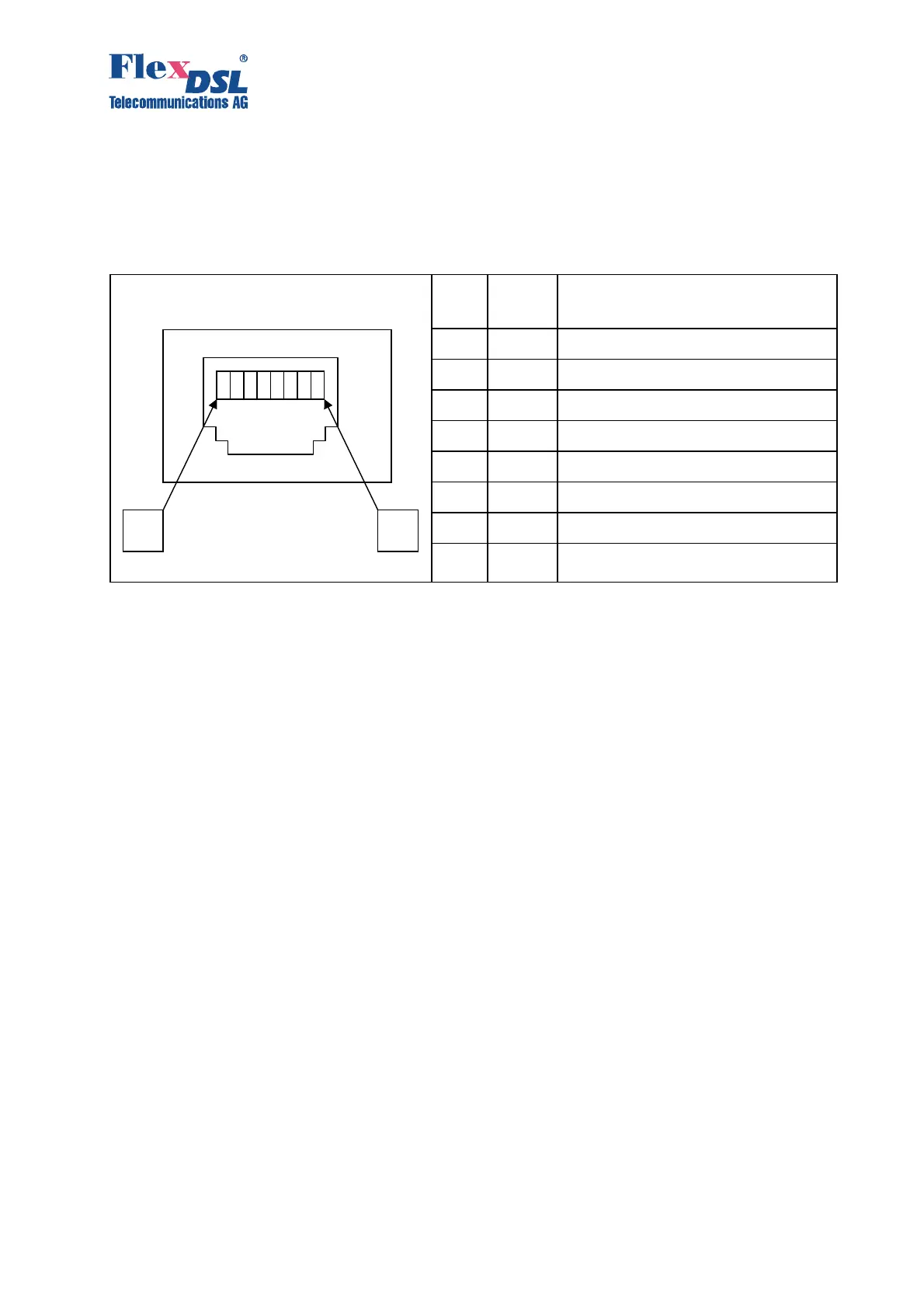

Table 7.3 “G703” connector.
Front View Pin
No.
Signal Description (PC connector)
1
RX_1/2A E1Input → CH1/2 Wire A
2 RX_1/2B E1Input → CH1/2 Wire B
3 NC Not used
4 TX_1/2A E1 Output → CH1/2 Wire A
5 TX_1/2B E1 Output → CH1/2 Wire B
6 NC Not used
7 NC Not used
8 NC Not used
1 8
