User Manual NTU Orion 2
15

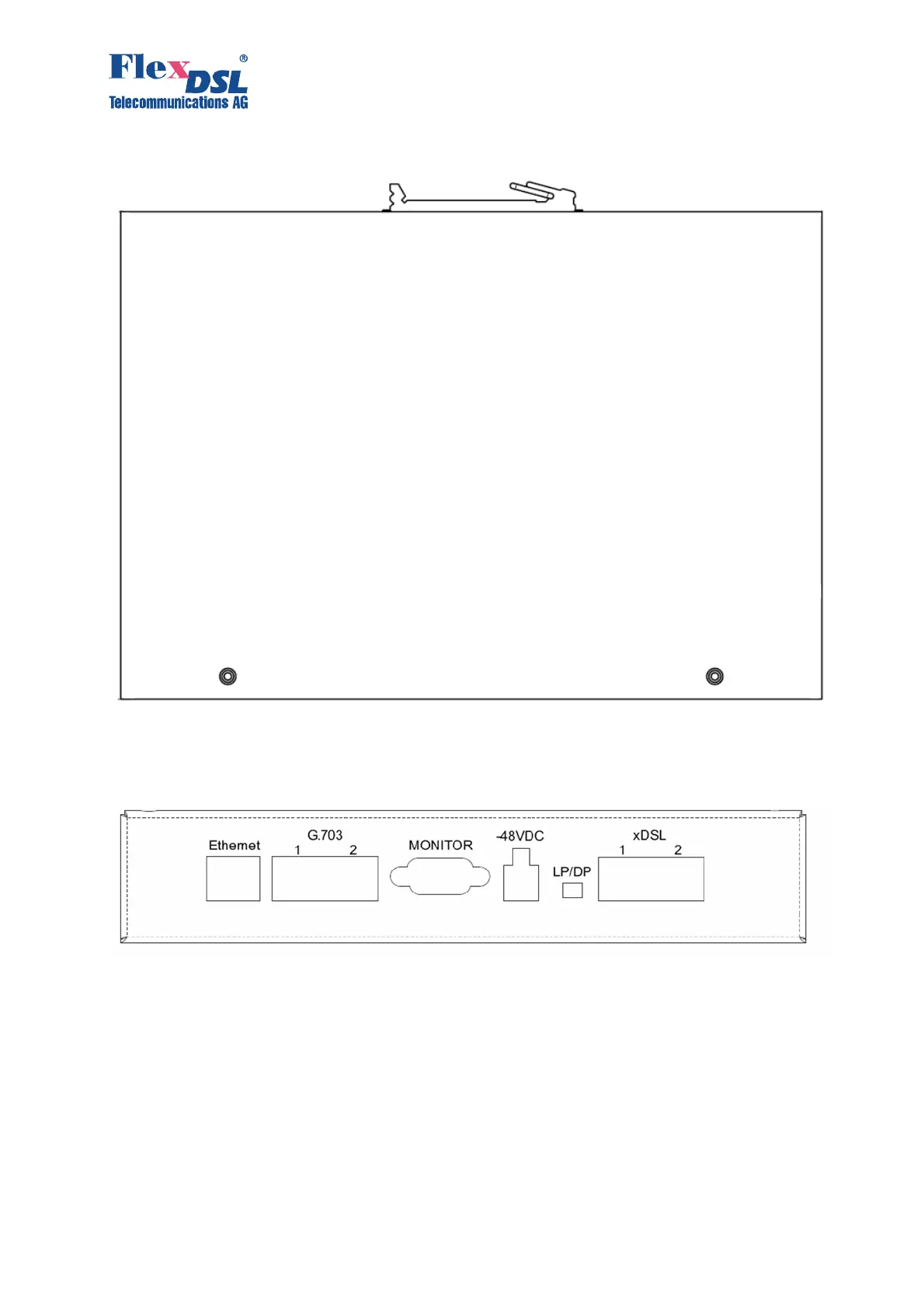

Figure 3.4. Top view FG-PAM-RAIL2N-2E1B/Eth, V51devices
Figure 3.5. Front view FG-PAM-RAIL2N-2E1B/Eth, V51 devices
3.3.1 Remote power supply, wetting current- supply and consumption modes
The wetting current supply and remote power supply modes can be changed by using jumpers
and the management PC.
3.3.1.1 Electrical safety regulations when using the remote power supply
Despite the safe voltage on each wire with respect to the ground (<120 Volts), the use the
remote power supply requires one to observe strictly the following rules:
