User Manual NTU Orion 2
30

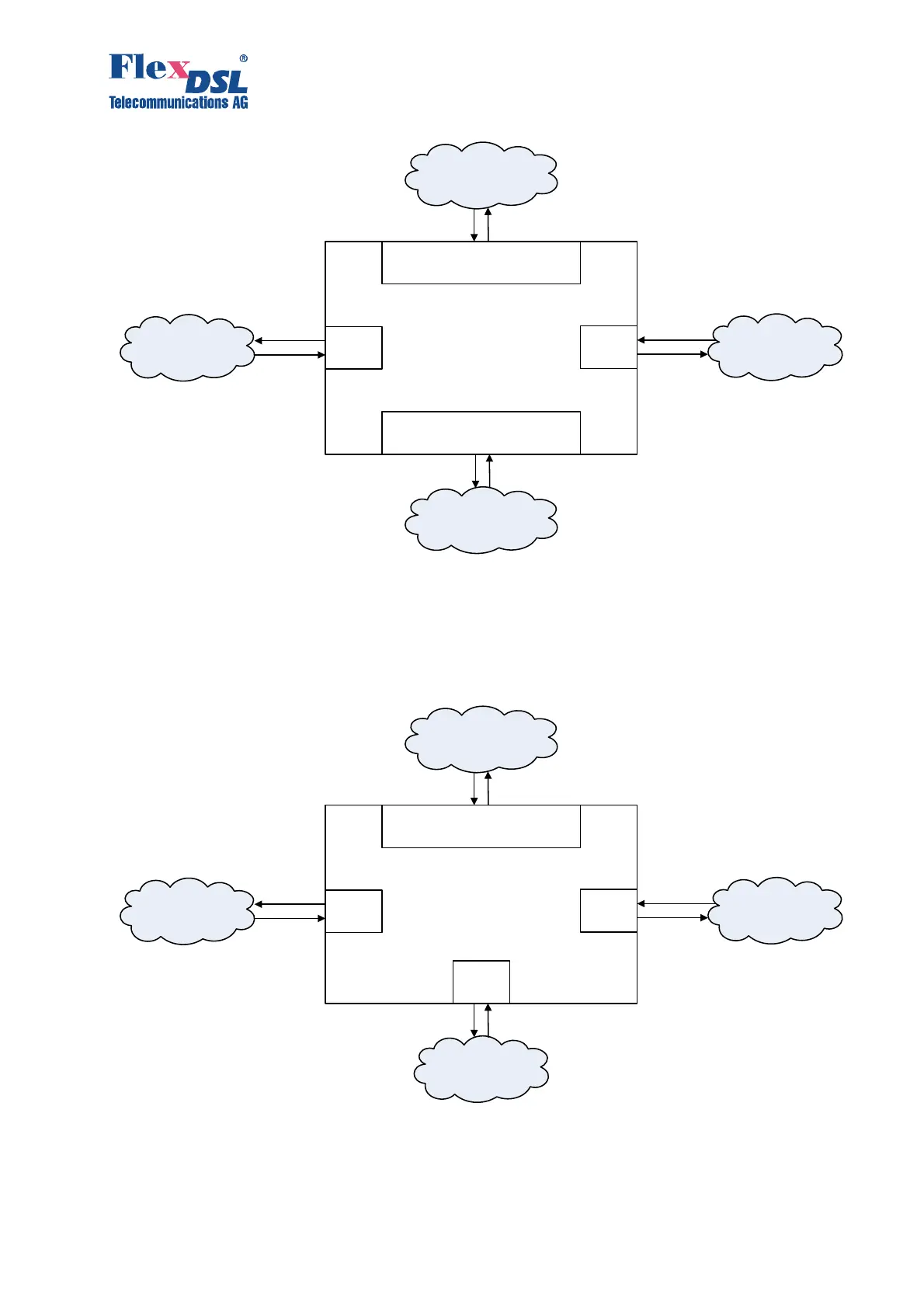

Figure 3.13 Internal Switch for single-channel devices
(for example, FG-PAM-SAN-E1B/Eth, V50).
For generators, the internal Ethernet switch has two WAN interfaces (WAN1 for DSL1, WAN2
for DSL2), one LAN interface and an internal management interface INT. E1 interfaces on
regenerators are not provisioned (see Figure 3.14).
Figure 3.14 Internal Switch for single-channel regenerators
(for example, FG-PAM-RGN-Eth-PL, V56)
VLAN
Switch
DSL1
Internal Management
Port
Virtual port
(Telnet management)
WAN1
WAN2 DSL2
Port 1
Port 2
Port 3
LAN
Ethernet
Network
Port 4
VLAN
Switch
DSL1
Internal Management
Port
Virtual port
(Telnet management)
WAN1
Ethernet
Network
LAN
(phisical socket)
WAN2 E1
Port 1
Port 4
Port 2
Port 2
