FlexDSL ORION 2 - Page 33

User Manual NTU Orion 2
33

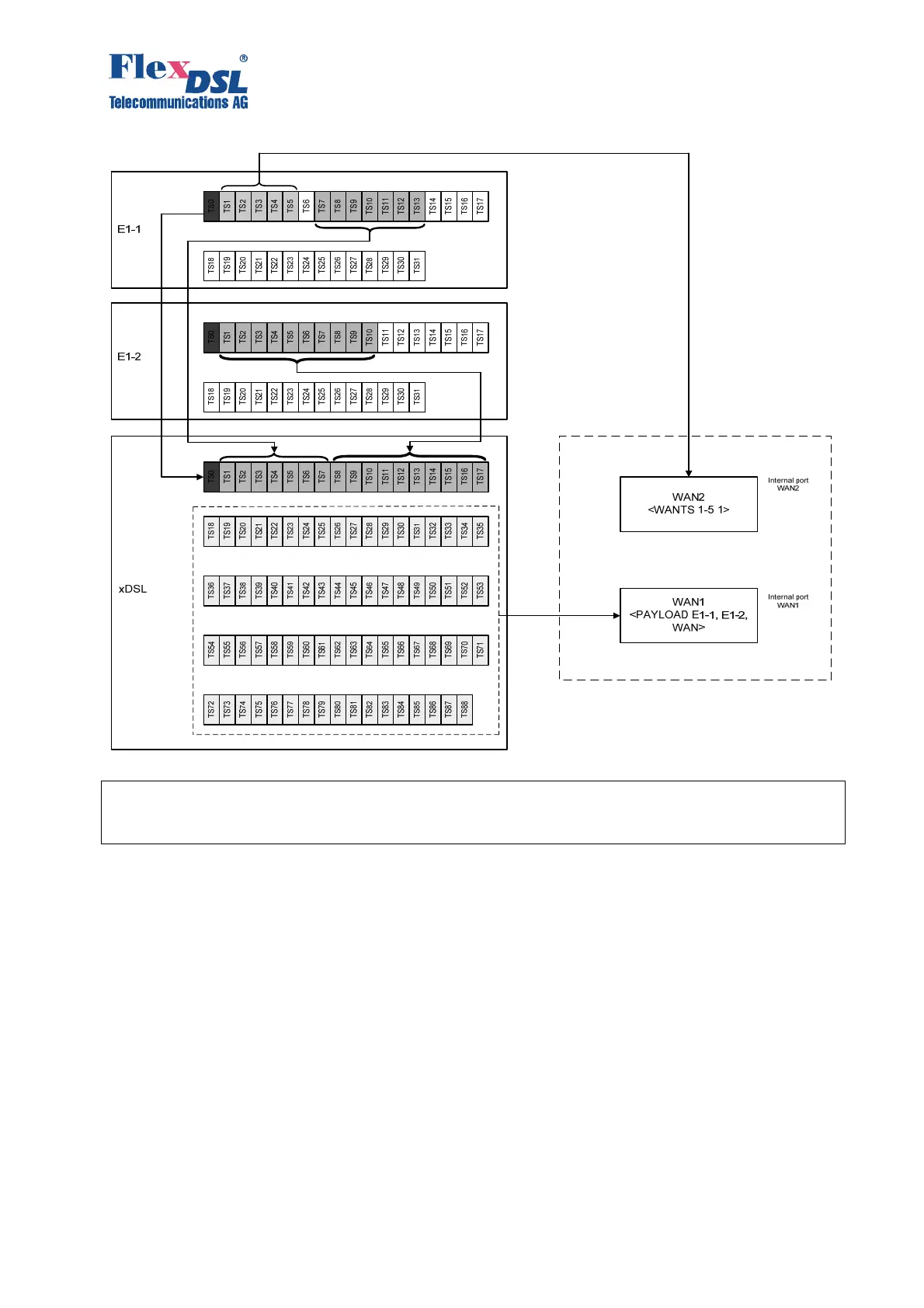

Figure 3.15 Example of distribution of time slots in an xDSL frame at a line rate of 89x64 kbit/s
in the mode when both E1 interfaces and both internal WAN1 and WAN2 ports are used for the
termination device.
