Operator Maintenance
Calibrating the 5700A/5720A Series II to External Standards 7
7-9
3. Enter the ambient temperature; then press E. The display shows:
PREV
MENU
4. Connect the 732B to the calibrator as shown in Figure 7-3.
732B DC STANDARD
AC PWR IN CAL CHARGE LOW BAT
10V 1.018V CHASSIS
GUARD1.018V COM10V COM
SERIAL NUMBER
HI
HI
LO
LO
HI
OUTPUT
V A
SENSE
V
AUX
CURRENT
GUARD
GROUND
WIDEBAND
ΩΩ
CALIBRATOR

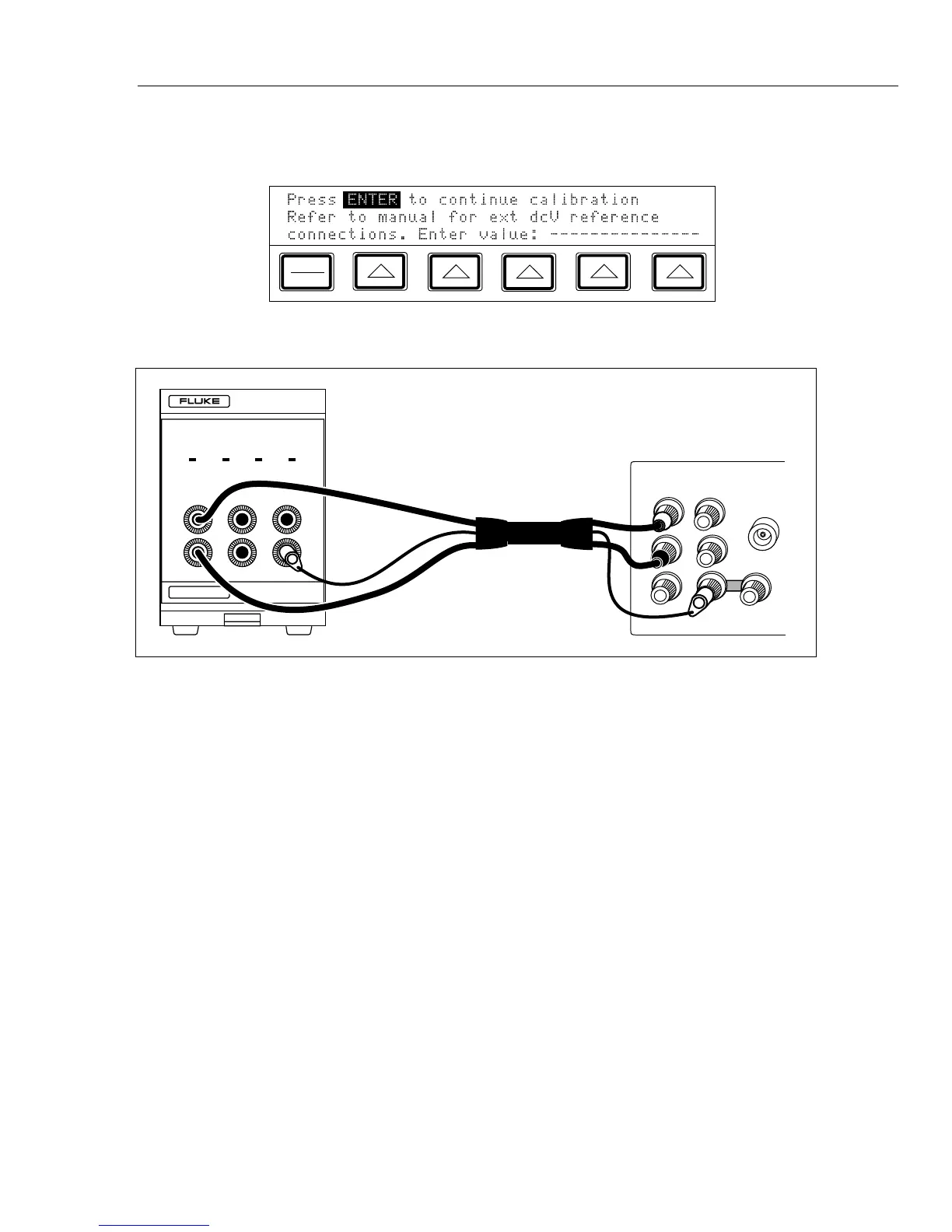

Figure 7-3. 732B External Calibration Connections.
