Fluke 5700A Series II User Manual

Operator Maintenance
Calibrating the Wideband AC Module (Option 5700A-03) 7
7-19
HI
HI
LO
LO
HI
OUTPUT
V A
SENSE
V
AUX
CURRENT
GUARD GROUND
WIDEBAND
Ω
GND TAB
50 FEEDTHROUGH Ω
Ω
CALIBRATOR

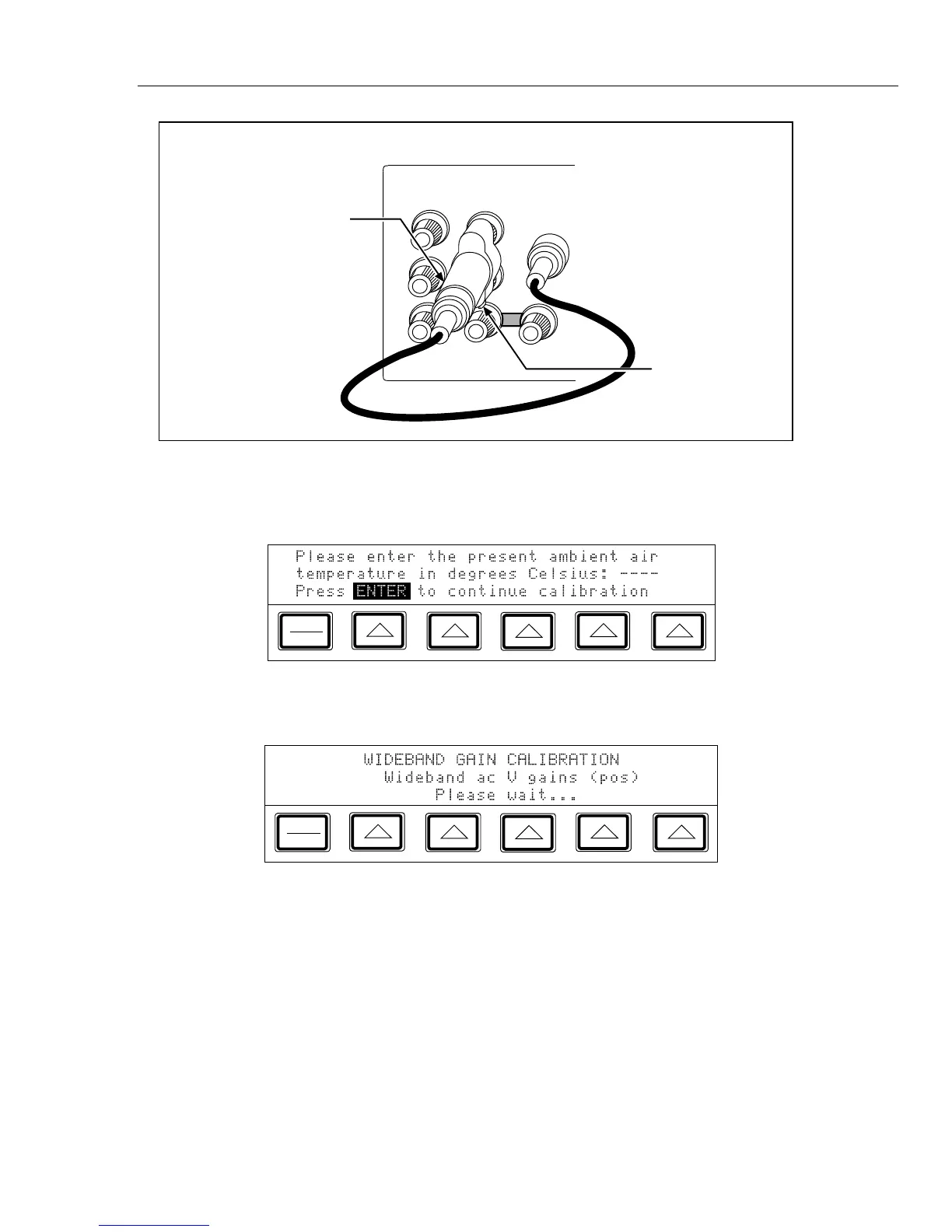

Figure 7-6. Wideband Module Calibration Connection
4. Press the “Gain” softkey to bring up the following display:
PREV
MENU
5. Enter the ambient temperature; the press E. The display shows the following:
PREV
MENU
As the wideband calibration proceeds, messages appear on the display identifying all
processes as they are encountered. When positive gains calibration is complete, a
message appears telling you to refer to the manual for negative gains connections.

Fluke 5700A Series II Specifications

General

Type	Multifunction Calibrator
Operating Temperature	0 °C to 50 °C
Storage Temperature	-20 °C to 70 °C
Voltage Range	0 to 1100 V
DC Voltage Range	10 μV to 1100 V
Frequency Range	1 MHz
Humidity	non-condensing
Power Requirements	100 V to 240 V
