Fluke II Series Getting Started Guide

EtherScope
TM
Series II
Getting Started Guide
26

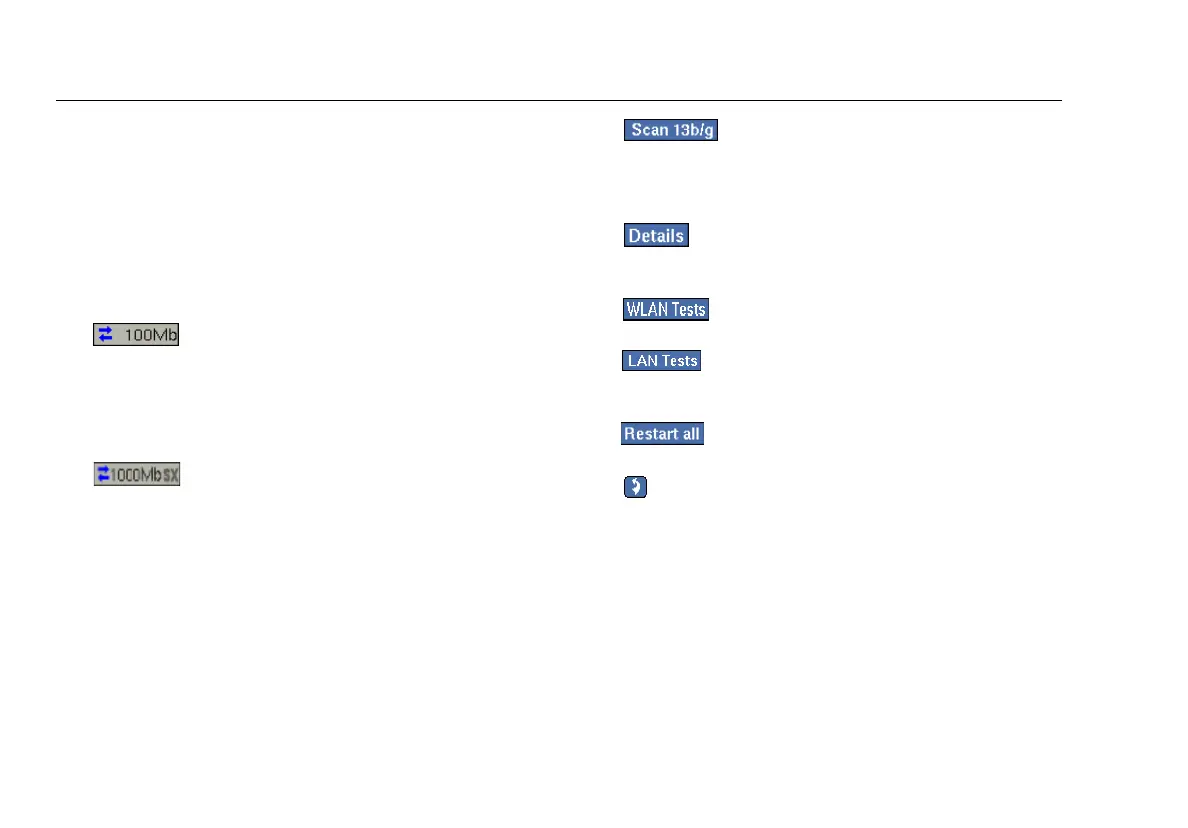

Toolbar
The toolbar is the first row of buttons located at the bottom
of every screen. The toolbar contains buttons and icons that
are used to perform basic tasks.
Note
The toolbar buttons that are available depend on
the test that is selected.
• : (RJ-45 LAN only) reports the actual link
speed and duplex mode of the connection. Two solid
arrows (shown) indicate a full-duplex connection; one
solid and one outlined arrow represent a half-duplex
connection.
• : (Fiber only) reports the link speed, full
duplex (always), and the SFP hardware module
installed (SX, LX, or ZX).
• : (WLAN only) indicates the current
channel being scanned and shows linked status when
the instrument is in a WLAN linked state.
• : displays detailed information or results for
the selected test or device.
• : changes the interface type to WLAN.
• : changes the interface type to RJ-45 copper
and fiber.
•
:
restarts all tests.
• (Back): displays the previously displayed screen.
