Fluke II Series Getting Started Guide

EtherScope
TM
Series II
Getting Started Guide
22
Status LEDs

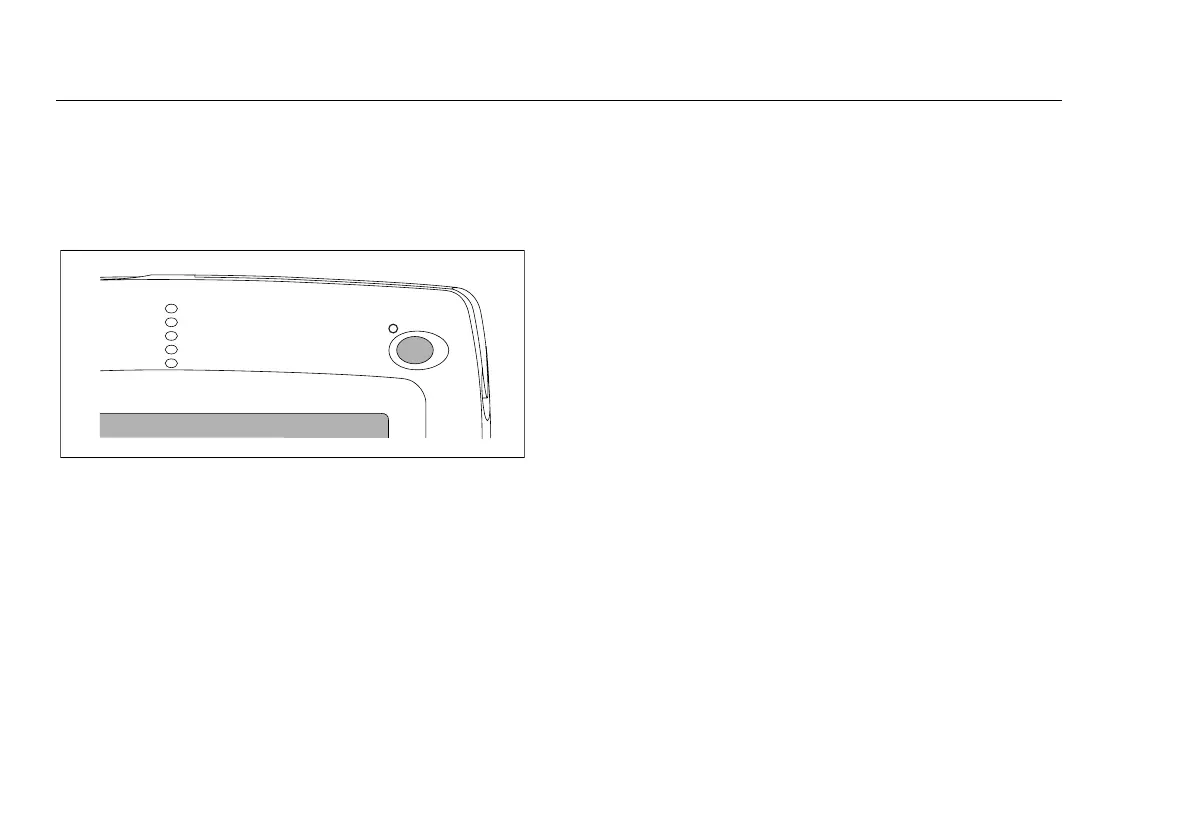

The status LEDs are located at the top of the front panel, as
shown in Figure 3:
avs01f.eps
Figure 3. Status LEDs
These LEDs provide instant, visible feedback on the state of
your network and indicate conditions relative to the type of
of interface (LAN RJ-45 or wireless) you are testing.
The following sections describe the LEDs for wired LAN and
wireless LAN interfaces.
LAN (RJ-45 or Fiber) Interface LEDs
LINK
• Green (solid): indicates that a link is present for all
speeds.
• Off: indicates that no cable or no link is present.
LINK
UTILIZATION
COLLISION
ERROR
TRANSMIT
