FOR-A FA -10DCCRU - Color Correction

32

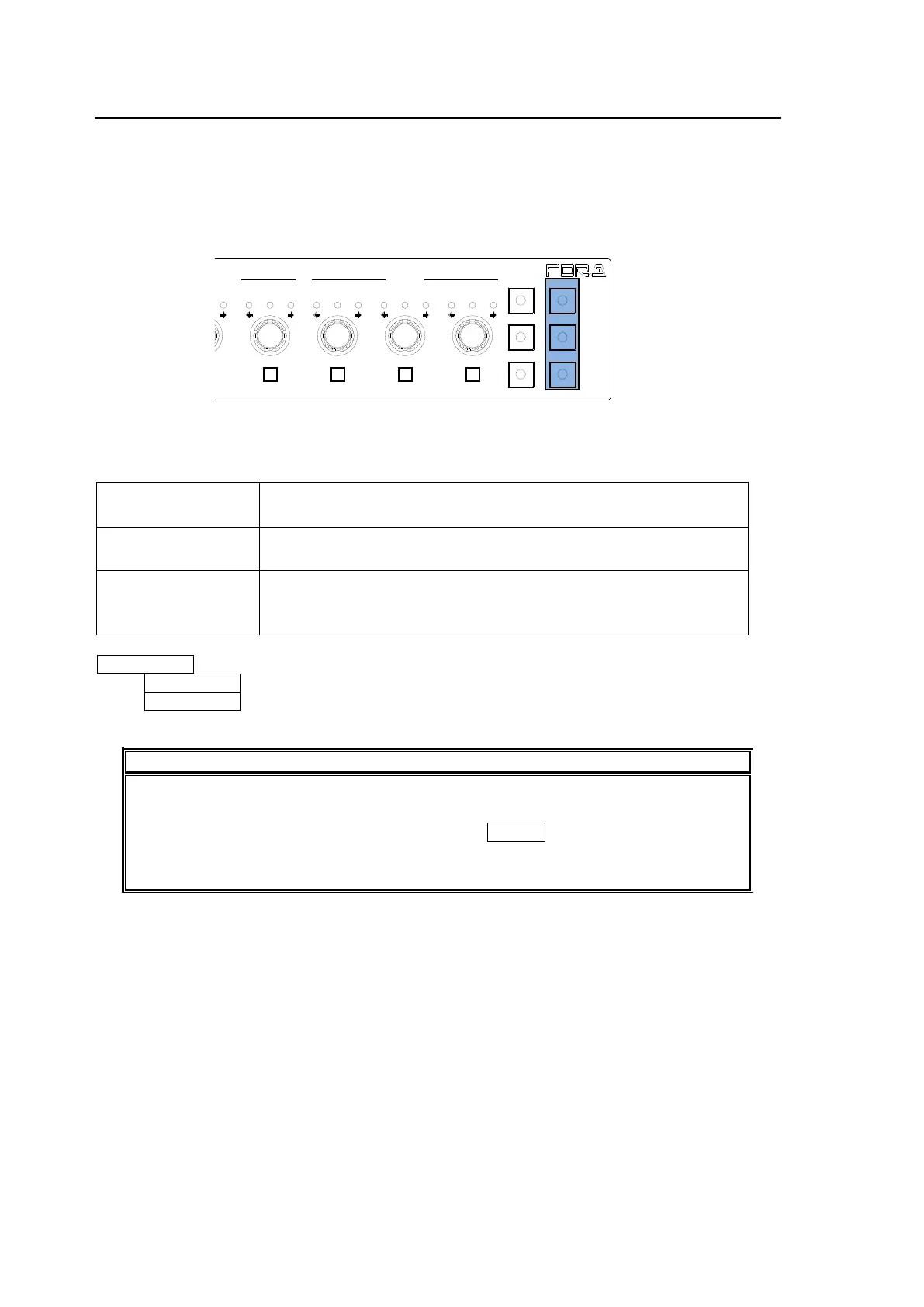

6-9. Color Correction
In order to enter the Color Correction settings, first you need to select a correction mode using
the following three buttons:
BAL (Balance) button: RGB mode
DIF (Differential) button: Color Difference (YPbPr) mode
SEPIA button: Sepia mode
The following settings are available in Color Correction mode.
WHITE LEVEL
White Level setting using the R, G and B components.
(Disabled in Sepia mode.)
BLACK LEVEL
Black Level setting using the R, G and B components.
(Disabled in Sepia mode.)
GAMMA
Gamma Level setting using the R, G and B components.
(Only Y signal is adjustable using G in Sepia mode.)
Three gamma curves (White, Center and Black) are selectable.
GROUP ADJ allows you to select between Group adjustment and Individual adjustment.
When GROUP ADJ is turned off, R, G and B levels can be set individually.
When GROUP ADJ is turned on, R, G and B levels can all be set together by changing R, G or
B.
IMPORTANT
Color Correction is disabled while in Bypass, MU Selection, Clip Setting or System
Setting mode.
Color Correction settings are not displayed when FS SEL is lit.
Note that changes are applied to all linked FS channels (FS Link On) in FA-505,
FA-1010 or FA-9520 (FA-9520 mode). See section 11. “FS Link” for more details.
1-5 6-10
11-15/UNIT 16-20
BYPS/OP FS SEL
MEMORY/SET
0 1 2 3 4 5 6 7
FREEZE
CLIP
SPLIT
SELECT - +
SAVE LOAD CLEAR
PROCESS CONTROL
VIDEO LEVEL Y LEVEL C LEVEL SETUP/BLUCK HUE
UNITY UNITY UNITY UNITY UNITY
SYSTEM
GRP ADJ
UNITY UNITY UNITY UNITY UNITY UNITY
R G B R G B
WHITE LEVEL BLACK LEVEL
UNITY UNITY UNITY
R G B
GAMMA
WHITE BAL
FA-10DCCRU
CENTER DIF
BLACK SEPIA
