FOR-A FA -10DCCRU - Rear Panel

14

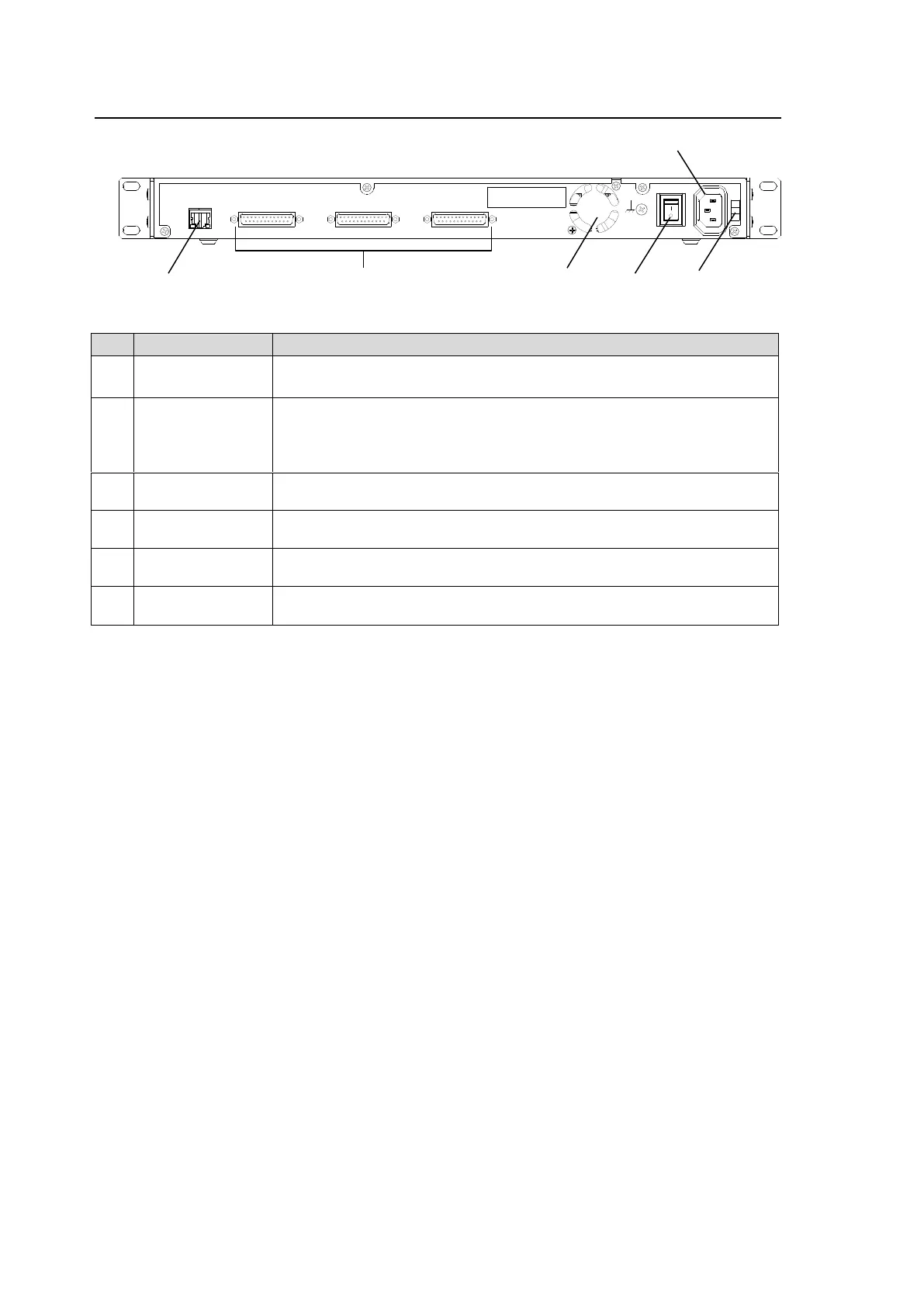

3-2. Rear Panel
No.
Name
Description
(1)
TO MU
Used to connect to an FA-505, FA-1010, FA-9520 or FA-9500 via LAN.
Set the unique IP address and connect to the network.
(2)
GPI1 to GPI3
Used to connect an FA-AUX30 or external expansion switch panel(s).
To assign GPI functions, install the FA GPIO Editor software using the
supplied CD-ROM.
See section 10. “GPI Interface” for details on GPI connectors.
(3)
Cooling Fan
Used to air cool the unit to prevent overheating. Do not block the
ventilation openings.
(4)
Ground Terminal
Used to ground the unit to protect operators against static electricity and
/ or electrical shock.
(5)
AC cord retaining
clip anchor hole
Used to anchor the AC cord retaining clip.
(6)
AC IN
Used for connection to an AC power source via the supplied accessory
cord. (AC 100V-240V 50/60Hz)
TO MU
(10/100/1000BASE-T)
GPI1 GPI2 GPI3
POWER
A
C
1
0
0
-
2
4
0
V
5
0
/
6
0
H
z
I
N
OFF
ON
(1)(
4)
(2)
(3)
(4)
(5)
(6)
