FOR-A FA -10DCCRU - GPI1-GPI3 Pin Assignments

67
10-4. GPI1-GPI3 Pin Assignments

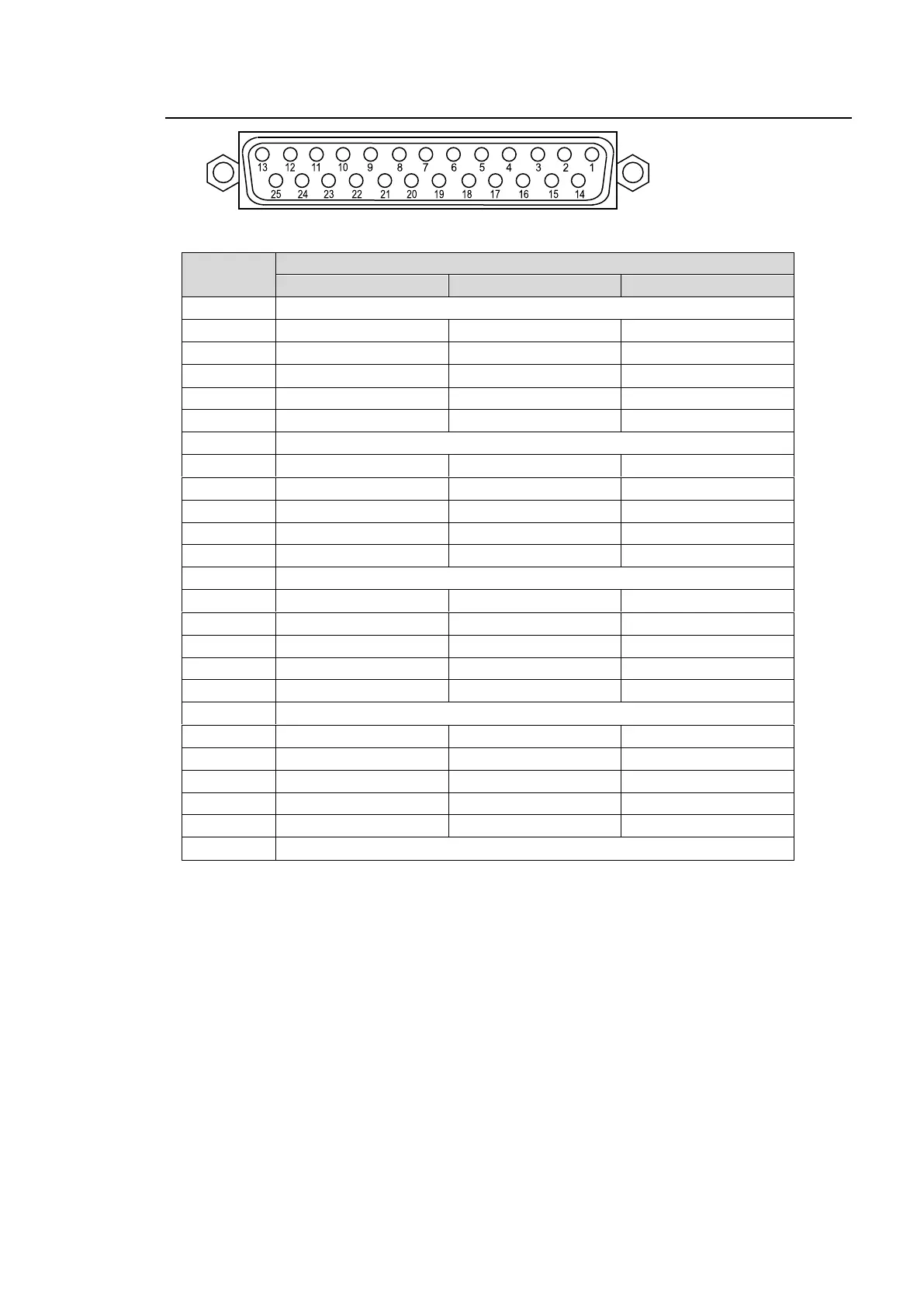

 Pin assignments (25-pin D-sub, female)
Pin No.
Signal
GPI1
GPI2
GPI3
1
GND (Ground)
2
GPI OUT 1 (Output)
GPI OUT 11 (Output)
GPI OUT 21 (Output)
3
GPI OUT 2 (Output)
GPI OUT 12 (Output)
GPI OUT 22 (Output)
4
GPI OUT 3 (Output)
GPI OUT 13 (Output)
GPI OUT 23 (Output)
5
GPI OUT 4 (Output)
GPI OUT 14 (Output)
GPI OUT 24 (Output)
6
GPI OUT 5 (Output)
GPI OUT 15 (Output)
GPI OUT 25 (Output)
7
GND (Ground)
8
GPI IN 1 (Input)
GPI IN 11 (Input)
GPI IN 21 (Input)
9
GPI IN 2 (Input)
GPI IN 12 (Input)
GPI IN 22 (Input)
10
GPI IN 3 (Input)
GPI IN 13 (Input)
GPI IN 23 (Input)
11
GPI IN 4 (Input)
GPI IN 14 (Input)
GPI IN 24 (Input)
12
GPI IN 5 (Input)
GPI IN 15 (Input)
GPI IN 25 (Input)
13
DC OUT (5.0 V output, maximum 200 mA DC)
14
GPI OUT 6 (Output)
GPI OUT 16 (Output)
GPI OUT2 6 (Output)
15
GPI OUT 7 (Output)
GPI OUT 17 (Output)
GPI OUT2 7 (Output)
16
GPI OUT 8 (Output)
GPI OUT 18 (Output)
GPI OUT 28 (Output)
17
GPI OUT 9 (Output)
GPI OUT 19 (Output)
GPI OUT 29 (Output)
18
GPI OUT 10 (Output)
GPI OUT 20 (Output)
GPI OUT 30 (Output)
19
GND (Ground)
20
GPI IN 6 (Input)
GPI IN 16 (Input)
GPI IN 26 (Input)
21
GPI IN 7 (Input)
GPI IN 17 (Input)
GPI IN 27 (Input)
22
GPI IN 8 (Input)
GPI IN 18 (Input)
GPI IN 28 (Input)
23
GPI IN 9 (Input)
GPI IN 19 (Input)
GPI IN 29 (Input)
24
GPI IN 10 (Input)
GPI IN 20 (Input)
GPI IN 30 (Input)
25
NC
