② Y Black Clip Level
Setting range: -7.5% - 50%
Default (UNITY): -7.5%
Button
Setting
Level indicators
Panel display
SETUP/
BLACK
A
Lit orange.
Flashes at -7% (UNITY)
-7.5% - -1%
B
Lit green
0%
C
Lit orange.
Flashes at 50%.
1% - 50%
③ C White Clip Level
Setting range: 50% - 111%
Default (UNITY): 111%
Button
Setting
Level indicators
Panel display
C LEVEL
A
Lit orange.
Flashes at 111% (UNITY)
101% - 111%
B
Lit green
100%
C
Lit orange.
Flashes at 50%.
50% - 99%
50%
50%
0%
50%
100%
111%

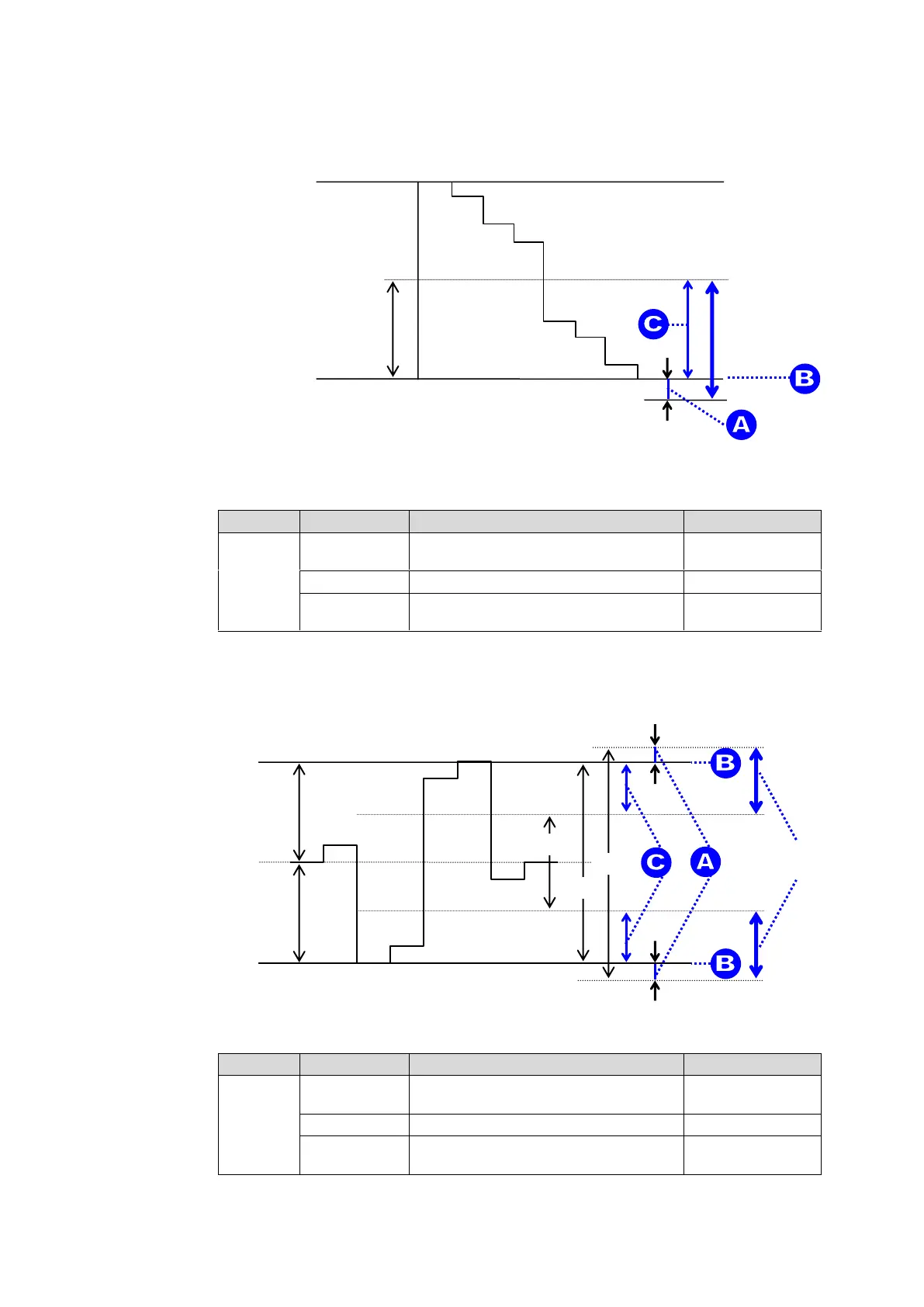

SMPTE 100% color bars when color 700mVp-p
C White Clip
setting range
SMPTE 100% color bars when 100% black
100%
50%
0%
50%
-7.5%
Y Black Clip
setting range
