5.20 RUNNING GEAR – HITCH & AXLE
Först uses AL-KO Kobler break drums.
Please refer to maintenance instruction manual supplied with the machine.
Check the internal diameter of the wheel drum for ware.
The brake drum also shows wear over time and must be replaced when the minimum
measure is no longer met.
CAUTION
Replace the brake drum if the maximum brake drum diameter is reached or
exceeded as otherwise brake malfunctions or brake failure may occur.
Wheel brake type Diameter
WB 1637 max. 161mm
WB2051 max. 202mm
WB2361 max. 232mm
WB3062 max. 303mm
WB3081 A/B max. 303mm

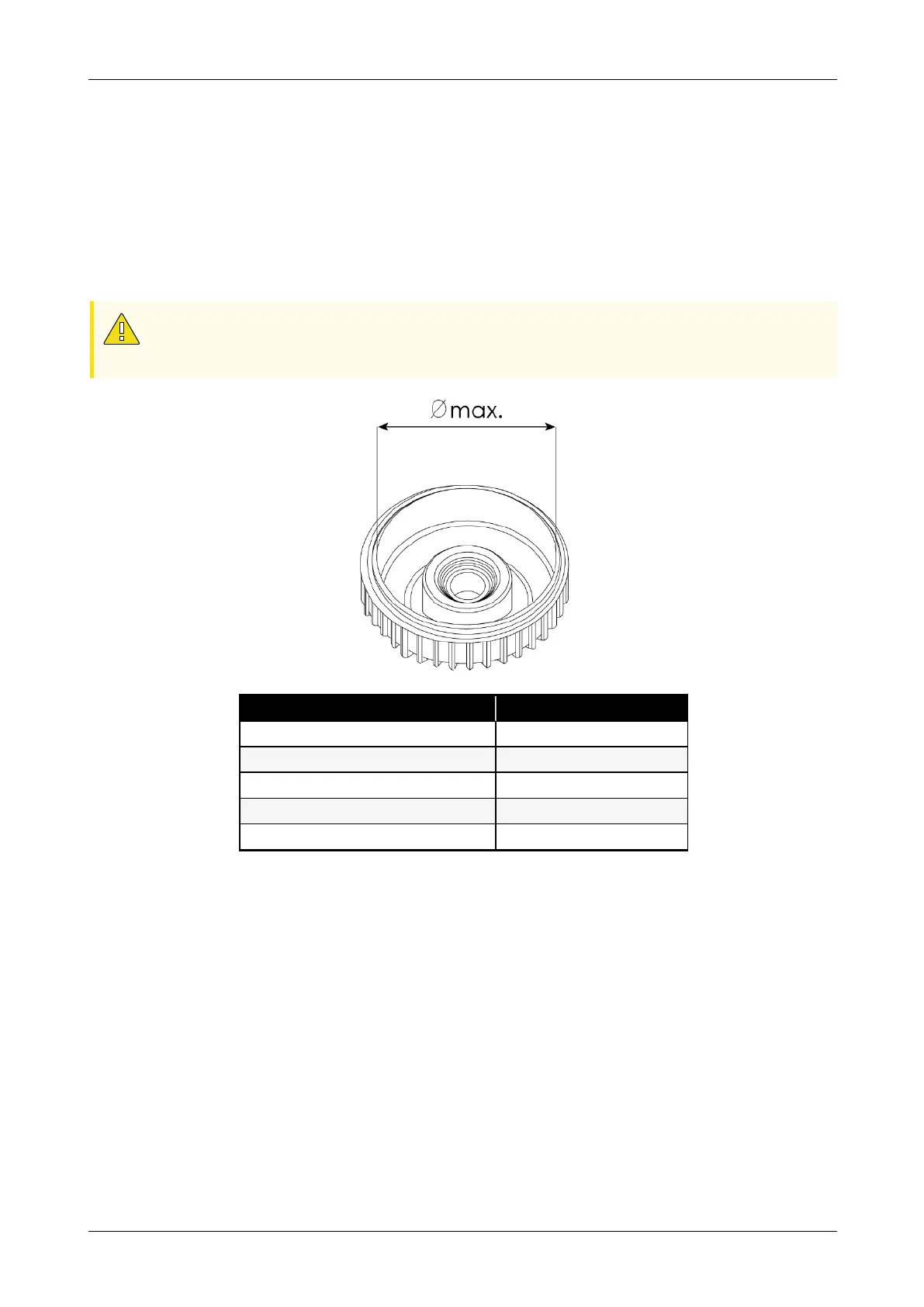

Figure 73 - Wheel drum internal diameter
Chapter 5: Maintenance
Redwood Global Ltd - ST6P
Operator and Maintenance Manual
105 12-00-001 v4.0
