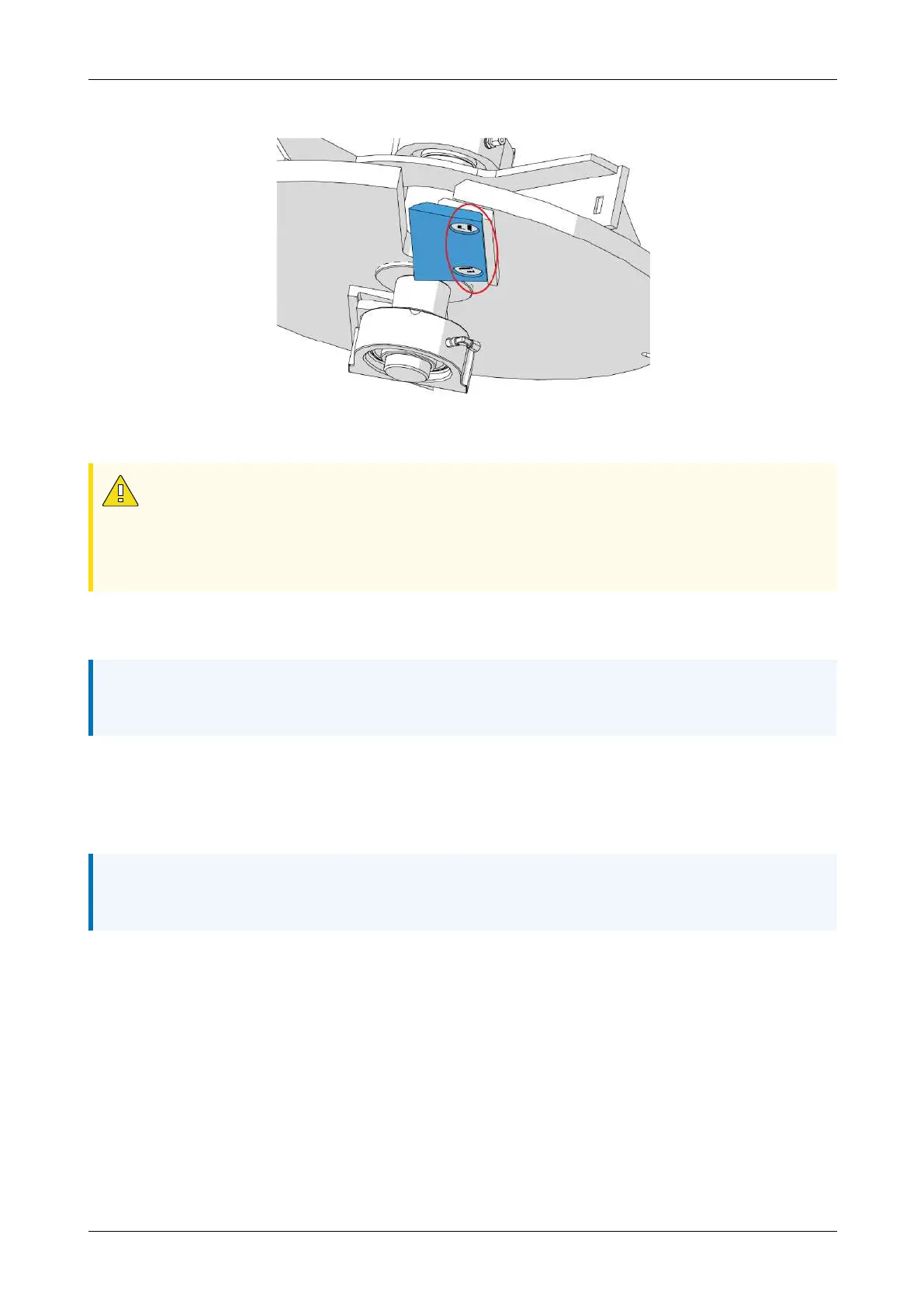

Figure 54 - Correct position of the back edge of the blade
CAUTION
Shims may be required to keep the gap between the blade and the anvil on the
inner edge (closest to the flywheel shaft) at 1mm.
►
Refer to For more information, refer to "About blade sharpening" on
page 87.
12. Torque the two blade bolt sets to 310Nm with a calibrated torque wrench and
24mm socket.
NOTICE
You can only torque a blade bolt set once. Never re-use a blade bolt set once
fitted to the flywheel and torqued to 310Nm.
13. Make sure the blade is fitted correctly.
14. Remove the flywheel locking tool.
15. Carefully turn the flywheel to the next blade position and repeat the process for
the second blade.
NOTICE
If you need to carry out further work with the chipping chamber lid open, rotate
the flywheel so that both blades are inside the chipping chamber.
16. When the work is complete, close the chipping chamber cover, install the two
M12 bolts, and torque to 86Nm.
17. Connect the battery leads.
