Redwood Global Ltd - ST6P
Operator and Maintenance Manual
Chapter 1: Machine Overview

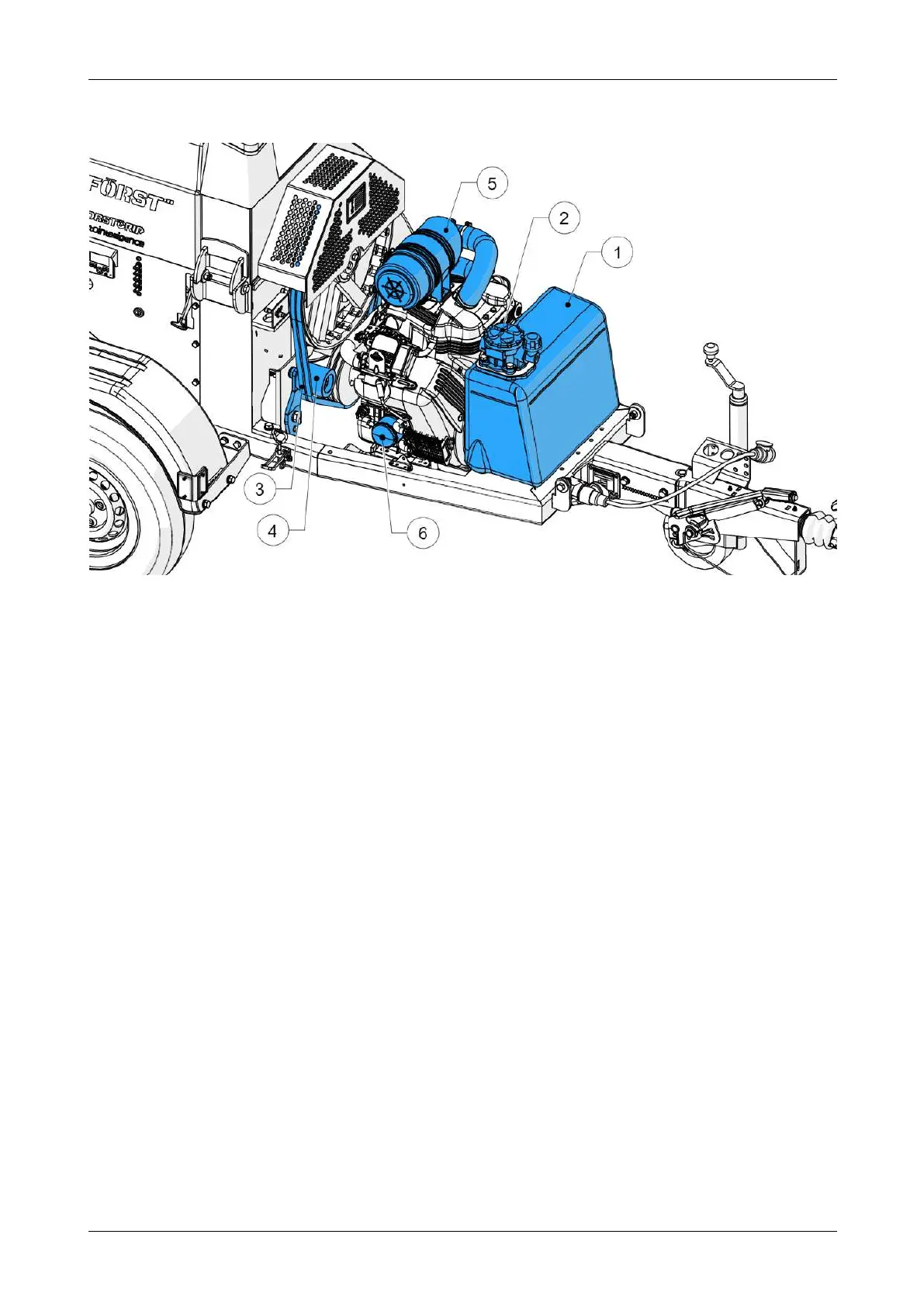

Below are components located on the right side of the machine:
1 Hydraulic oil tank 4 V belt tensioner
2 Hydraulic filler cap 5 Air filter assembly
3 V belt 6 Engine oil filter
Figure 4 - Engine right-hand side
12-00-001 v4.0 22
