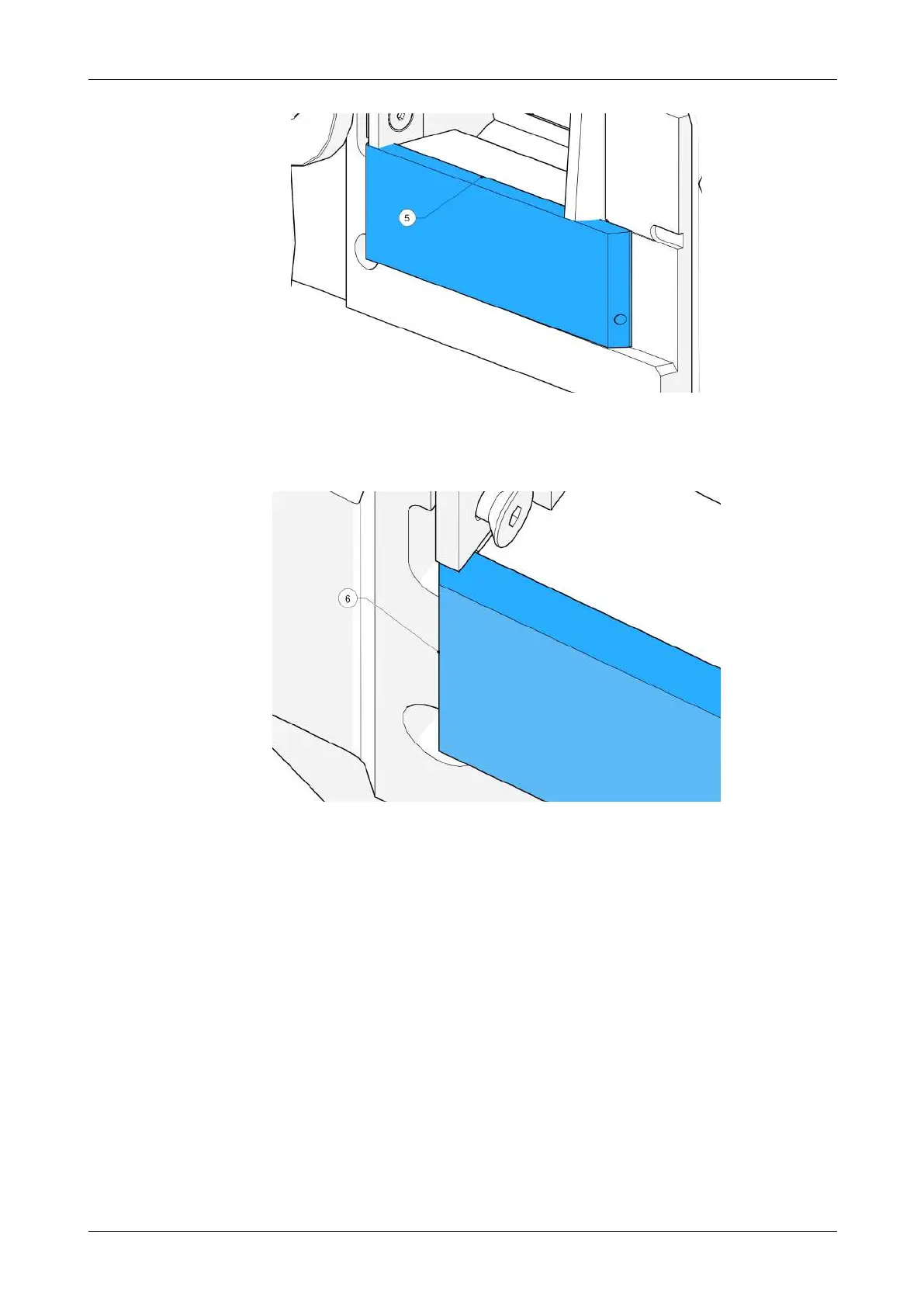

Figure 61 - Anvil tight to the bedplate
15. Push the anvil along the lower seat.
16. Push the anvil into the seat under the side anvil (6, Figure 62).
Figure 62 - Anvil in vertical seat
17. Inspect the M12 bolt and washers.
If there are signs of damage or wear, replace them.
18. Attach the anvil clamp and the securing bolt.
19. Torque the M12 clamp bolt to 86Nm.
20. Make sure the anvil is fitted correctly.
21. Close the chipping chamber cover and bonnet.
Chapter 5: Maintenance
Redwood Global Ltd - ST6P
Operator and Maintenance Manual
91 12-00-001 v4.0
