13. Lift the top feed roller (2, Figure 42) to the fully open position.

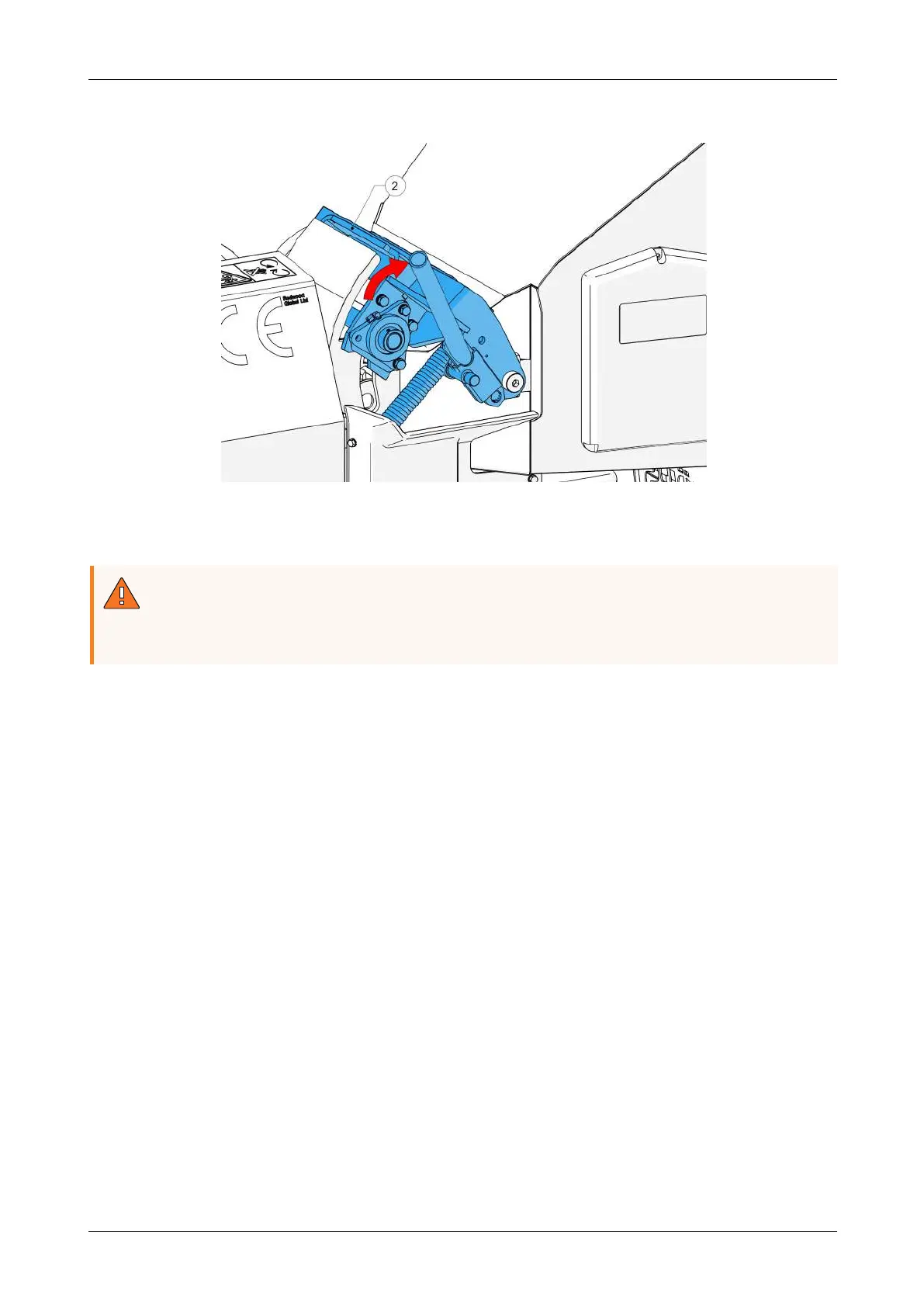

Figure 42 - Raising the top feed roller housing
14. You should now have access to the feed chamber.
WARNING
Be careful; this is the machines cutting zone.The top and bottom feed rollers
have sharp teeth and, the flywheel cutting blades are not far from them.Do not
put your hands into this area.
15. Wearing protective gloves and using a piece of wood, carefully clear the
blockage from inside the feed chamber.
Chapter 4: Operation
Redwood Global Ltd - ST6P
Operator and Maintenance Manual
69 12-00-001 v4.0
