1.5 CHIPPING CHAMBER OVERVIEW
To access the chipping chamber:
►
Refer to "Opening the chipping chamber cover" on page 79
1 Flywheel 4 TFR lifting tool slot
2 Flywheel blade 5 Feed roller spring tensioner eye bolt
3 Top feed roller (TFR) assembly

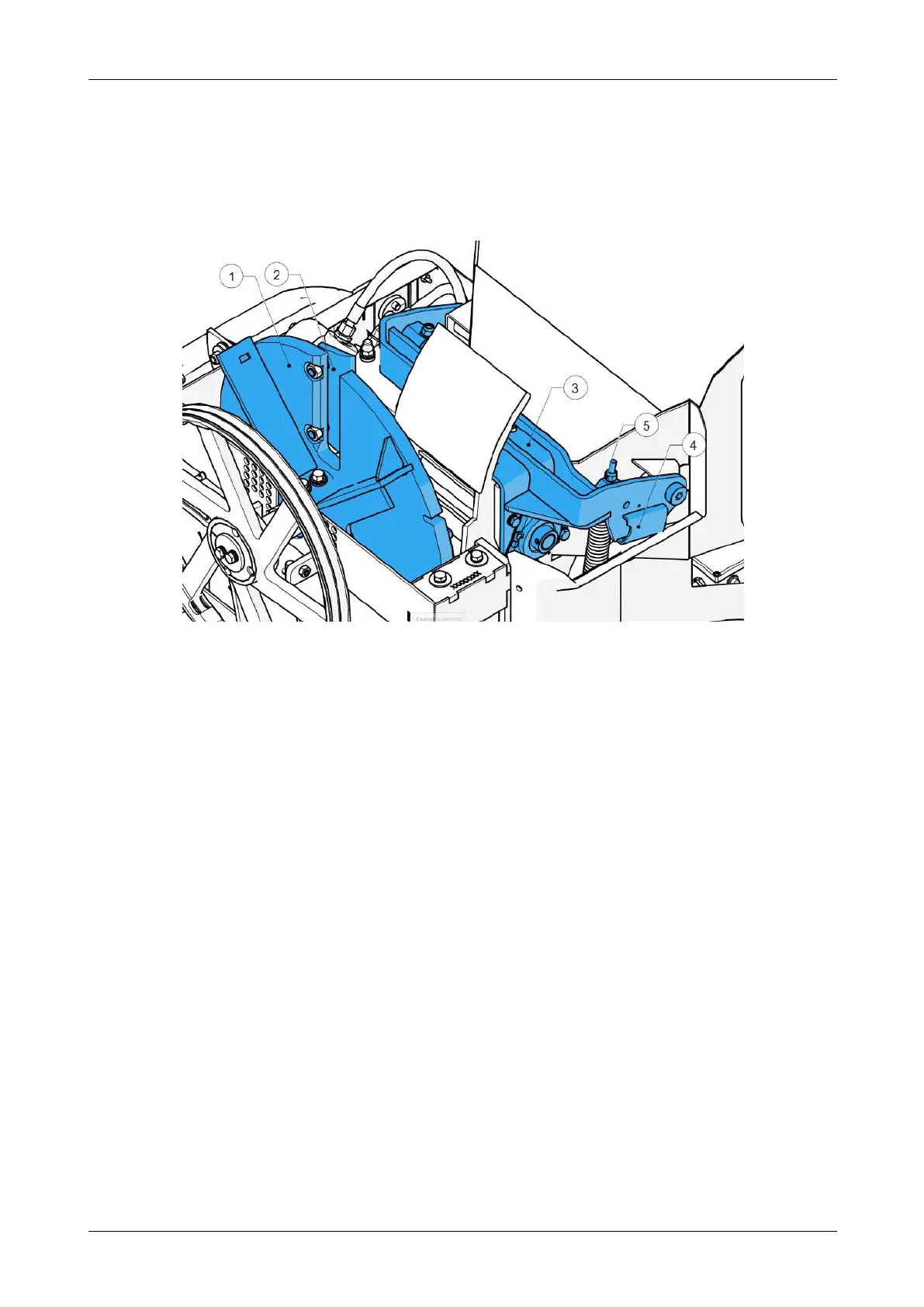

Figure 5 - Chipping chamber
Chapter 1: Machine Overview
Redwood Global Ltd - ST6P
Operator and Maintenance Manual
23 12-00-001 v4.0
