6. Wind the jockey wheel handle clockwise to lower the tow head onto the ball
hitch.
7. Release the tow head handle and continue to wind the jockey wheel handle
clockwise. The tow head should snap into place on the ball hitch. If it doesn’t,
repeat the previous two steps.
NOTICE
The ball hitch is fully inserted and secure when the handle returns to the
horizontal position and the green indicator is visible.

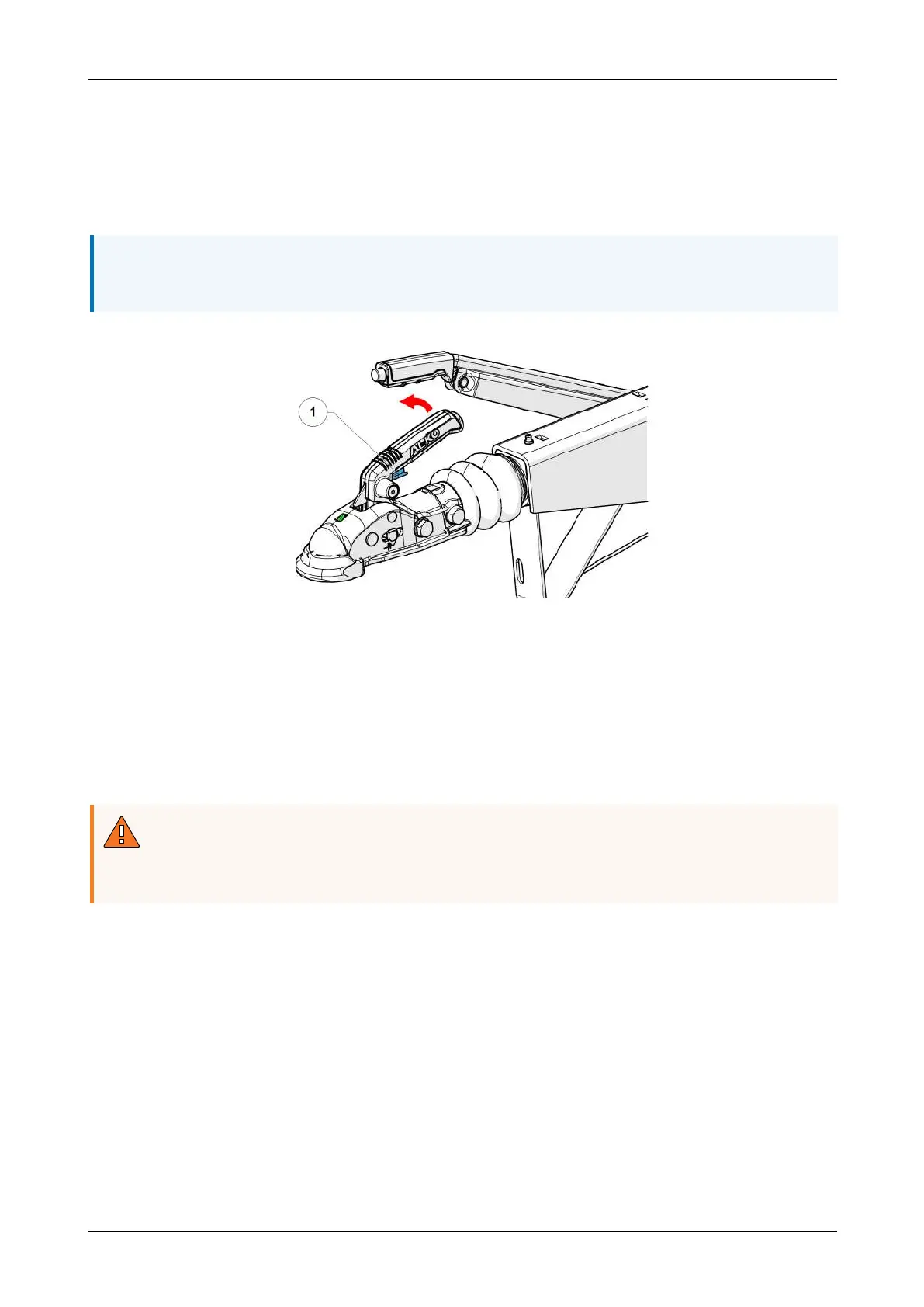

Figure 19 - Tow hitch handle
8. Wind jockey wheel up until fully retracted and the jockey wheel frame is seated
in its notch on the stem. The machine’s weight should be fully on the vehicle.
9. Release the jockey wheel clamp and slide the jockey wheel assembly fully up,
then tighten the clamp.
10. Check that the wear indicator (1, Figure 20) is on the positive side of the limit
mark (2, Figure 20).
WARNING
If the wear indicator is on the negative side of the limit mark, either the machine
tow hitch or vehicle ball hitch have worn past their safe limit. Correct the defect
before you tow the machine.
Chapter 3: Transportation and storage
Redwood Global Ltd - ST6P
Operator and Maintenance Manual
47 12-00-001 v4.0
