FORST ST6P - Figure 2 - Exterior Components, Left-Hand Side View

Redwood Global Ltd - ST6P
Operator and Maintenance Manual
Chapter 1: Machine Overview
1 Jockey wheel handle 6 Stop bar
2 Hopper 7 Hopper tray
3 Battery 8 Safety curtains
4 Number plate 9 Emergency stop
5 Hopper tray buttons 10 Lifting eye
1 Jockey wheel handle 6 Red stop bar
2 Hopper 7 Hopper tray
3 Battery 8 Safety curtains
4 Number plate 9 Emergency stop
5 Hopper tray buttons 10 Lift point

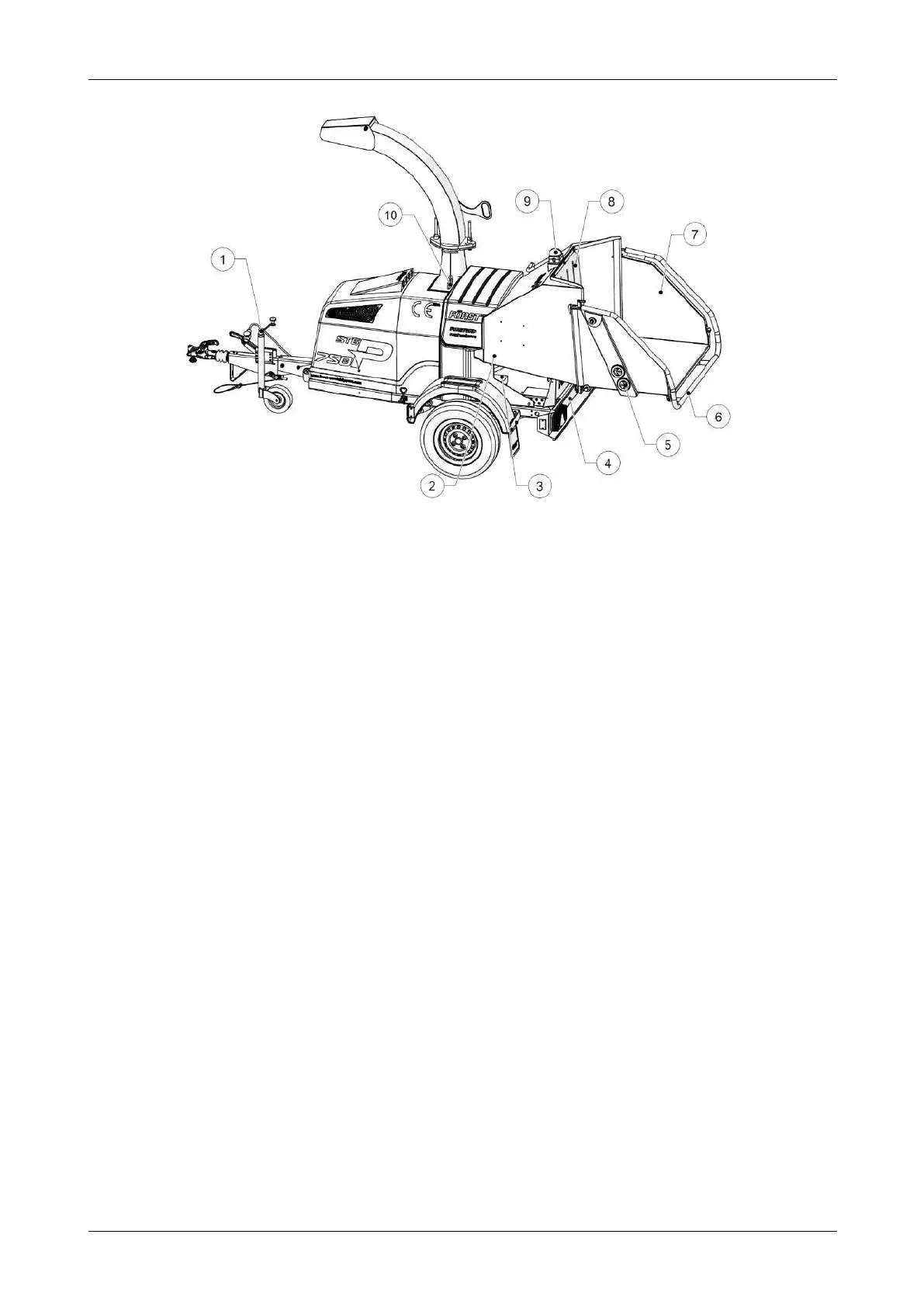

Figure 2 - Exterior components, left-hand side view
12-00-001 v4.0 20
