FORST ST6P - Figure 24 - Remove Clamp and Nut; Figure 25 - Chute Rear Rotation Clamp

5. Remove both the clamp and the clamp nut and put them somewhere safe.

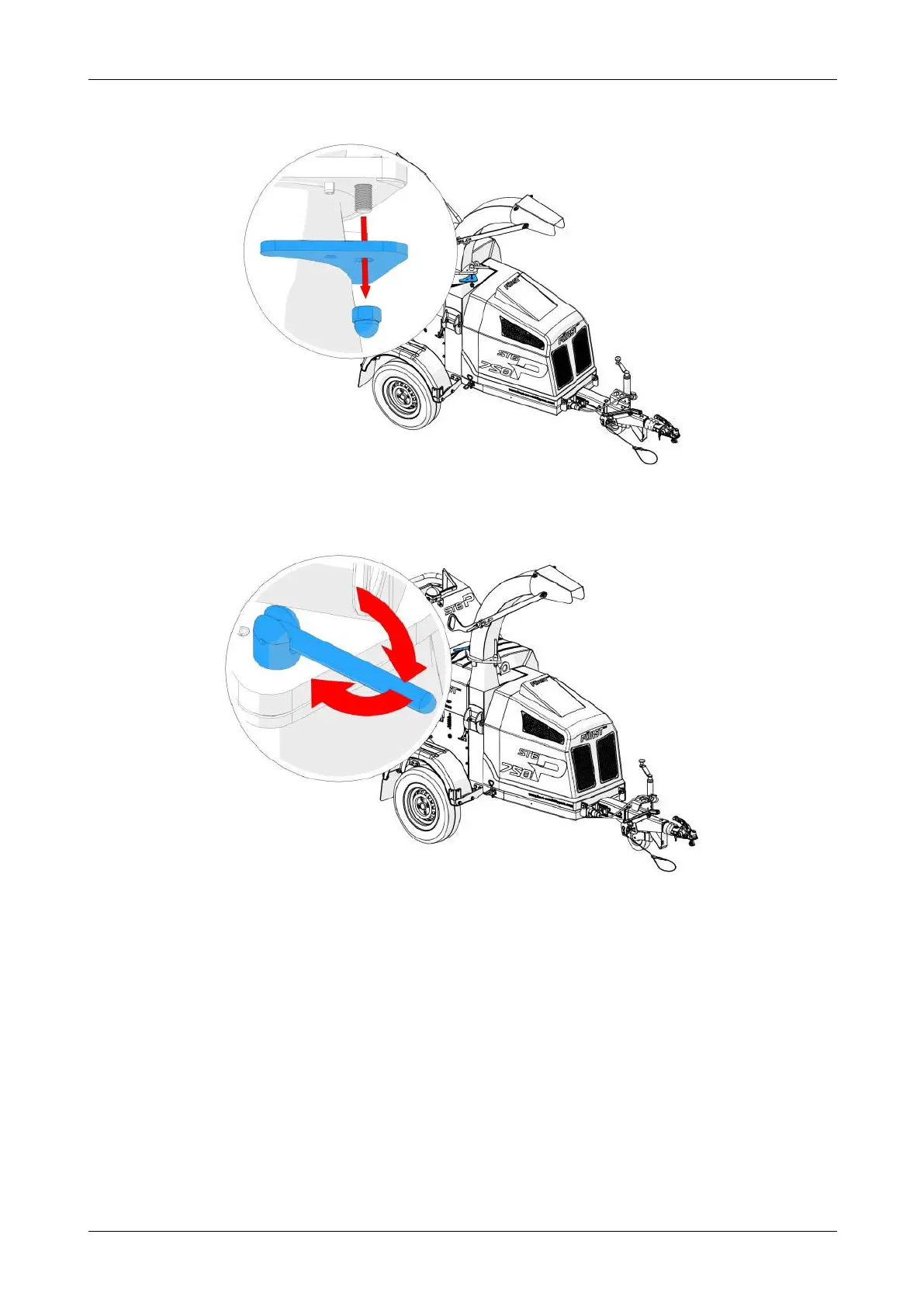

Figure 24 - Remove clamp and nut
6. Loosen the rear clamp by rotating the clamp lever anti-clockwise.
Figure 25 - Chute rear rotation clamp
Chapter 3: Transportation and storage
Redwood Global Ltd - ST6P
Operator and Maintenance Manual
53 12-00-001 v4.0
