4.5 FEED ROLLER SPEED ADJUSTMENT
The feed roller speed can be adjusted to suit the material being chipped, refer to Figure
35.
1. Turn dial to align number with paint spot.
2. Set the feed roller speed so that the No-Stress operates as little as possible, this will
give the highest throughput.
3. When feeding Leylandii or leafy material, set the feed roller speed to 4.5.
4. Control valve speed adjustment.
Position indicated by paint spot. (1, Figure 35):
l
0 = Minimum
l
10 = Maximum

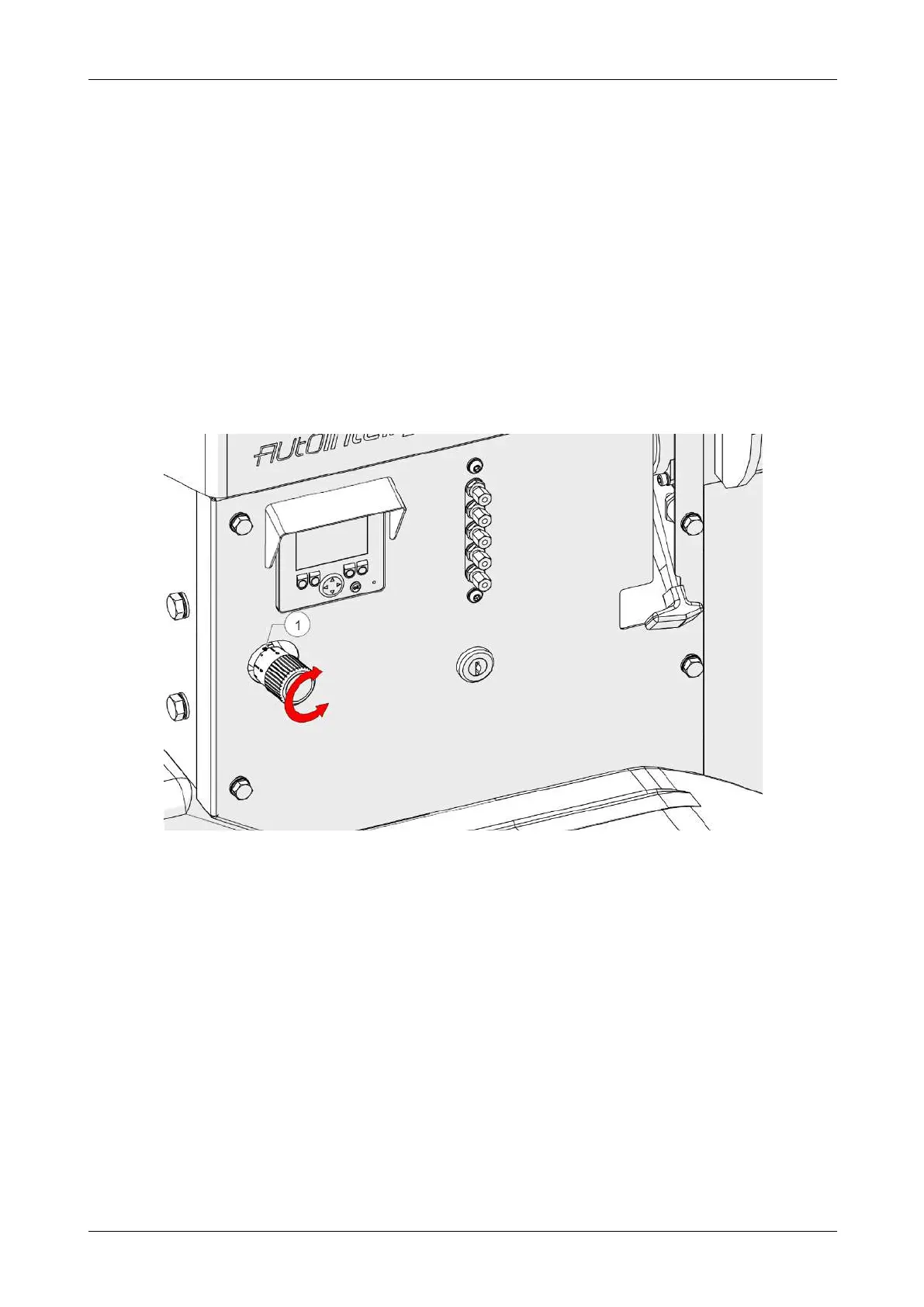

Figure 35 - Feed roller speed adjustment
Chapter 4: Operation
Redwood Global Ltd - ST6P
Operator and Maintenance Manual
65 12-00-001 v4.0
