FORST ST6P - Figure 59 - Anvil Removed; Figure 60 - Anvil Seat

Redwood Global Ltd - ST6P
Operator and Maintenance Manual
Chapter 5: Maintenance

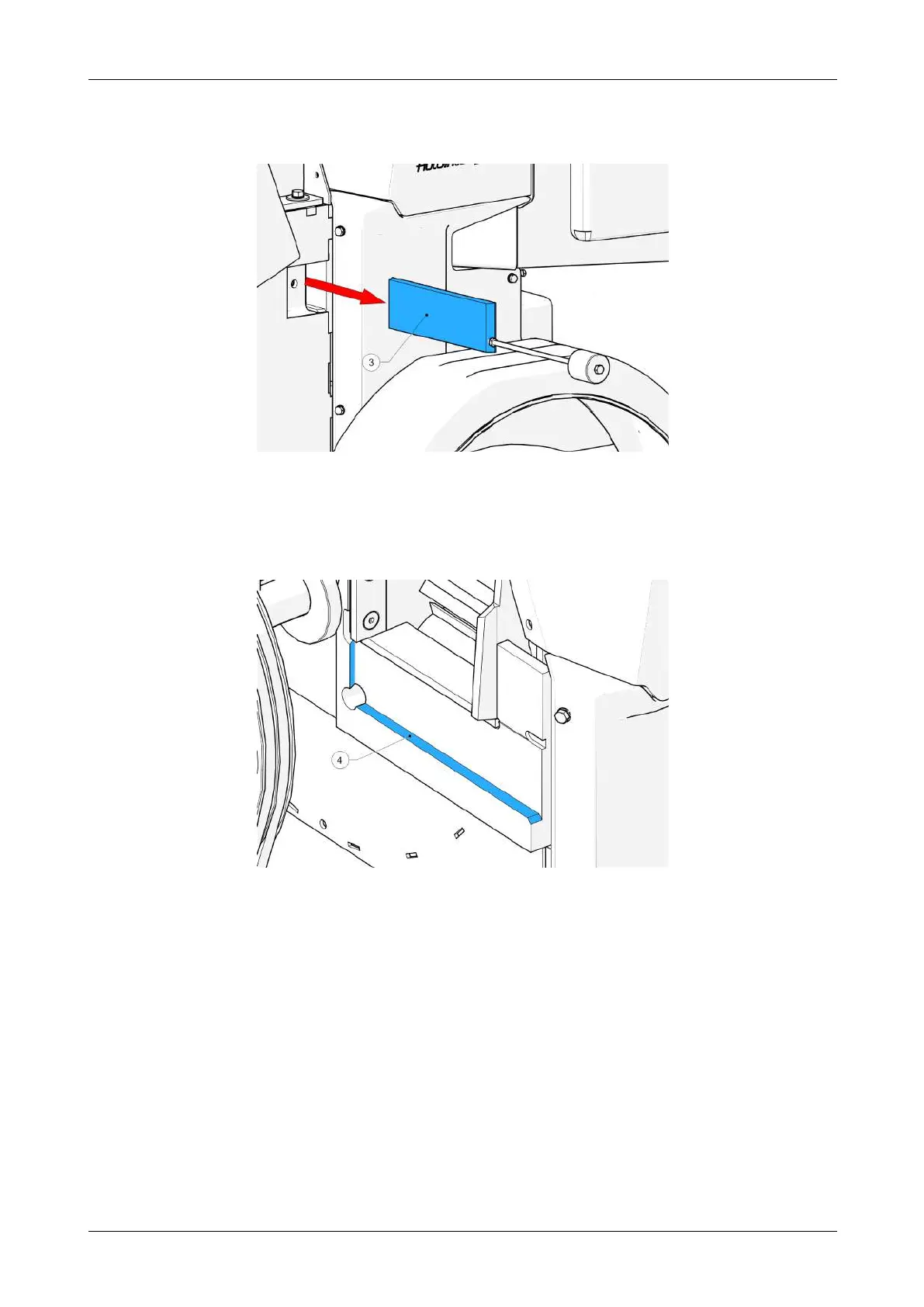

10. Using the slide hammer, extract the anvil (3, Figure 59) through the side of the
chamber.
Figure 59 - Anvil removed
11. Check the anvil seats inside the chamber for damage or wear.
12. Make sure the anvil seats are free from dirt and debris before inserting anvil.
(4, Figure 60).
Figure 60 - Anvil seat
13. Make sure you:
a. Clean all surfaces of the anvil.
b. Inspect the anvil for any damage that would prevent further use.
c. If using the same anvil turn it 180° from its previous position.
14. Insert the anvil through the side of the chamber, making sure that the anvil stays
tight to the bed plate (5, Figure 61).
