Operator and Maintenance Manual
Chapter 3: Transportation and storage
3.5 REMOVING THE DISCHARGE CHUTE
DANGER
Do not remove the rear chute clamp when removing the chute. Doing so will
result in the chute falling.
The discharge chute only needs to be removed for storage and transportation purposes.
Under no other circumstances should the discharge chute be removed.
1. Stop the engine.
2. Remove the key from the ignition and keep in a safe place.
3. Rotate the discharge chute so that is not hanging over the machine.
►
Refer to "Opening the chipping chamber cover" on page 79
4. Loosen the front chute rotation clamp by rotating the clamp lever anti-clockwise.

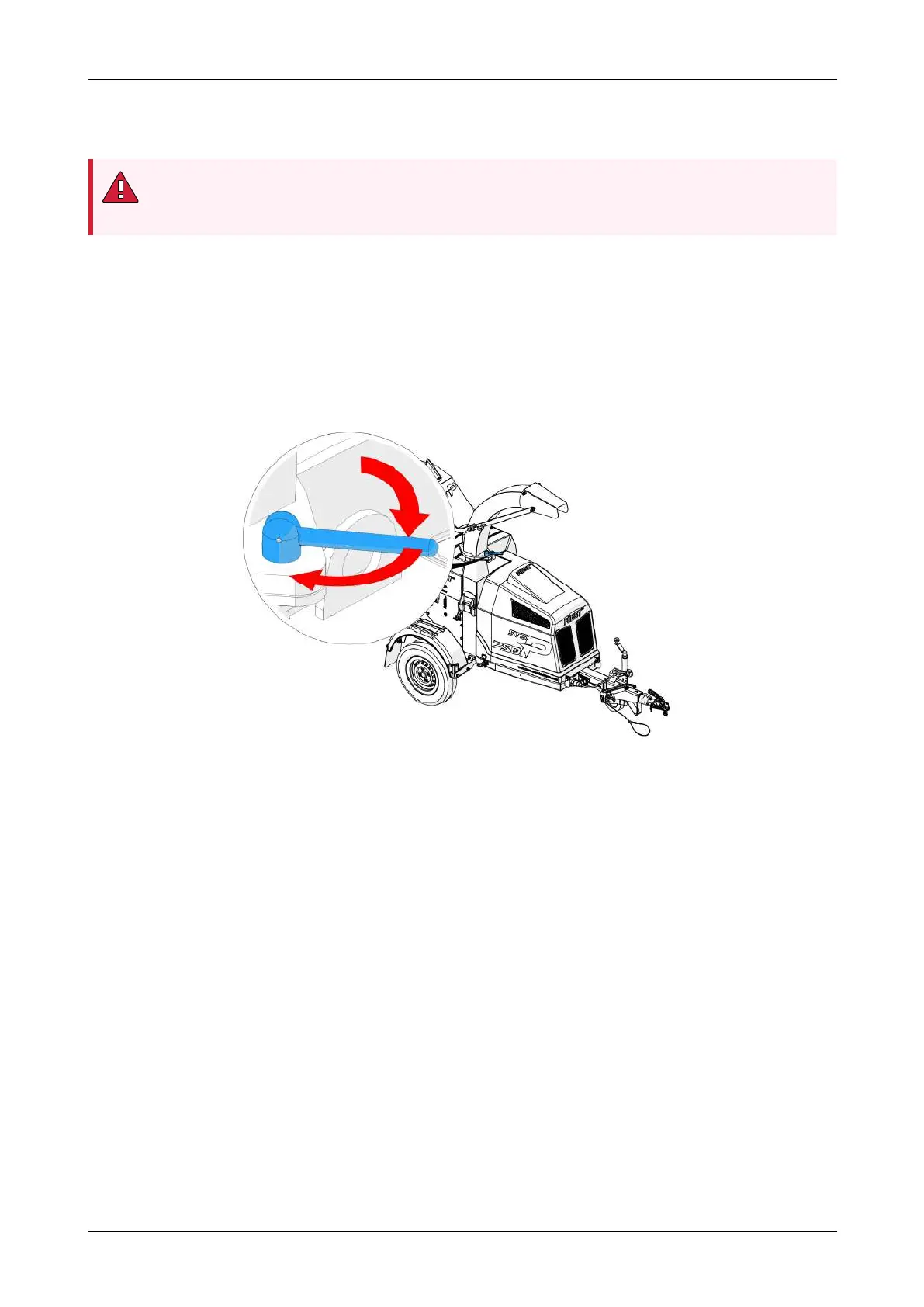

Figure 23 - Chute front rotation clamp
12-00-001 v4.0 52
