Redwood Global Ltd - ST6P
Operator and Maintenance Manual
Chapter 4: Operation
2. Disengage both hopper tray locking latches (1, Figure 28).

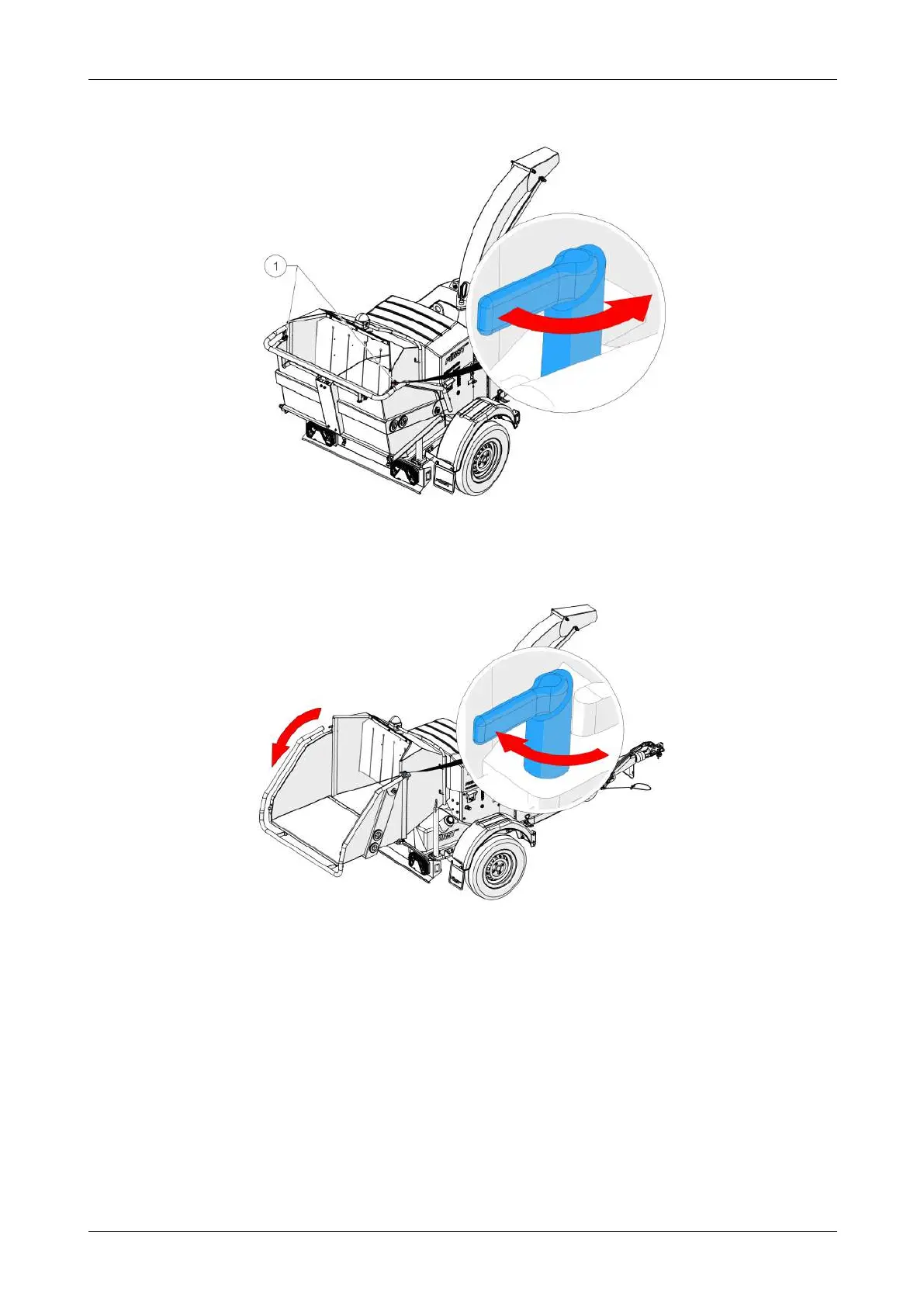

Figure 28 - Hopper tray locking latch
3. Lower the hopper tray in a controlled manner (do not drop the hopper tray).
4. Engage the locking latches, locking the hopper tray in the down position.
Figure 29 - Hopper tray locked down
5. Rotate the discharge chute to direct woodchip in a safe direction to avoid injury
or property damaged.
6. You are now ready to start the engine.
12-00-001 v4.0 60
