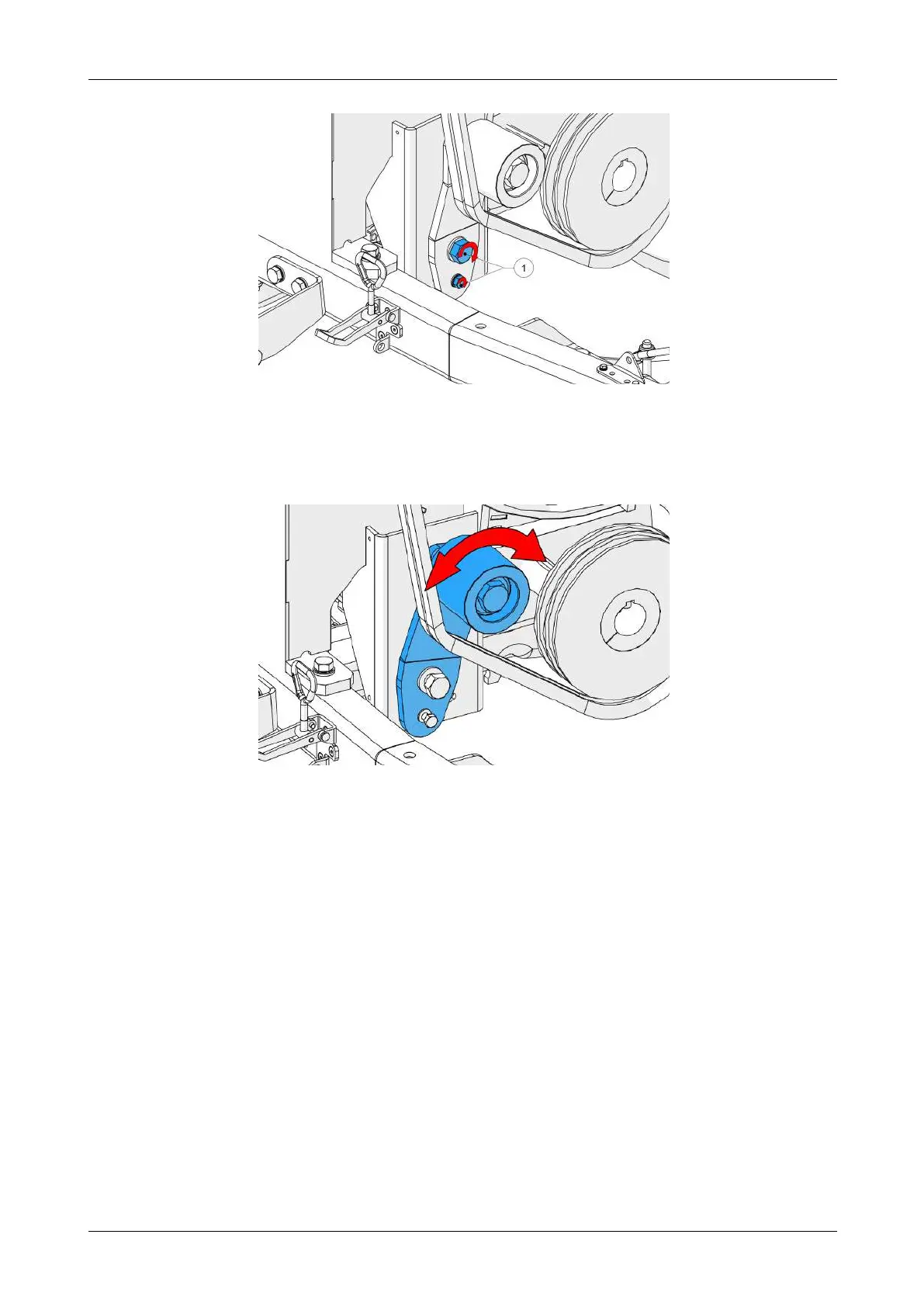

Figure 65 - Loosen main tension bolt
b. With the bolts loosened, use a suitable tool to move the belt tensioner.
Pressing against the belt will increase the tension and moving away from
the belt reduces the tension.
Figure 66 - Adjust tension
6. Once the tension has been adjusted, close the bonnet.
7. Start the engine.
►
Refer to "Starting the Machine" on page 61
8. Allow the engine to idle for 30seconds.
9. Turn the engine off and remove the key from the ignition switch.
10. Open the bonnet.
11. Check the main belt tension.
If the tension is incorrect, adjust the tension again.
Chapter 5: Maintenance
Redwood Global Ltd - ST6P
Operator and Maintenance Manual
93 12-00-001 v4.0
