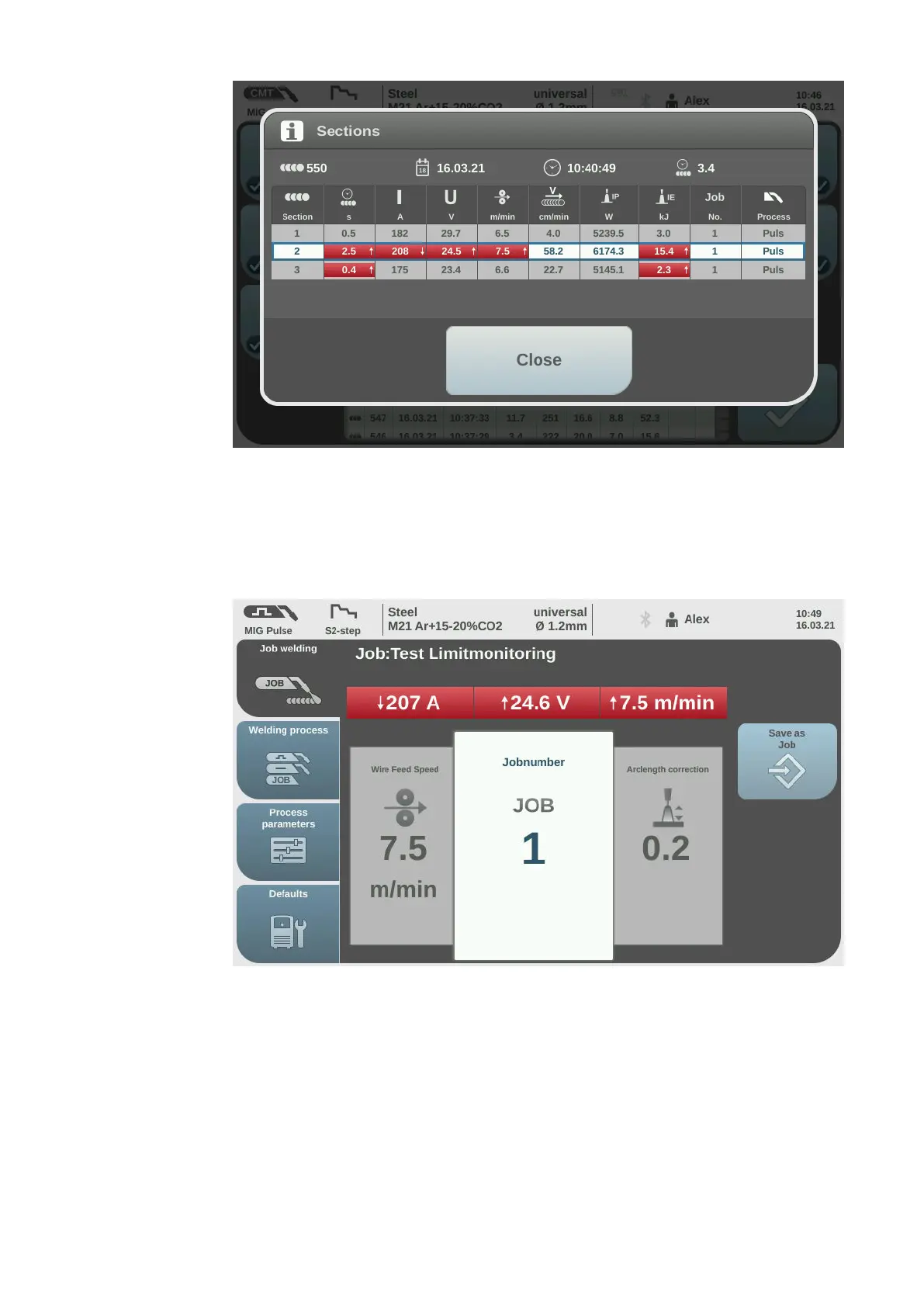

Display of the individual sections in the logbook
Additional information on reactions of the power source to a warning:
-
The power source indicates whether the limits have been overrun or undershot
-
The overrun or undershoot is displayed until the end of welding
-
The welding parameters affected by exceeding or falling below the limits are marked
in red
Display of the warning with the welding parameters
74
73
75
