(3) Indication and editing
The indication and editing methods for para. are as follows.
■ Value indication

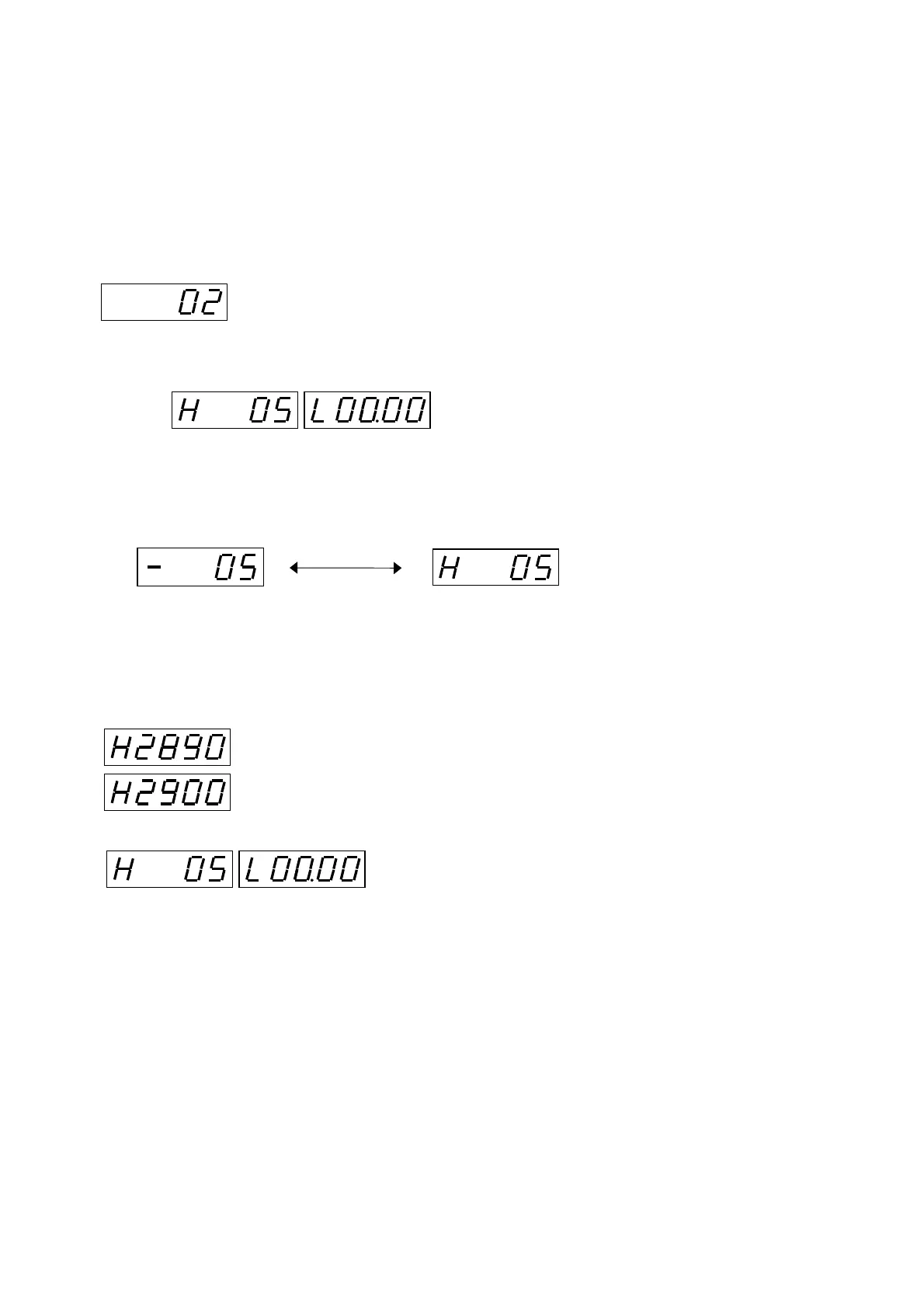

A value of unsigned 5 digits or signed 4 digits or less is displayed as it is.
Left example shows a value of 2 digits is selected.
For clearly indicating the number of digits of a selectable value, zeroes of other columns are suppressed.
A signed value of 5 digits or more is preceded by "H" or "L".
The above example shows a value has 6 digits. (The value will be 500.00.) For interchanging the H side and L side, press the MODE
key holding down the SHIFT key.
■ Sign indication
In case of data with minus sign, "H" (or "L") and "-" blink alternately.
In case of data with plus sign, "H" (or “L”) indication blinks.
Alternately lights
■ Editing a value
After reading a para., 1 digit or sign blinks at about 1 [s] intervals, prompting you to change that part.
Pressing the ∧ key or ∨ key changes the value. As for the sign, pressing the ∧ key or ∨ key while the cursor is located at "H"
selects a plus sign (H and blank) or a minus sign (H and -).
If 9 is followed up by 0, the value at the immediately upper place increases by 1. If 0 is followed down by 9, the value at the immediately
upper place decreases by 1.
Example : 9 is followed up by 0 to give 2900.
Note that there is no borrow nor carry from H side to L side or reversely.
The shifting order is as follows.
(2) (3) (1) (4) (5)
(1) Reading a para. allows to change the LSD(*) of H side.
(2) Shifting allows to change the sign.
(3) Shifting locates the cursor to the MSD(*) of H side. Shifting repeatedly goes to the right and then sequentially circulates within the
display range of H side.
(4) To jump from the H side to the L side, press the MODE key holding down the SHIFT key. On the L side, the MSD can be changed first.
(5) Each press of the SHIFT key moves the cursor to the right. The LSD is followed by the MSD within the L side.
■ Storing the value
Holding down the ENT key for at least 1 [s] stores the value, blinking all digits simultaneously 3 times. The stored value remains displayed.
Pressing the ESC key resumes the para. selecting screen.
■ Value beyond specified range
A value can be inputted within the range from minimum to maximum specified for each para.
A value beyond the specified range cannot be inputted.
(*) LSD : Least significant digit MSD : Most significant digit
Example : Data with minus sign
(H side)
