Fuji Electric Faldic-a RYS-R Series User Manual

MHT260a (Engl.)1-5
1.3 Functions
The FALDIC-α series has 3 types of control function for particular applications.
(1) RYS-V type : Pulse train/speed control (velocity)
Maximum input frequency 500 [kHz]
Rotates according to pulse train from host control equipment, or
speed command from encoder or variable resistor.
The upper level interface has :
・DI/DO speed (minimum DI/DO),
・SX bus,
・Open network, etc.

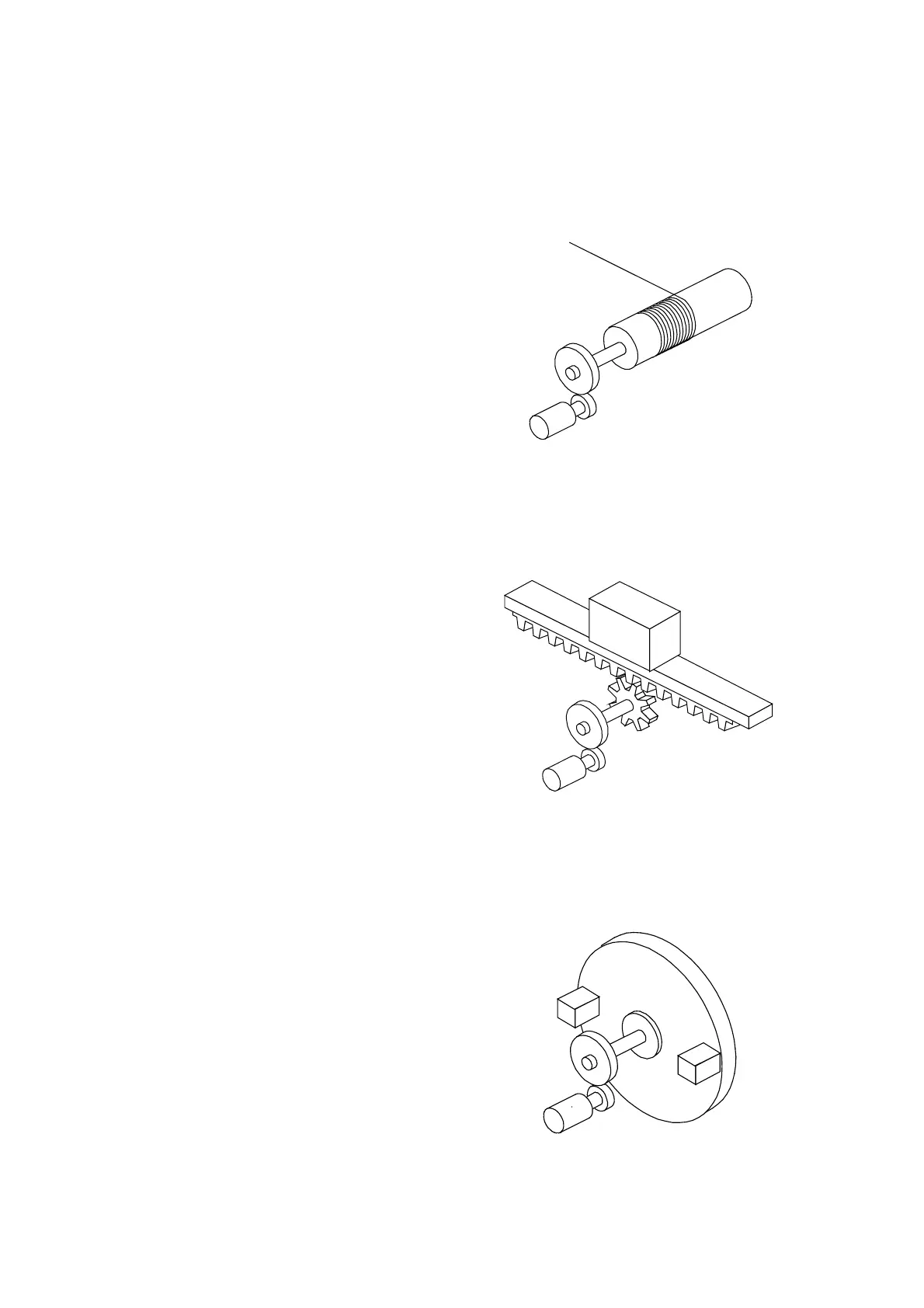

(2) RYS-L type：
：：
：Linear positioning system (linear motion)
Maximum command value ± 79,999,999
The amplifier can compose a linear positioning system,
combined with ball-screw, timing belt, rack and pinion or other
mechanisms.
As positioning data, 99 sets (points) of position, current
(present) position output, immediate positioning, M-code
output etc. can be registered.
The upper level interface has：
・DI/DO position (expanded DI/DO),
・SX bus,
・T-link,
・Open network, etc.
(3) RYS-R type：
：：
：Rotation indexing system (rotation)
Maximum indexing number 30000
The amplifier can compose a rotation indexing system,
combined with ATC, tool magazine, loader/unloader, etc. or
other mechanisms.
The rotation indexing system is usable for shorted route control,
2nd origin, one-point halt, single-direction infinite rotation, etc.
The upper level interface has：
・DI/DO position (expanded DI/DO),
・SX bus,
・T-link,
・RS-485,
・Open network, etc.
