MHT260a (Engl.)4-9

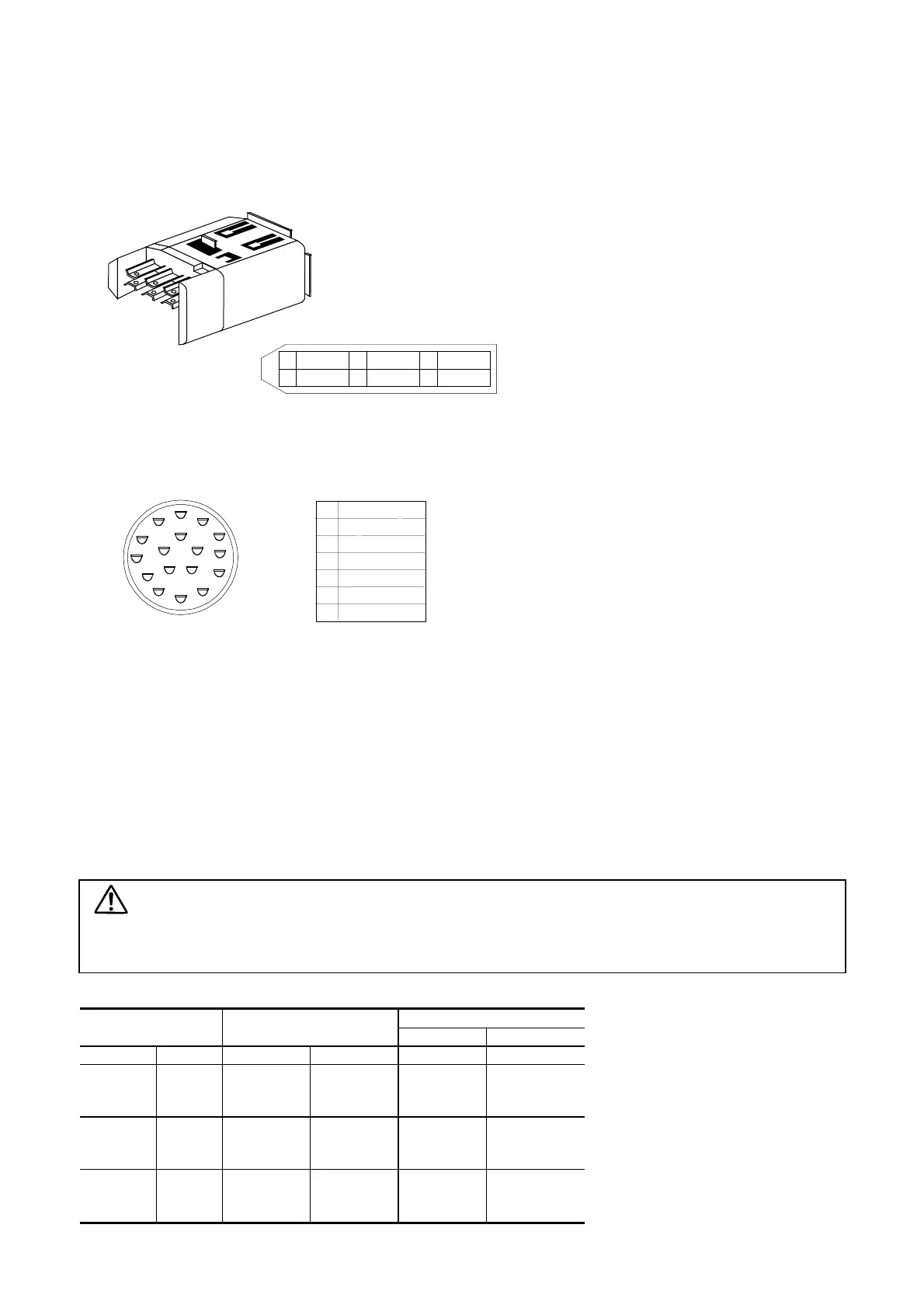

(ii) Wiring to motor • View of housing wiring side
(b) 1 [kW] and above (GYC/GYS type motor)
(c) Wiring cable
If the optional pulse encoder wiring cable is not used, use wiring with the following cable or equivalent.
• Cross-link polyethylene insulated, vinyl sheath cable :
AWG No.25 / 2P+AWG No.23/2C(*), (twisted-pair cable), RMCV-SB (UL2464) type
The wiring length should be within 20[m].
• Cross-link polyethylene insulated, vinyl sheath cable :
AWG No.25 / 2P+AWG No.16/2C(*), (twisted-pair cable), RMCV-SB (UL2464) type
The wiring length should be within 50 [m].
(*) 2P (pairs), 2C (core) twisted-pair cable of different wire sizes. Use the enlarged sectional area of wires for power supply.
(d) Connection
It is not allowed to extend the wiring distance by connecting two or more cables of short wiring length.
CAUTION
Do not extend the wiring distance by connecting two or more encoder wiring cables.
A voltage drop by contact resistance of connector may stop the operation abruptly.
Remark : The wire size conversion between AWG and [mm] is as follows.
Sectional area
Gauge Diameter
Circular mil mm
2
A W G mm G mil mm CM mm
2
1.4 55.12 1.400 3038 1.539
16 50.82 1.291 2583 1.309
1.2 47.24 1.200 2232 1.131
23 22.57 0.5773 509.4 0.2581
.55 21.65 0.5500 468.7 0.2376
24 20.10 0.5106 404.0 0.2047
.50 19.69 0.5000 387.7 0.1963
25 17.90 0.4547 320.4 0.1623
.45 17.72 0.4500 314.0 0.1590
2ＢＡＴ－4
3 1ＳＩＧ＋5
6
ＢＡＴ＋ Ｐ５
ＳＩＧ－ Ｍ５
Ｃ
Ｄ
Ｊ
Ｇ
Ｔ
Ｓ
Ｈ
Housing : 53988-0611
Shell body clamp : 58302-0600
Mold cover : 53989-0605
Mold cover : 53990-0650
Cable clamp : 58303-0000
Clamp screw (M2x4) : 53982-0009
• View of housing wiring side
1 of connector :
MS3108B20-29S
1 of cable clamp :
MS3057-12A
ＨＰ５
ＧＭ５
ＣＳＩＧ＋
ＤＳＩＧ－
ＴＢＡＴ＋
ＳＢＡＴ－
ＪＳｈｉｅｌｄ
