(2) Speed data (
)
As the speed data, set the moving speed up to the stop position data in speed of motor shaft. The setting range is up to the maximum
speed of motor in 0.01 [r/min] step.
(0.00 [r/min] cannot be selected.)
(3) Timer data (
)
As the timer data, set the timer value after arriving a stop position. The setting range is 0.00 to 999.99 [s] in 0.01 step.
(4) Status (
)
Set various information incidental to positioning data. It can be changed by the ∨ key or ∧ key.
(5) M code ( )
An M code to output by executing the positioning data can be edited. The setting range is 00 to FF in hexadecimal notation. (An arbitrary
value is specified in 1 step.) Each digit is changeable by the ∨ key or ∧ key.
M code simultaneous output

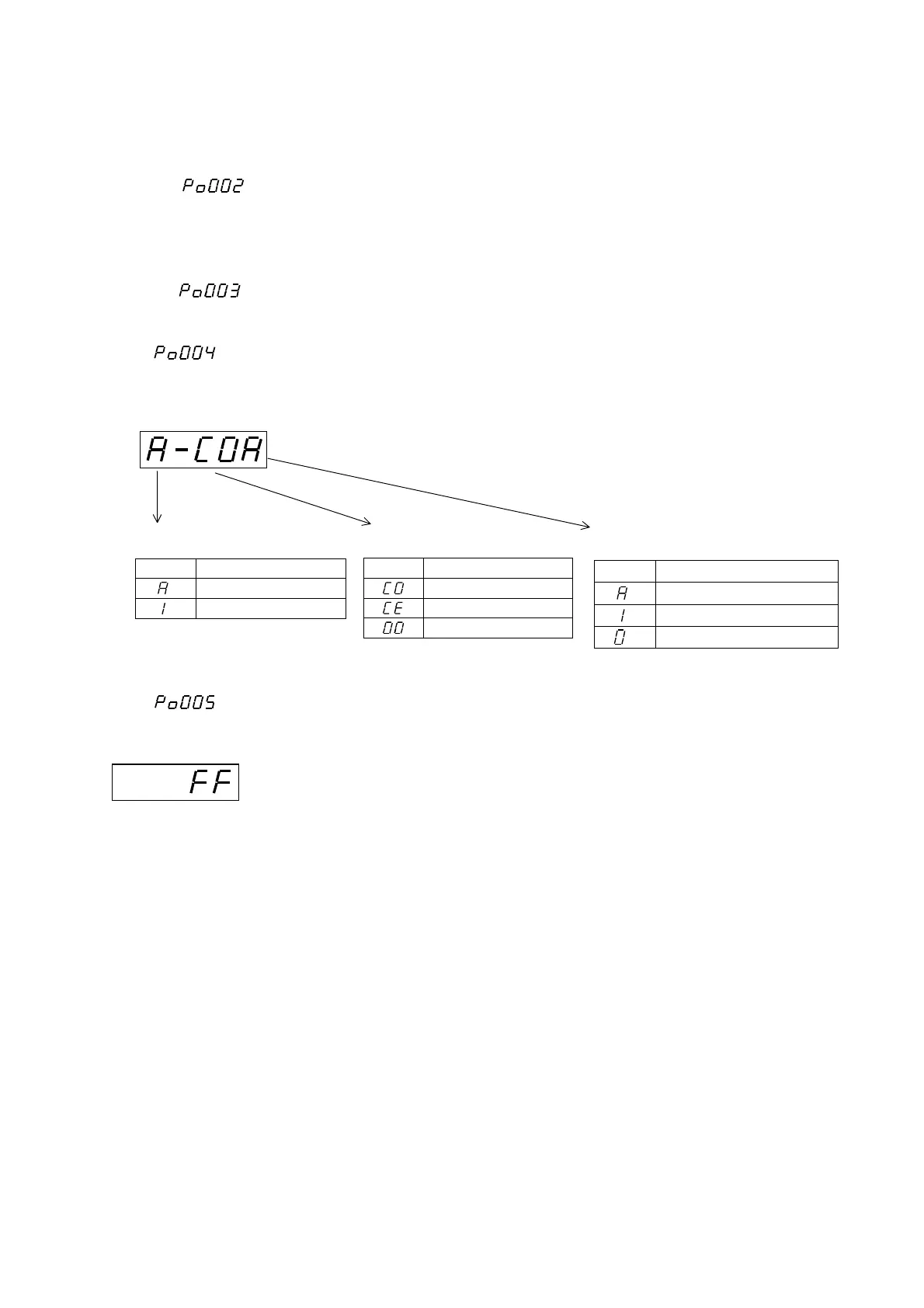

Indication
Setting contents
5th digit
M code later-output
M code no output
Indication
Setting contents
3rd and 4th digit
Data continuation (CO)
Cycle end (CEND)
(Unassigned)
Indication
Setting contents
1st digit
Absolute (ABS)
Incremental (INC)
