Fuji Xerox ApeosPort Print C5570 User Manual

16
1 Before Beginning

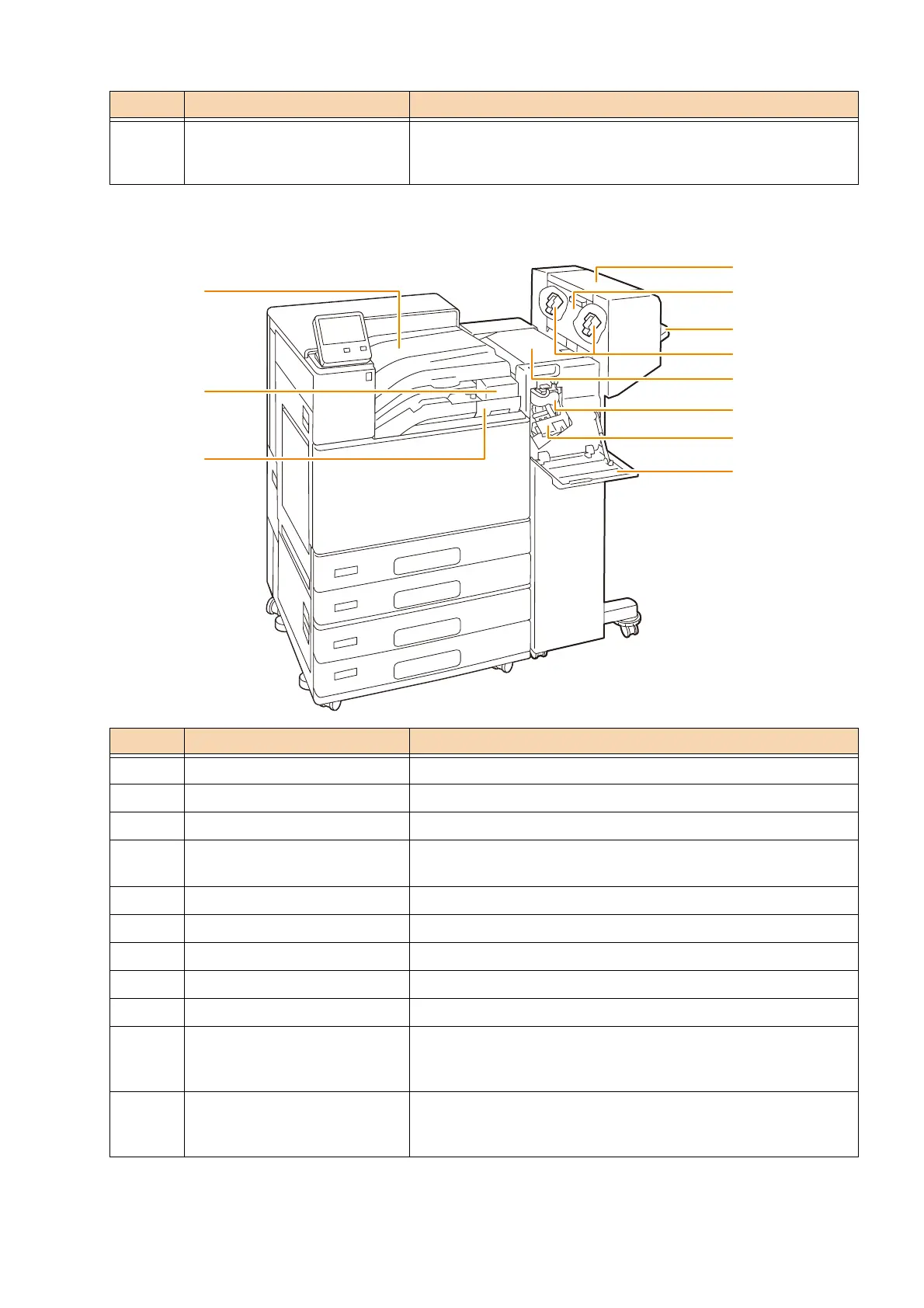

Finisher-B3 (optional)
6 Drum Cartridge Contains photoconductors. When facing the machine, the drum
cartridges starting from the left are black, cyan, magenta, and
yellow.
No. Name Description
1 Booklet maker unit (optional) Staples creased outputs.
2 Booklet maker unit side cover Open this cover when replacing the booklet staple cartridge.
3 Finisher tray Stapled or creased outputs are delivered here.
4Booklet staple cartridge Contains booklet staples. Remove when replacing the booklet
staples.
5 Top cover Open this cover to clear paper jams.
6 Creaser unit Creases outputs in half.
7 Staple cartridge Contains staples.
8 Front cover Open this cover when clearing paper jams or replacing staples.
9 Hole-punch waste container Collects scraps from the puncher.
10 US 2/3 Hole Punch Kit
2/4 Hole Punch Kit
(Both are options)
Hole-punches outputs.
11 Center tray (Finisher connection
section top cover)
Prints are delivered here when they are unable to be delivered to
the finisher tray.
Open the cover upward when clearing paper jams.
No. Name Description
11
10
9
3
4
5
6
7
2
1
8
