Machine Components
45
Product Overview
2

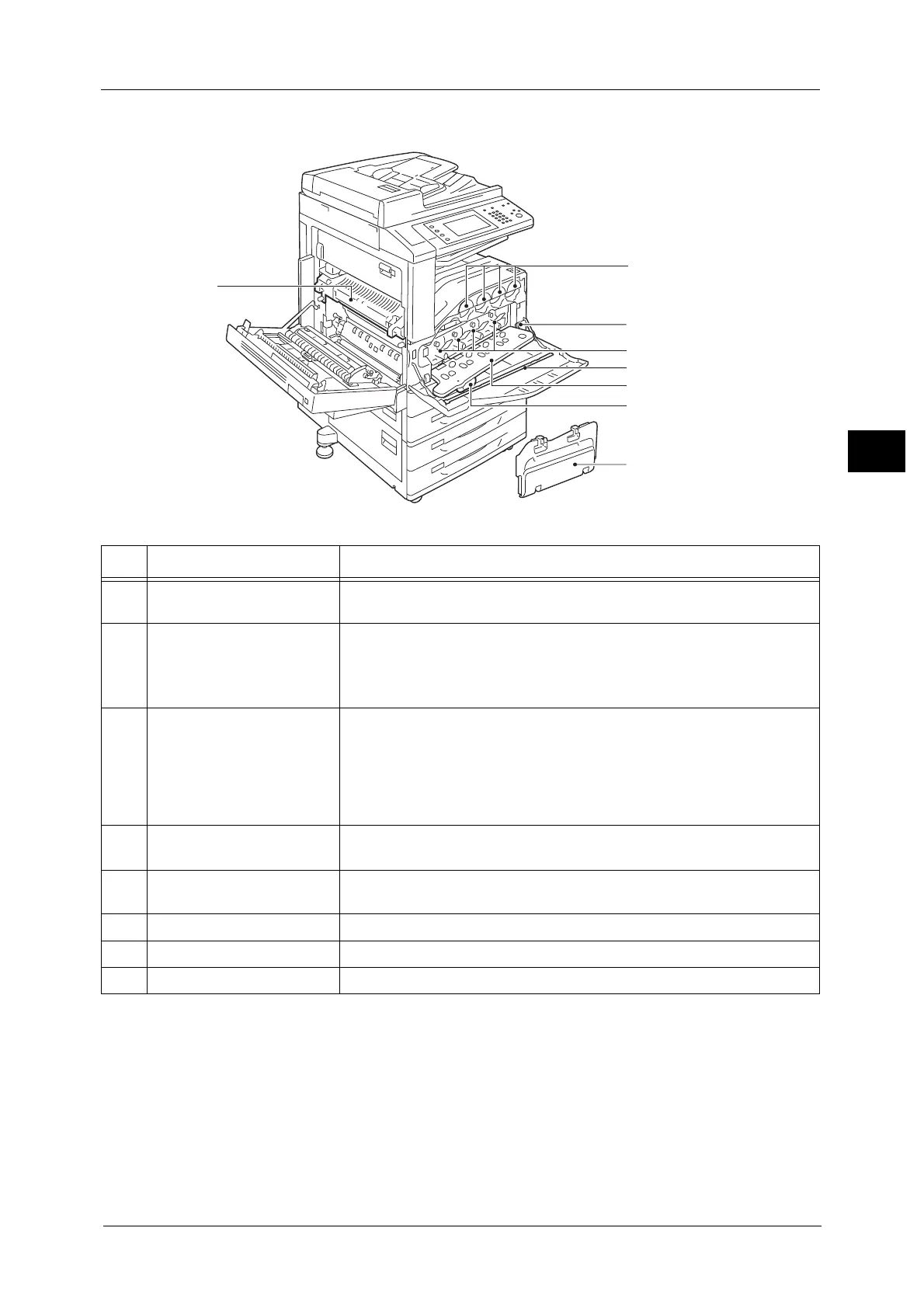

îš„ Inside
No. Component Function
1 Toner cartridges Contains Black (K), Cyan (C), Magenta (M), and Yellow (Y) toner (image
forming powder).
2 Main power switch Switches the main power on/off of the machine. Always follow the
instructions by the system administrator.
Important • Always switch the power off before switching the main power off. Refer
to "Power Source" (P.51).
3 Drum cartridges (R1 (Black),
R2 (Cyan), R3 (Magenta), R4
(Yellow))
Contains photoconductors and development units. Drum cartridges are
arranged in order R1 (Black), R2 (Cyan), R3 (Magenta), R4 (Yellow) from the
left as you face the machine.
Note •The drum cartridge is always marked with R1, R2, R3, or R4. Make sure to
align the drum cartridge R1, R2, R3, or R4 with the corresponding slot.
Otherwise, the drum cartridge cannot be inserted into the machine.
4 Cleaning bar Used for cleaning the exposure unit when density unevenness or stripes
appear on copied or printed outputs due to dirt in the exposure unit.
5 Drum cartridge cover Open this cover when replacing a drum cartridge or cleaning the interior of
the machine.
6 Drum cartridge release lever Unlock this lever when replacing a drum cartridge.
7 Waste toner container (R5) Collects waste toner.
8 Fusing unit (R8) Fuses toner on paper. Do not touch this unit as it is extremely hot.
To Next Page
